Product Information

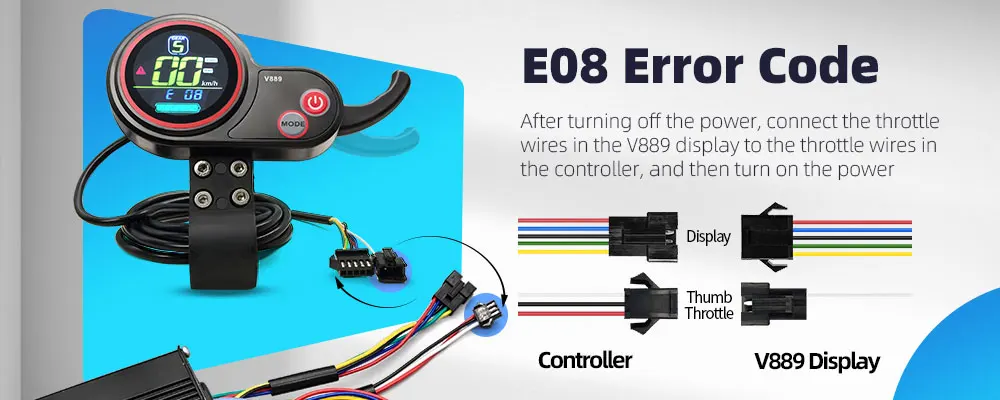

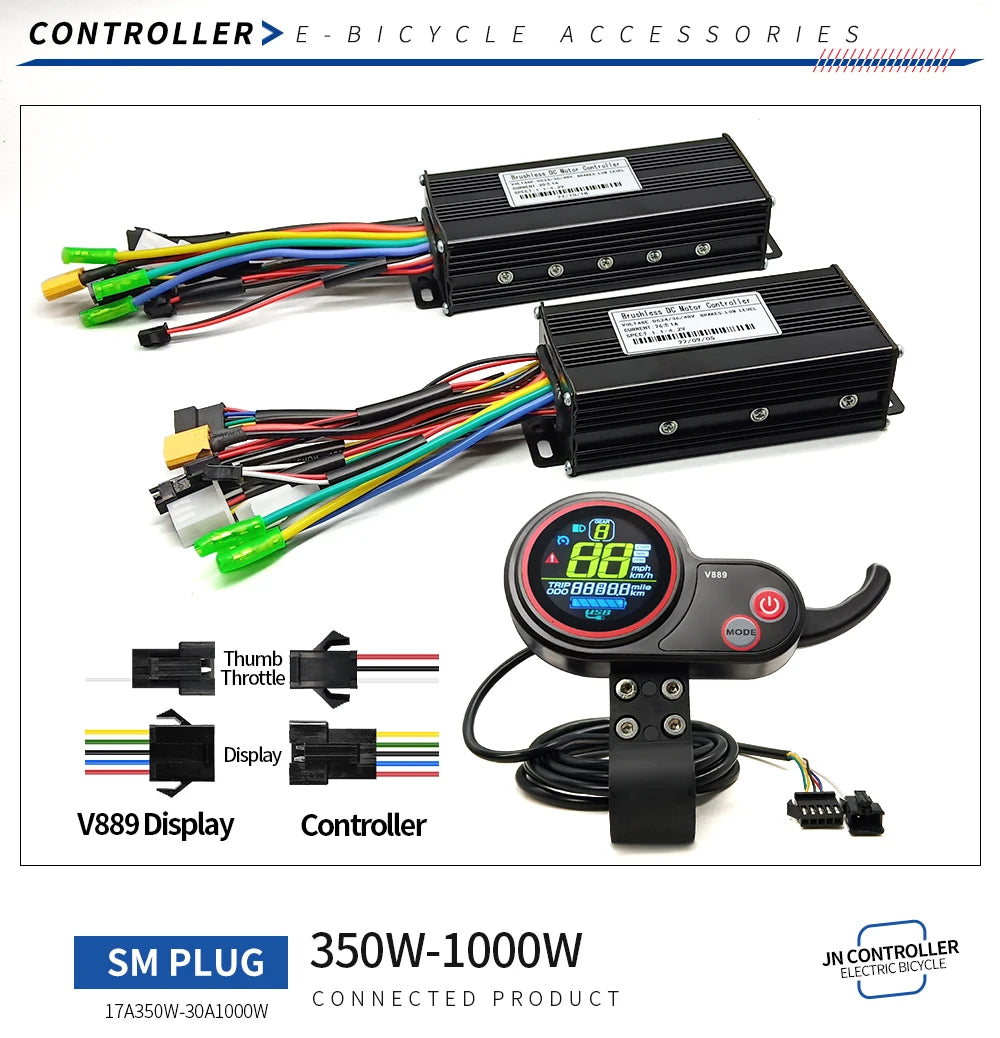

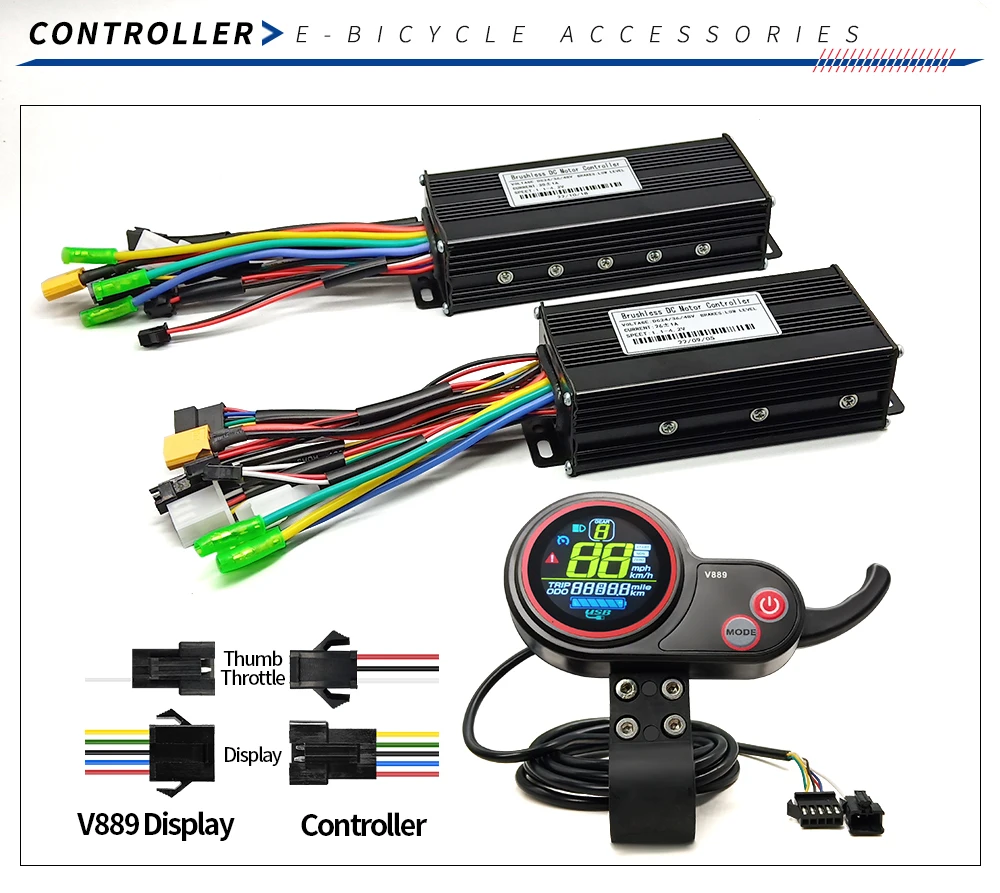

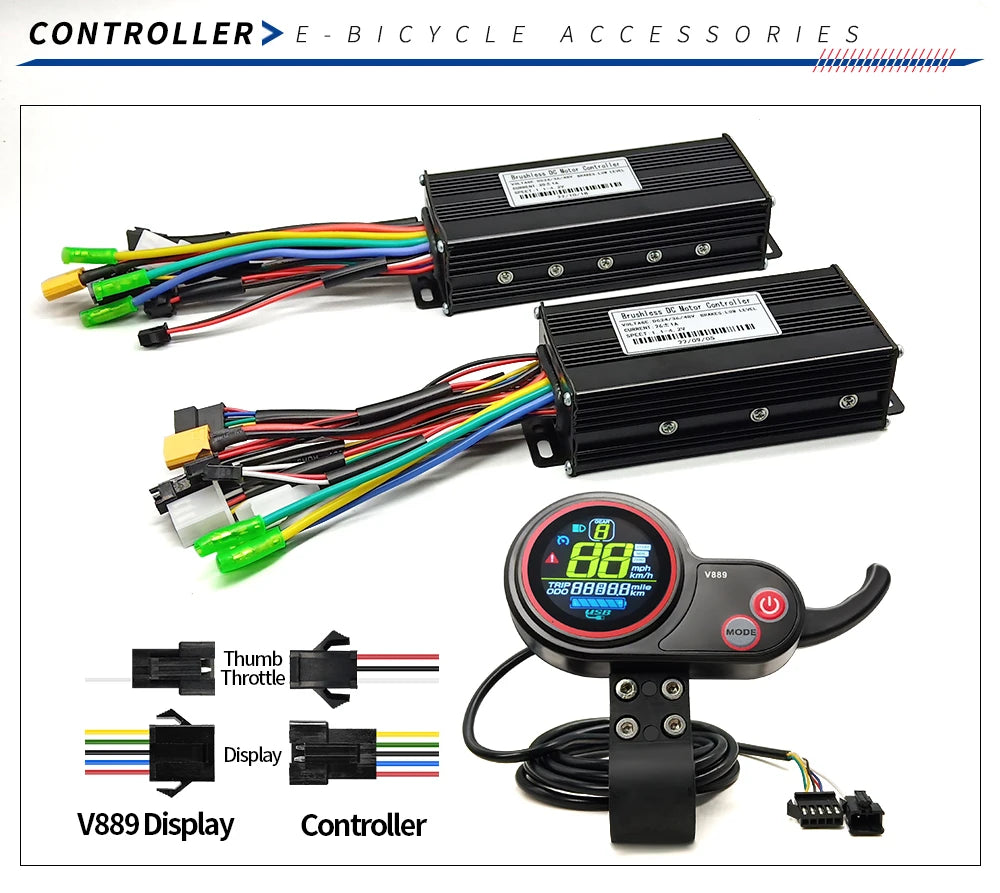

When the E08 code appears on the display, please turn off the power first, connect the throttle cable of the V889 display to the throttle cable of the controller, and then turn on the power and display

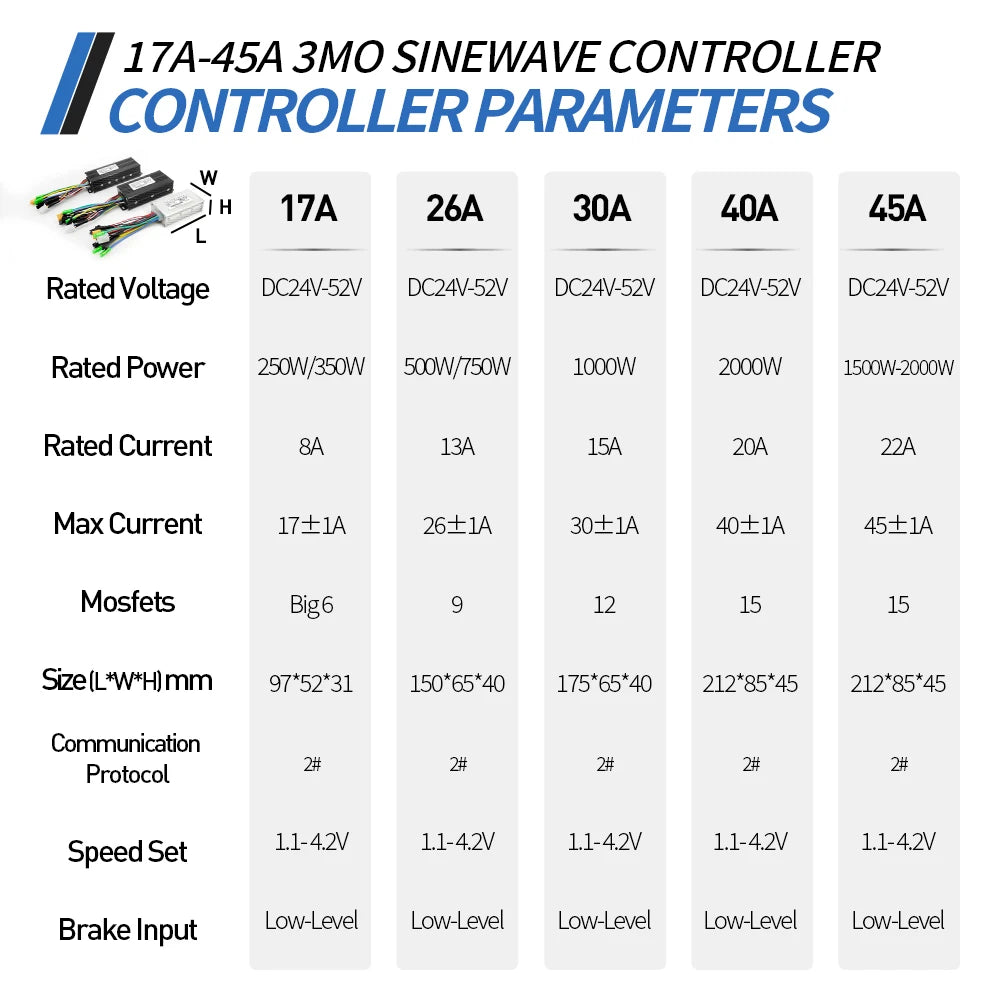

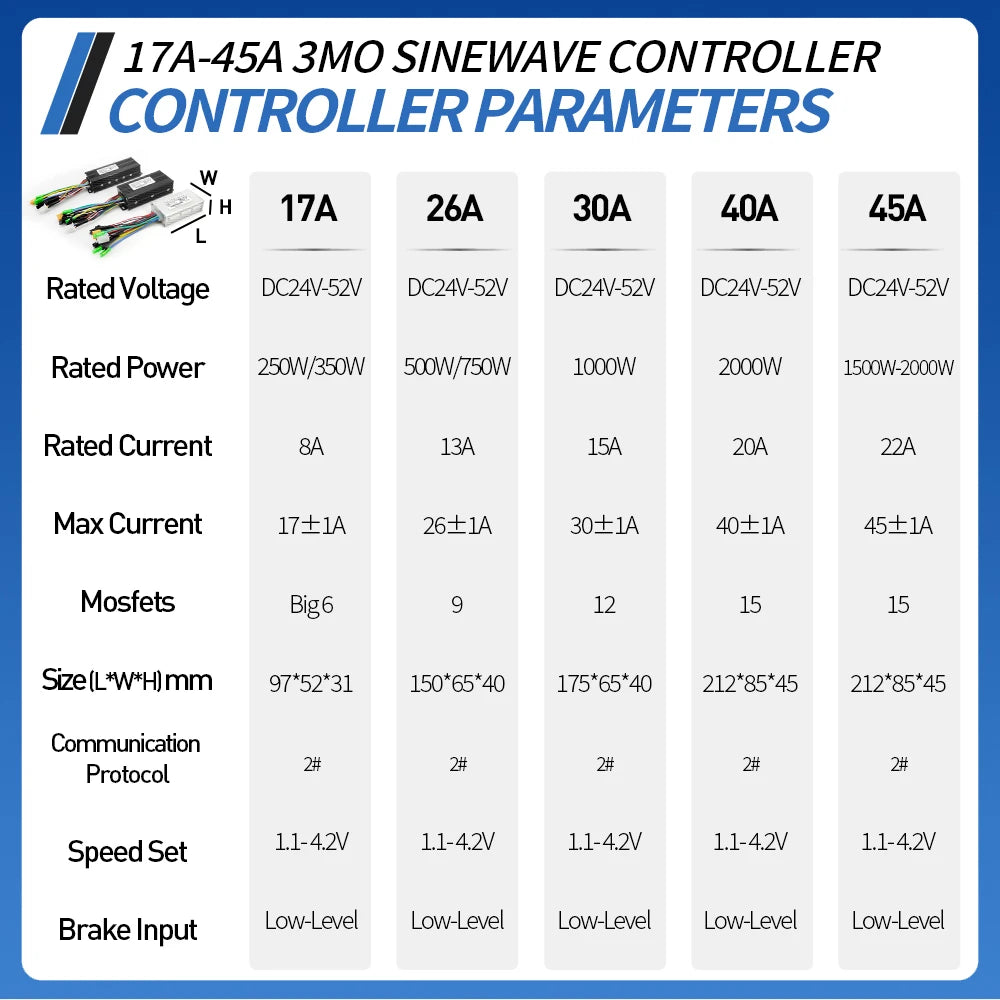

17A Controller

• Type: 17A Controller

• Size(L*W*H):About 97*53*30 mm

• Rated Power:250W/350W

• Speed Set:1.1-4.2V

• Mosfet:Big 6 Mosfet

• Booster:1:5

• Brakes:Low-Level

• Rated Voltage:DC24V/36V/48V/52V

• Compatible with motors with or without Hall

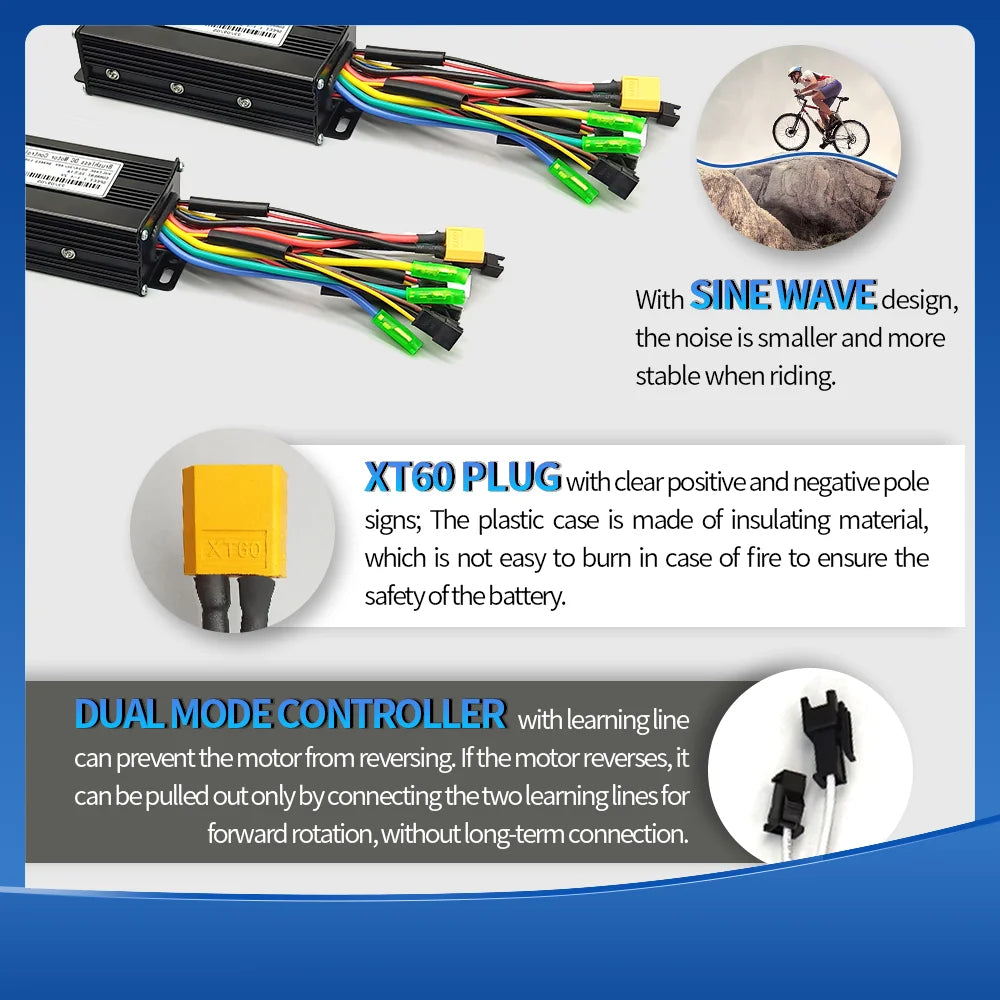

• With motor forward and reverse learning function

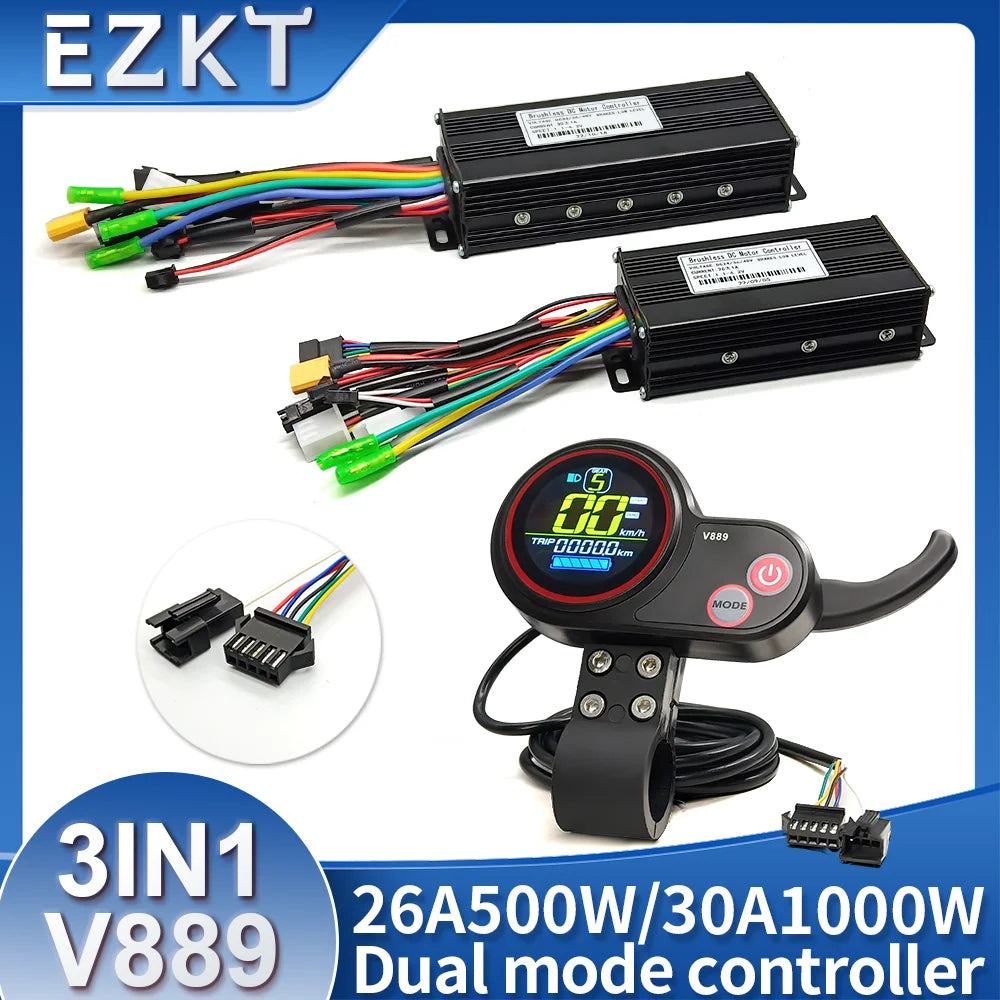

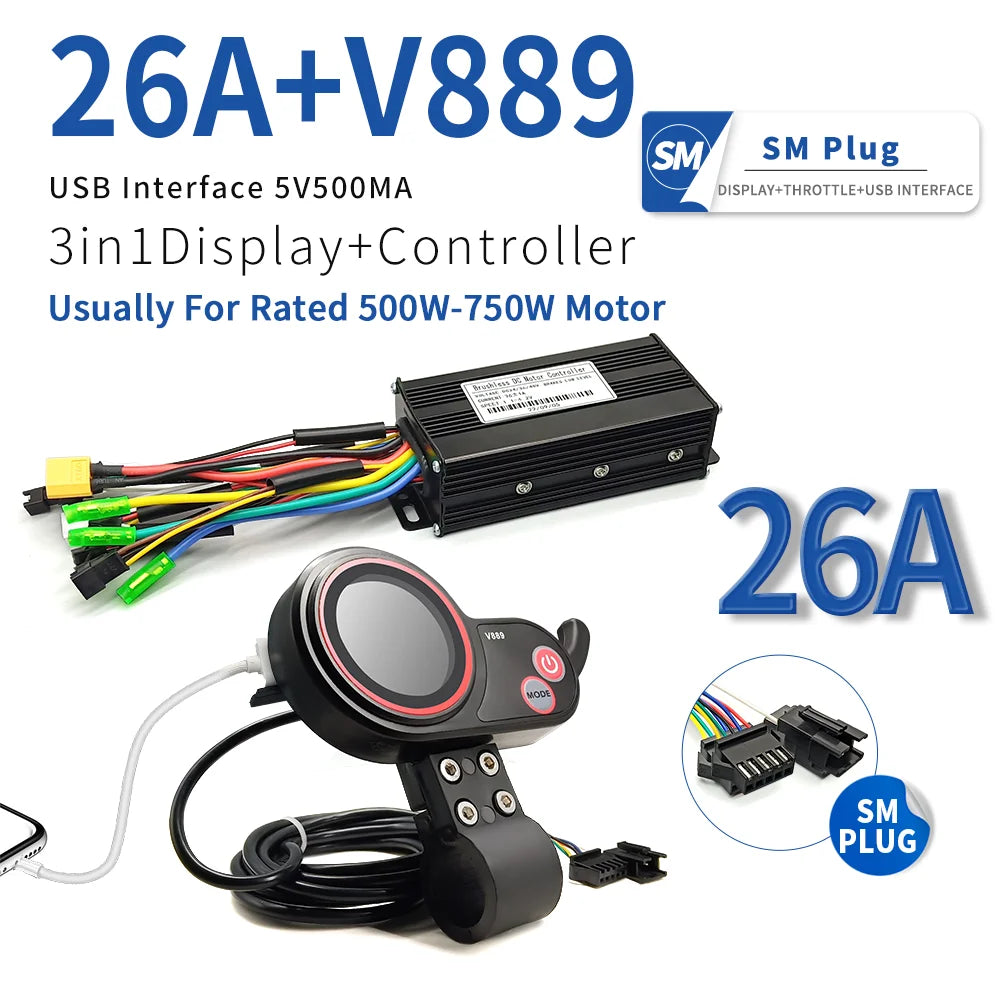

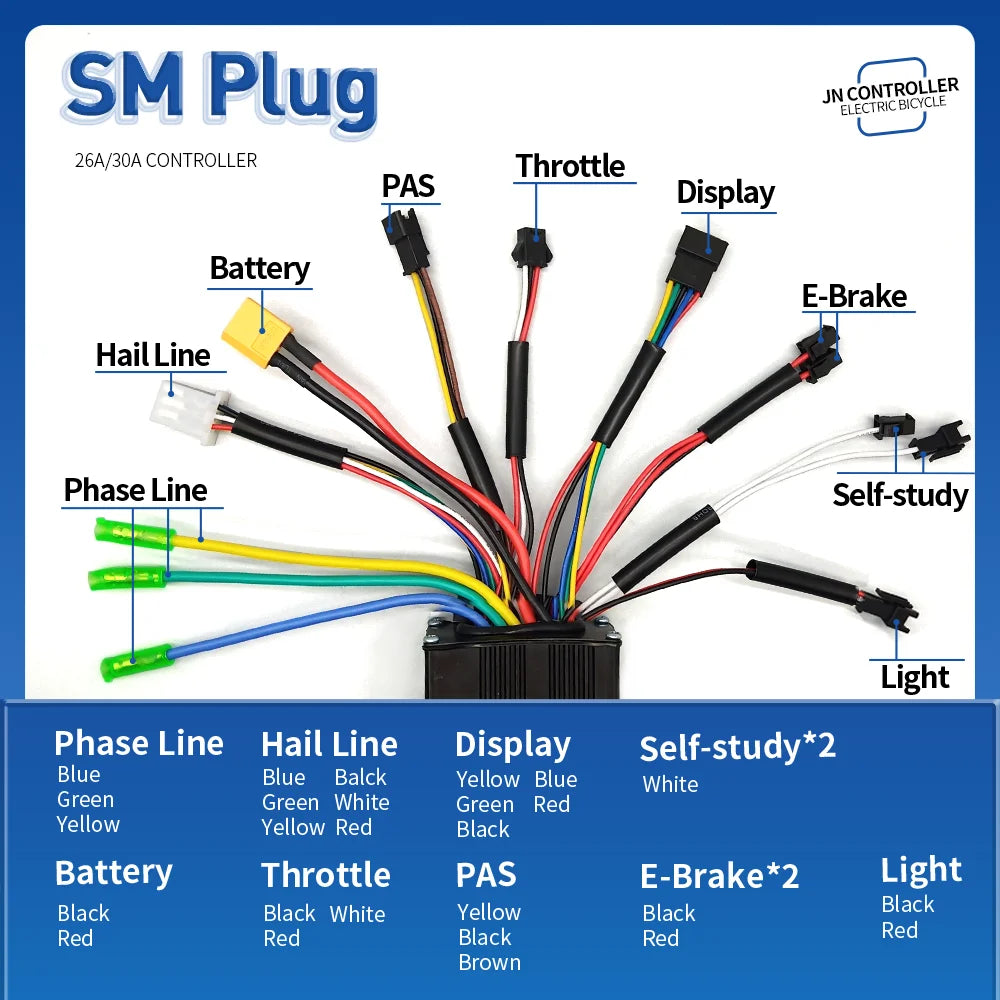

26A Controller

• Type: 26A Controller

• Size(L*W*H):About 150*65*40mm（The measured size includes ear hooks）

• Rated Power:500W/750W

• Speed Set:1.1-4.2V

• Mosfet:9Mosfet

• Booster:1:5

• Brakes:Low-Level

• Rated Voltage:DC24V/36V/48V/52V

• Compatible with motors with or without Hall

• With motor forward and reverse learning function

30A Controller

• Type: 30A Controller

• Size(L*W*H):175*65*40mm（The measured size includes ear hooks）

  • Rated Power:1000W

  • Speed Set:1.1-4.2V

  • Mosfet:12 Mosfet

  • Booster:1:5

  • Brakes:Low-Level

  • Rated Voltage:DC24V/36V/48V/52V

  • Compatible with motors with or without Hall

  • With motor forward and reverse learning function

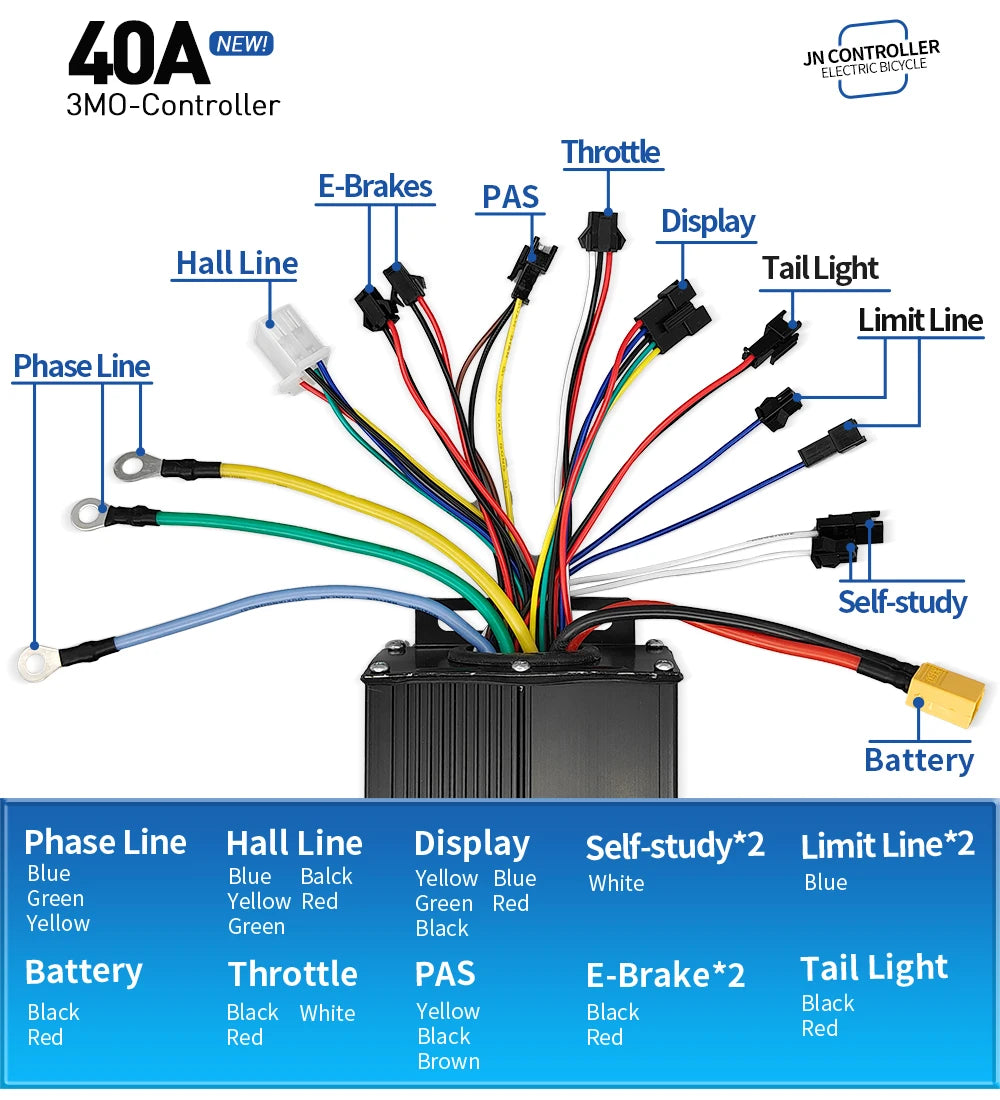

• 40A Controller

• Type: 40A Controller

• Size(L*W*H):212*45*85mm（The measured size includes ear hooks）

• Rated Power:1500W

• Speed Set:1.1-4.2V

• Mosfet:15 Mosfet

• Booster:1:5

• Brakes:Low-Level

• Rated Voltage:DC24V/36V/48V/52V

• Compatible with motors with or without Hall

• With motor forward and reverse learning function

• Can manually connect to the 25km/h speed limit line

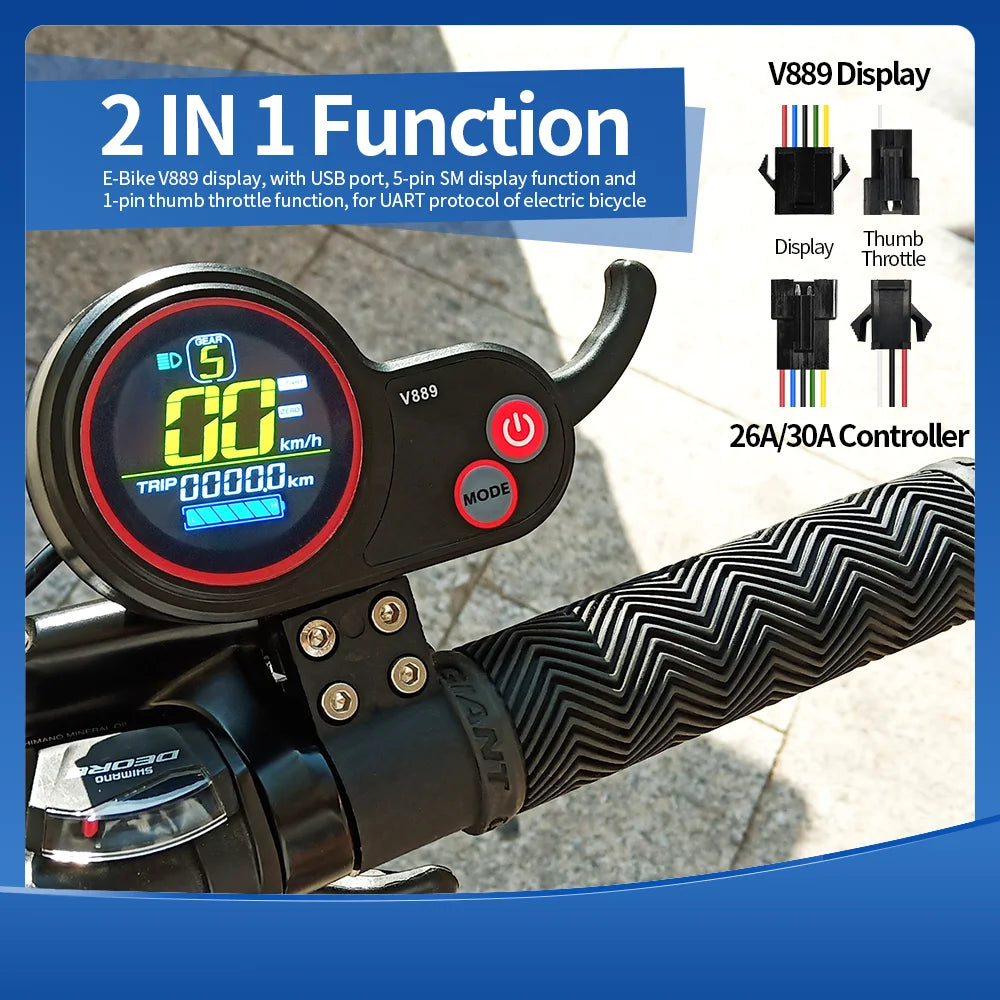

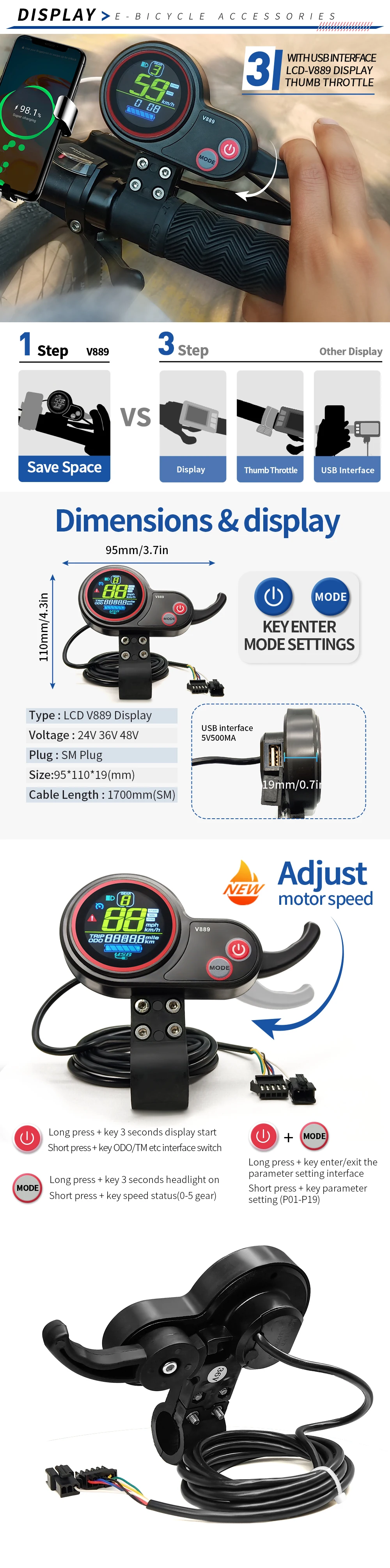

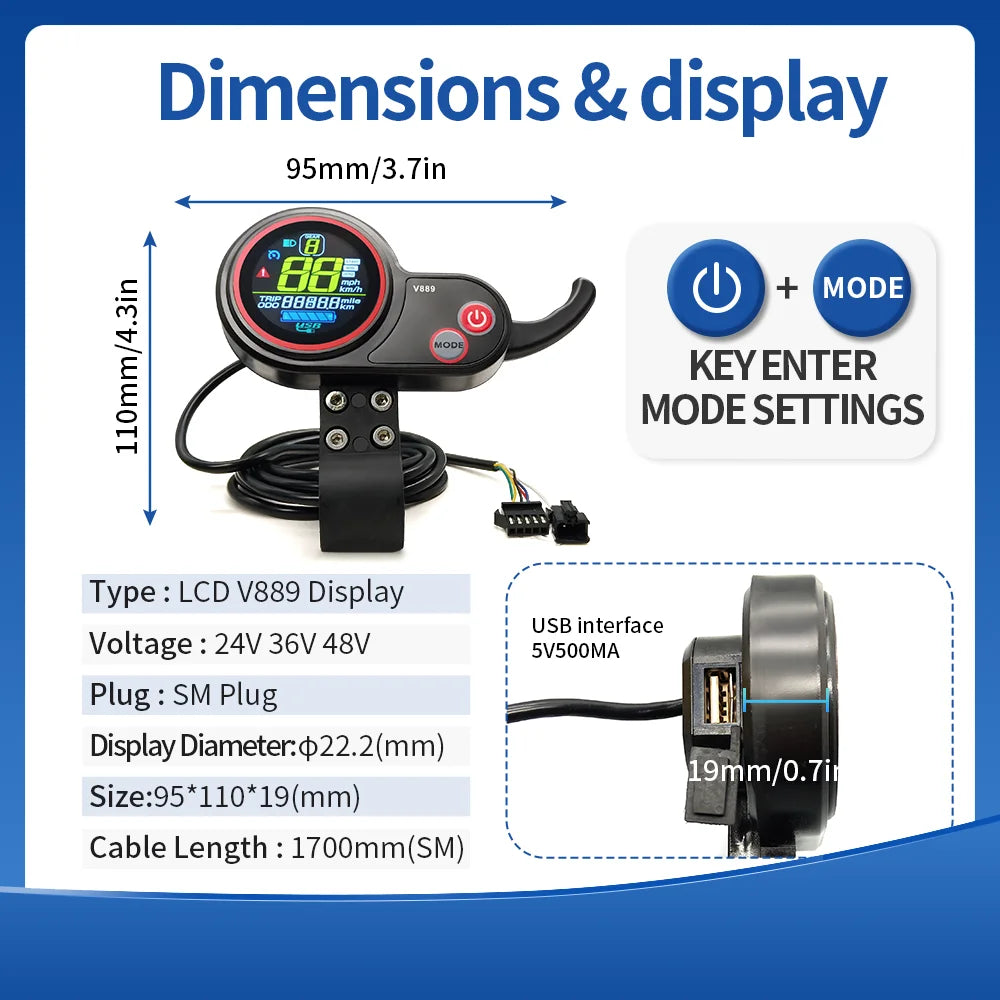

V889 Display

• Type : LCD V889 Display

• Voltage : 24V 36V 48V

• Plug : SM Plug

• Size : 95*110*19 ( mm )

• Cable Length : 1700mm ( SM )
