SPECIFICATIONS

Brand Name: Haytrix

High-concerned chemical: None

Origin: Mainland China

Type: Display

Product Name: H6C Bicycle Accessory

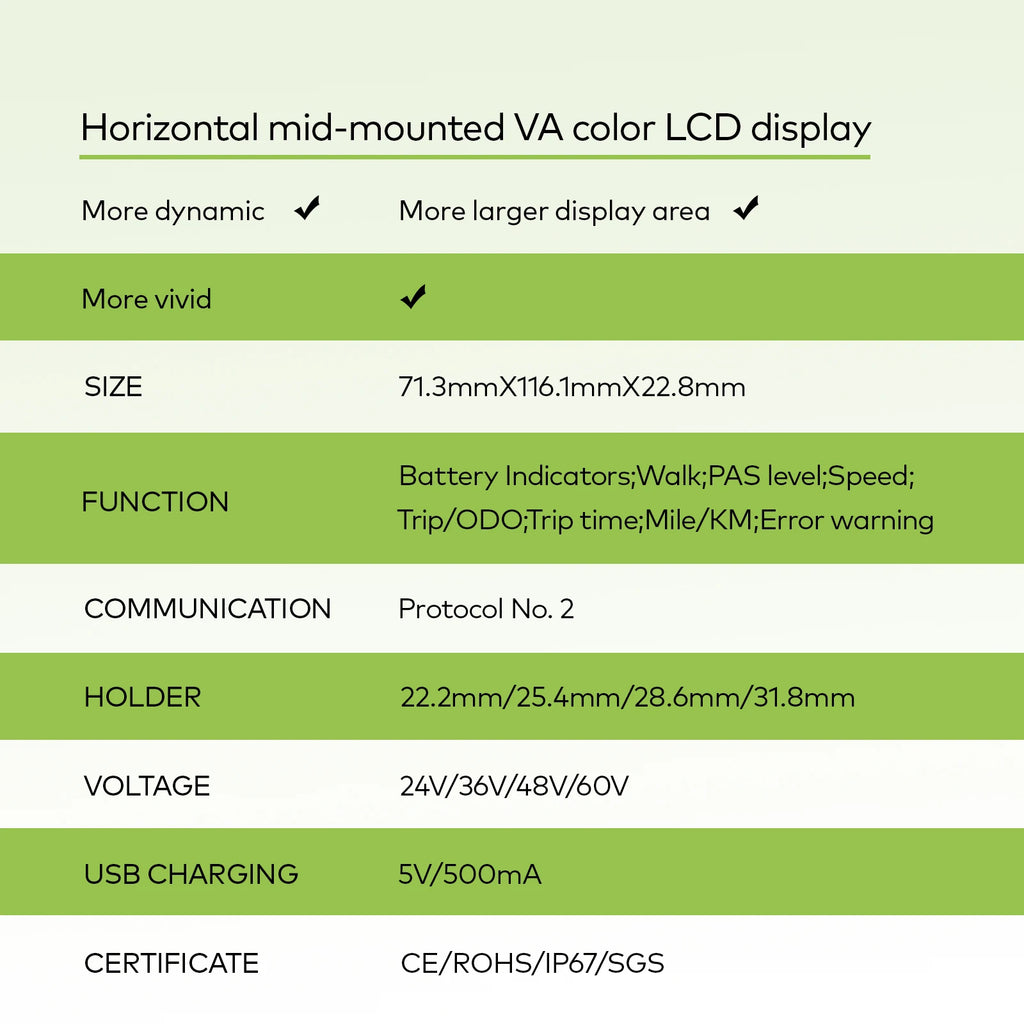

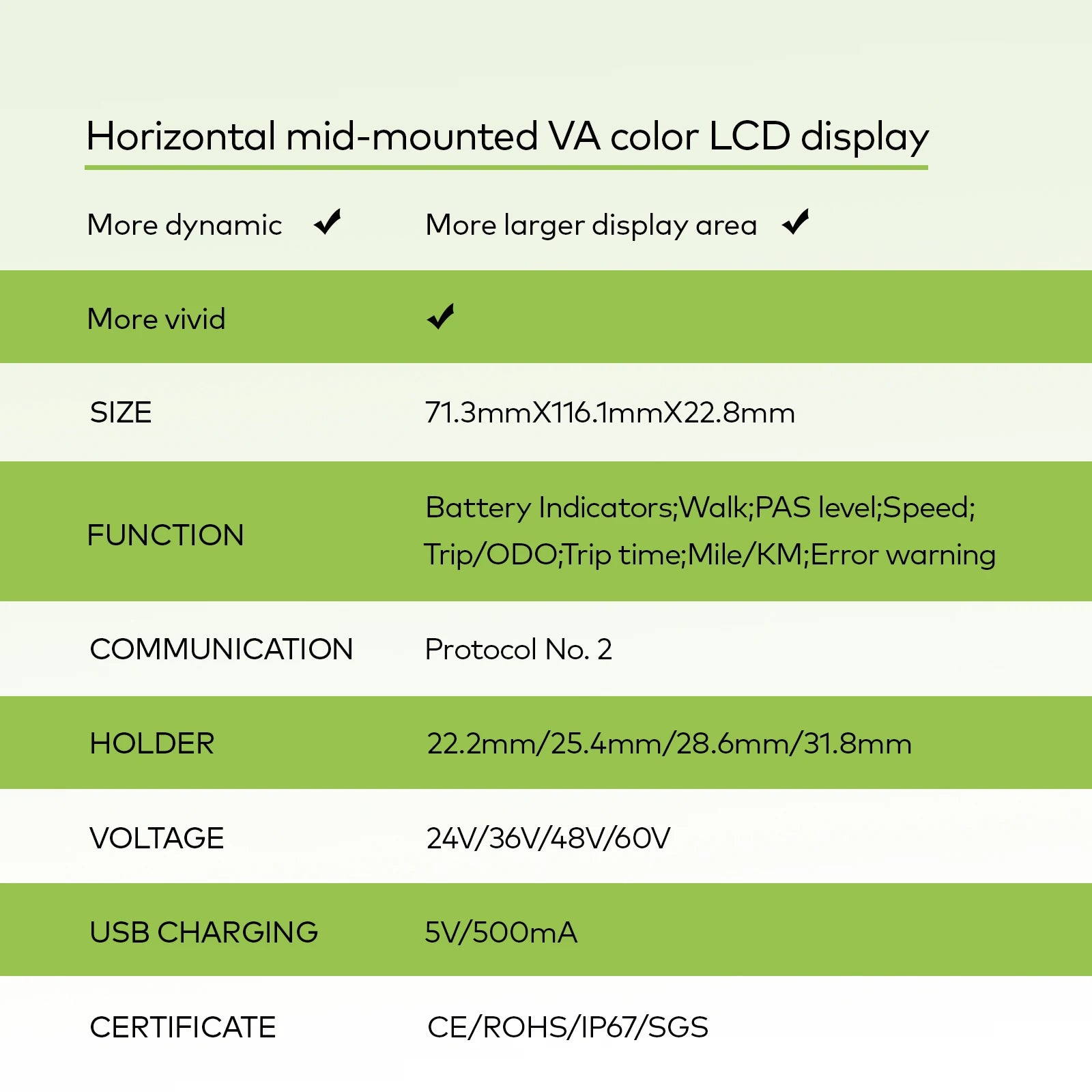

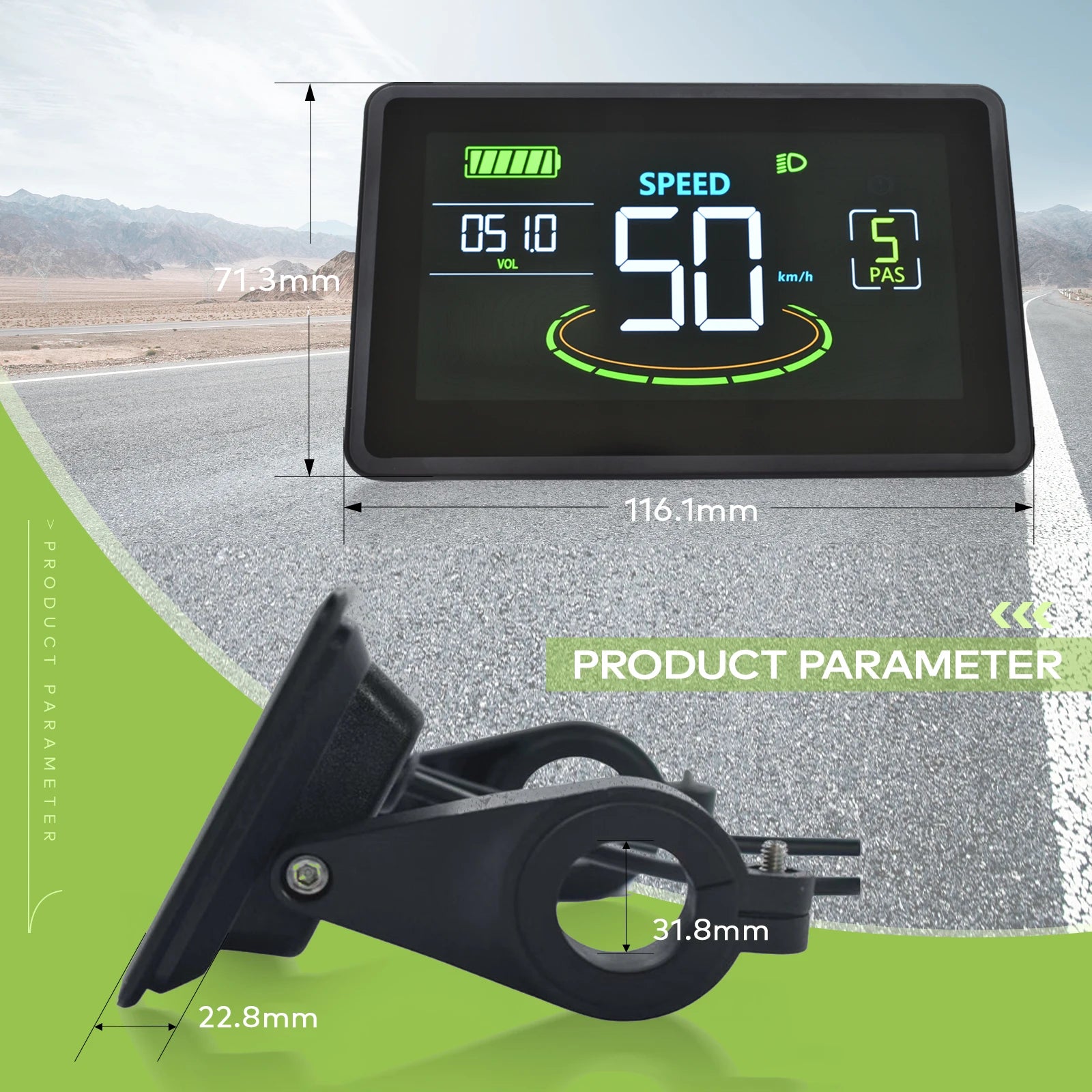

Dimensions: 71.3mm x 116.1mm x 22.8mm

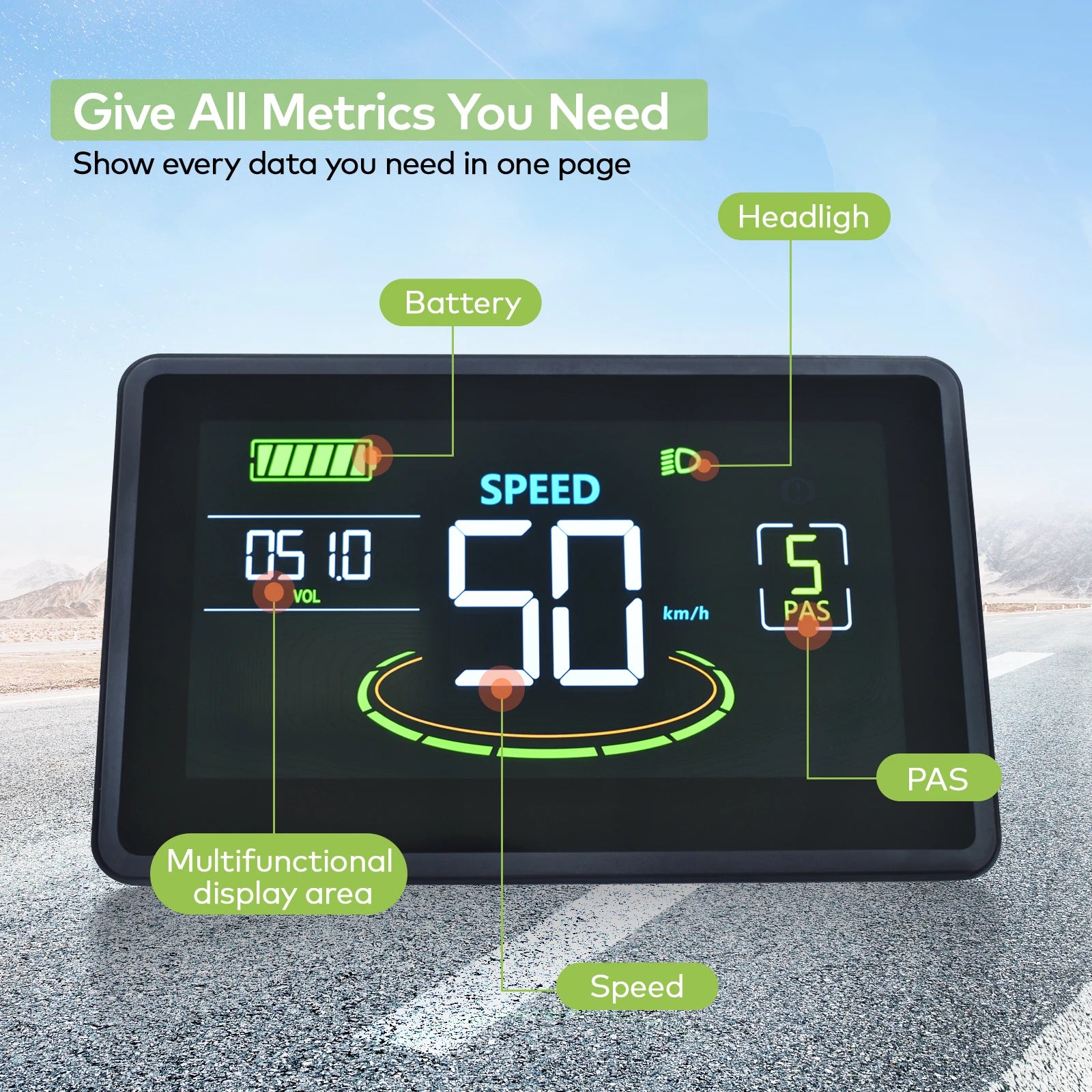

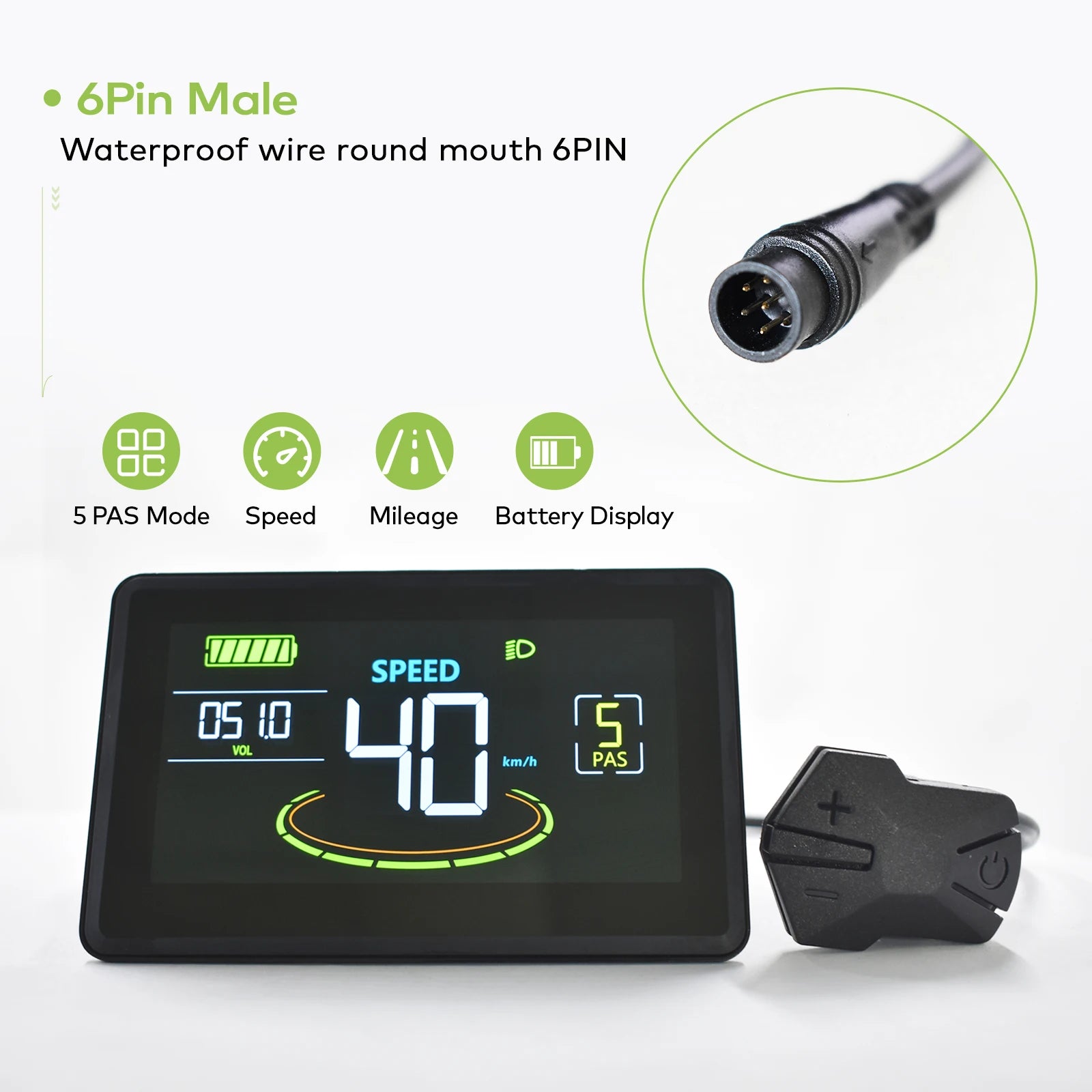

Functions: Battery indicator; headlight control; boost function; assist levels; speed display; trip/total mileage; running time; metric/imperial conversion; fault indicator; walking; PAS levels; speed; riding time; error warning

Communication Method: UART 2

Compatible Handlebar Sizes: 22.2mm / 25.4mm / 28.6mm / 31.8mm

Compatible Voltage: 24V / 36V / 48V / 60V

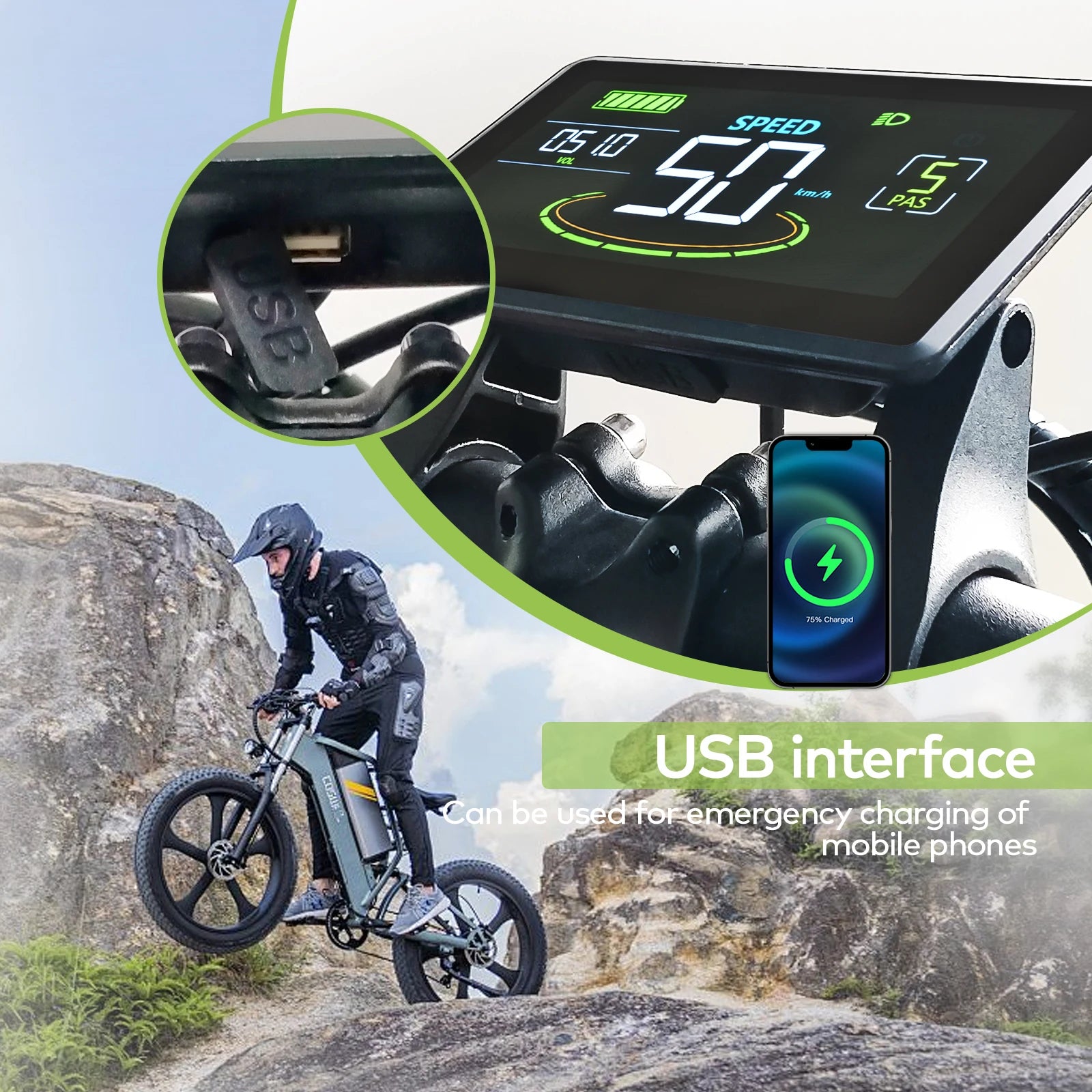

USB Charging: 5V / 500mA

Precautions:

If the display shows E10 after connecting, there are two possibilities:

1.The communication protocol between the display and the controller is incompatible.

2.The vehicle’s overall condition is poor, potentially affecting the boost controller, knob, or motor, which may cause communication failure with the dashboard.
