SPECIFICATIONS

Application: Desktop,Server,Workstation,Mining,Industrial Computer

Back I/O Ports: 1x RJ45

Battery Included: Yes

Brand Name: HUANANZHI

Chipset: C612

Chipset Manufacturer: Intel

Choice: yes

Form Factor: CeB,ATX

HUANANZHI Model: X99-F8

High-concerned chemical: None

Maximum Ram Capacity: 256GB

Number Of Memory Slots: 8

Number of M.2: 3

Number of PCI: 1

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Processor compatibility: Intel Xeon E Series

RAID Supported: No

Socket Type: LGA 2011

Special Features: NONE

Storage Interface Type: U.2,SATA,M.2 (NVMe)

Support Memory Type: DDR4

Usage Scenario: Gaming,Office,Design,Video Rendering,others

With CPU: No

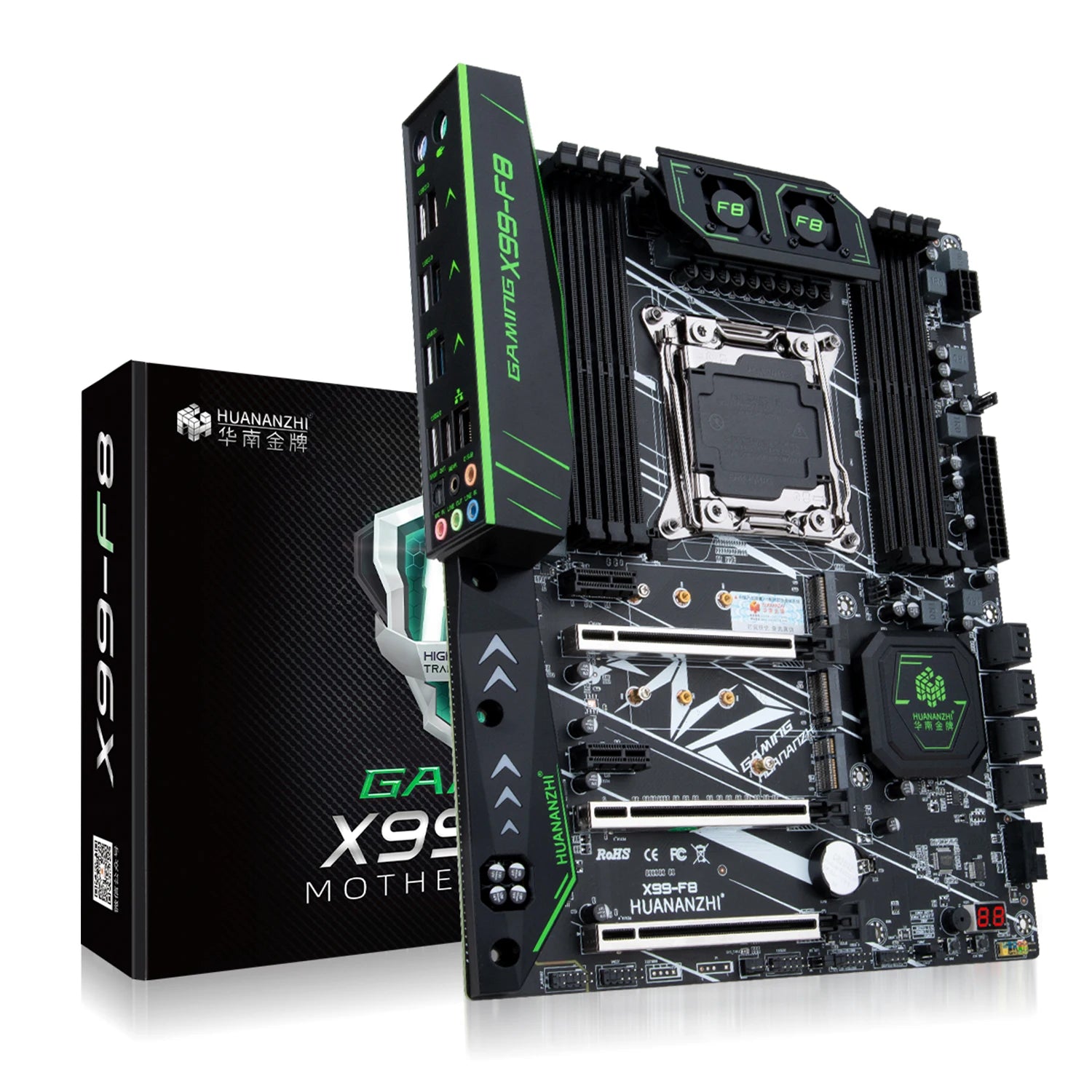

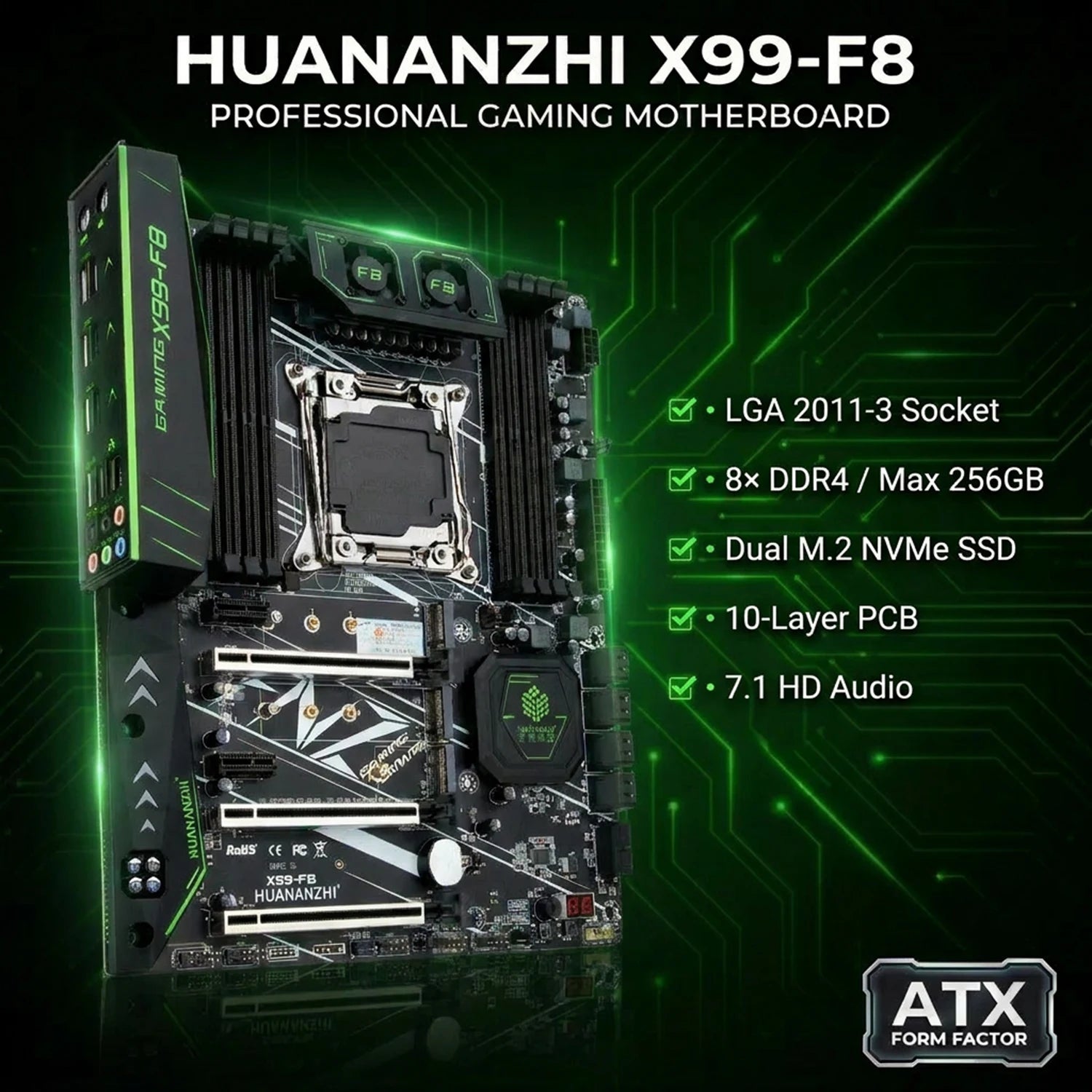

HUANANZHI X99-F8

• Supports 2011-3-pin V3/V4 processors

• 8 DDR4 memory slots, supporting up to 8 x 32GB

• 2x M.2 slots, supporting NVMe protocol; 1x M.2 Wi-Fi slot (NGFF protocol)Integrated I/O shield design

• Onboard silent cooling fan, power/reset button, digital optical audio port

• 4x SATA 3.0 ports, 4x eSATA 3.0 ports

• 10-layer PCB, 6-phase power delivery

• 4x USB 2.0, 4x USB 3.0; supports 2x USB 3.0 and 4x USB 2.0 expansion

• 2x PCI Express 3.0 x16; 1x PCI Express 3.0 x4; 2x PCI Express x1

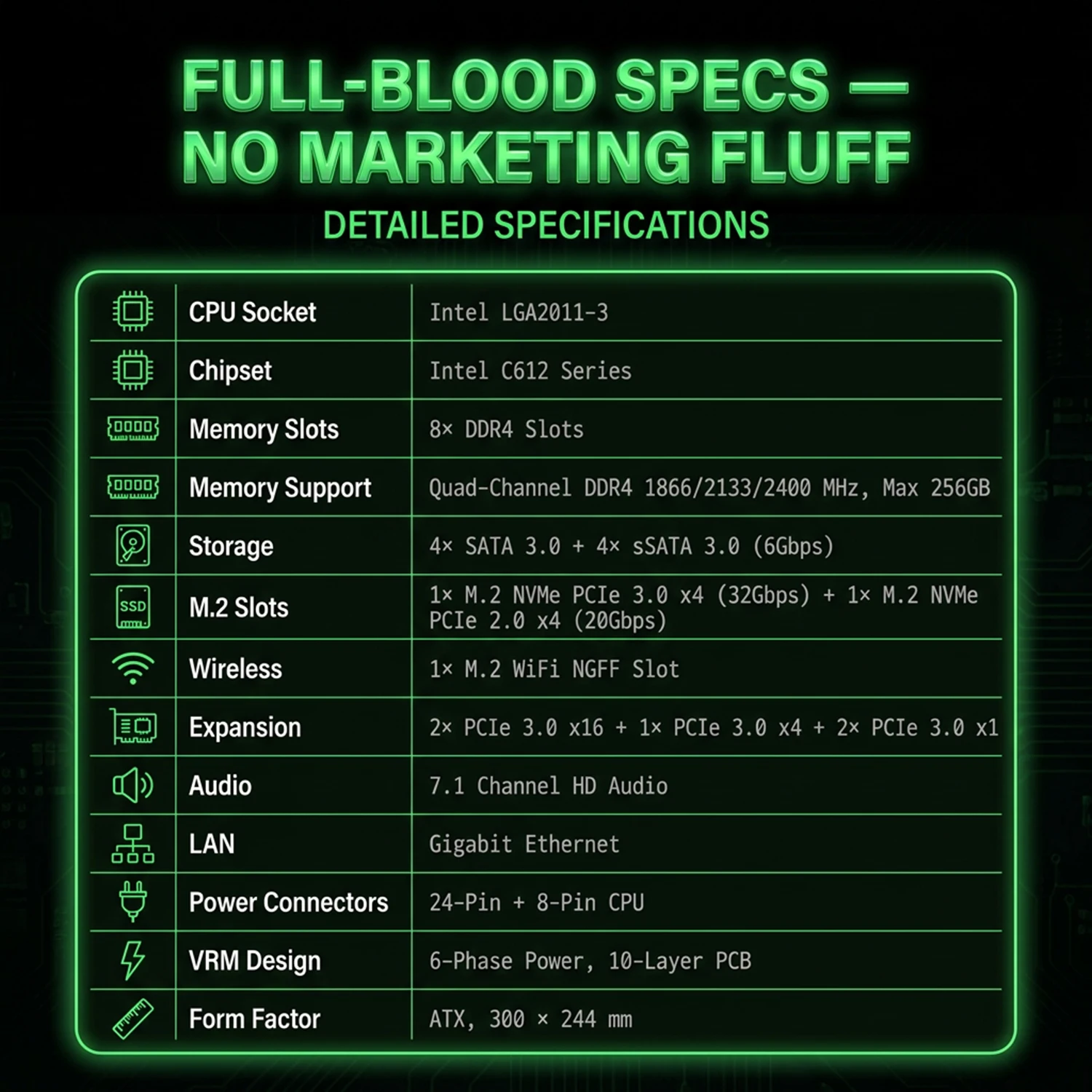

Motherboard Specifications

1. Motherboard Model: X99-F8

2. Chipset: Intel C612 Series

3. CPU Socket: Supports Intel LGA2011-3 platform processors

4. Memory Slots: 8 DDR4 memory slots, supports server-grade memory

5. Memory Specifications: Supports quad-channel DDR4 2400/2133/1866 MHz, up to 256 GB

6. Storage Interfaces: 4 SATA 3.0 6Gbps hard drive ports, 4 eSATA 3.0 6Gbps hard drive ports

7. Expansion Slots: 2 PCIe 3.0 x16 slots, 1 PCIe 3.0 x4 slot, 2 PCIe 3.0 x1 slots

8. Expansion Interfaces: 1 x M.2 2280 NVMe PCIe x4 3.0 32Gbps, 1 x M.2 2280 NVMe PCIe x4 2.0 20Gbps, 1 x M.2 Wi-Fi (NGFF protocol) interface

9. Onboard Audio: 7.1-channel audio

10. Onboard Network Card: Gigabit Ethernet

11. Power Connectors: 24-pin + 8-pin

12. Fan Header: 1 CPU_FAN header, 2 SYS_FAN headers

13. Power Phases: 6-phase power delivery PCB Layers: 10 layers

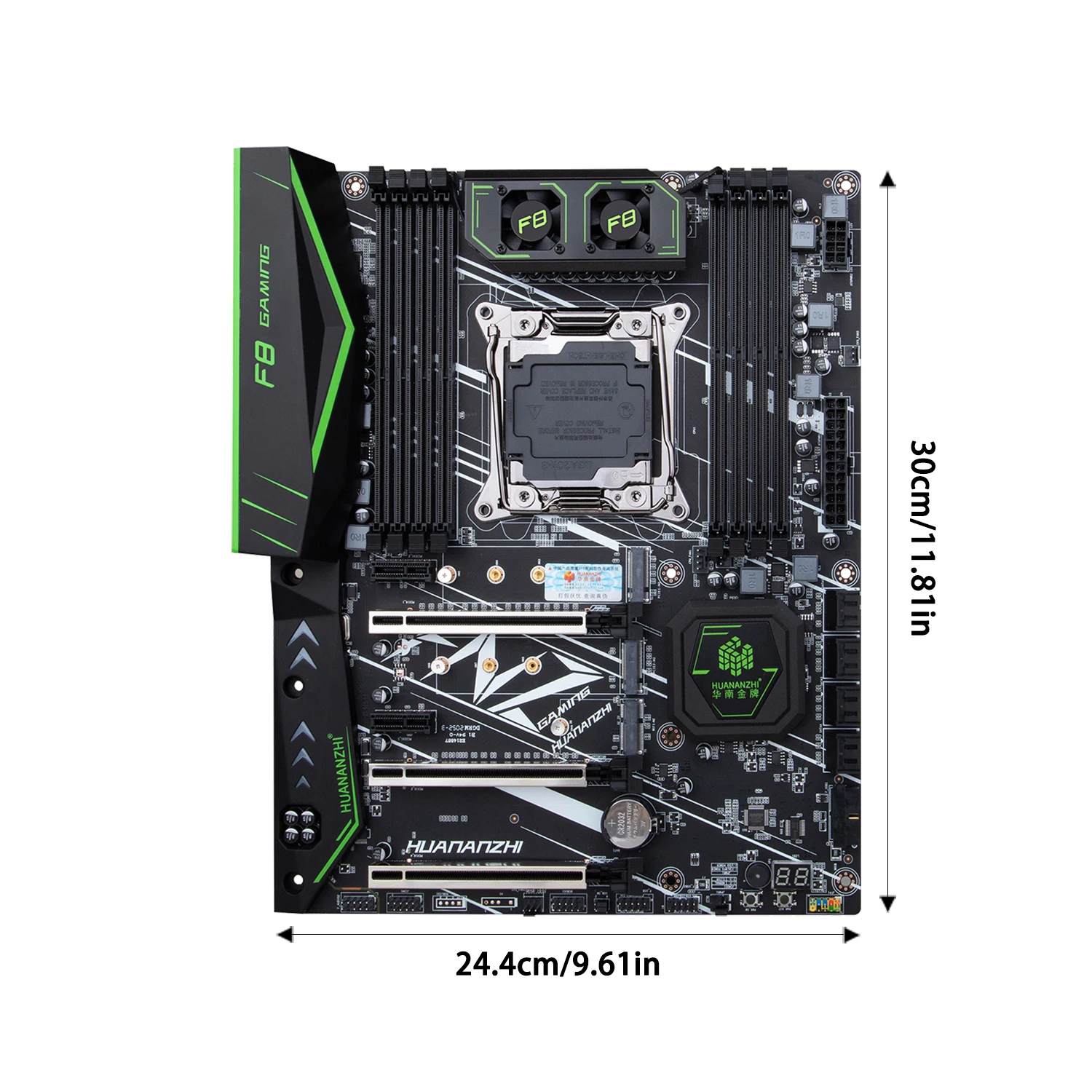

14. Motherboard Dimensions: 30 cm (11.81 in) x 24.4 cm (9.61 in) ATX Form Factor

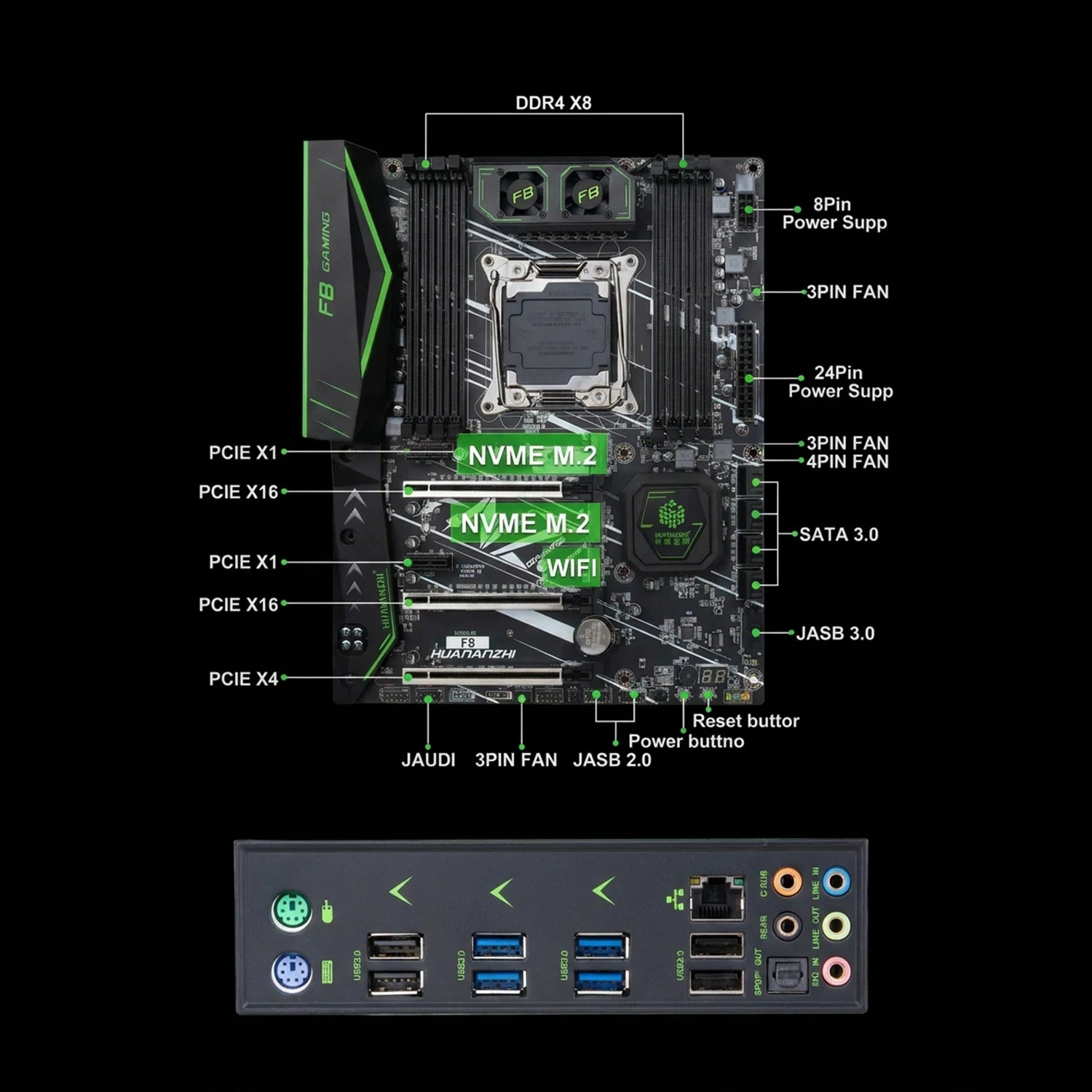

15. Rear Panel Ports: 1 PS/2 keyboard/mouse port, 4 USB 2.0 ports, 4 USB 3.0 ports, 1 Ethernet port, 1 5-pin audio jack, 1 optical audio jack (integrated into the audio jack)

16. Front panel connectors: 2 sets of USB 2.0 headers (one set controls Wi-Fi and Bluetooth via jumper caps), 1 set of USB 3.0 headers, 1 set of front audio headers, 1 set of COM headers, 1 motherboard buzzer, 1 motherboard diagnostic card, 1 set of power/reset buttons

17. Supported operating systems: Windows 7, Windows 10, Windows 11

18. BIOS: AMI UEFI BIOS

19. Package Contents: 1 motherboard, 2 SATA hard drive cables, 1 I/O shield, 1 product warranty card
