SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45

Battery Included: No

Brand Name: MACHINIST

Chipset: h55

Chipset Manufacturer: Intel

Form Factor: Micro-ATX

High-concerned chemical: None

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 128 GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 1

Number of PCI: 0

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of PCIe x 4: 0

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s)

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Ports: M.2

Processor compatibility: Intel Xeon

RAID Supported: No

Socket Type: LGA 2011-3

Special Features: NONE

Storage Interface Type: M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0

Supports M.2 SSD: 2260

TPM 2.0: NO

Usage Scenario: Audio & Video,Office,others

With CPU: No

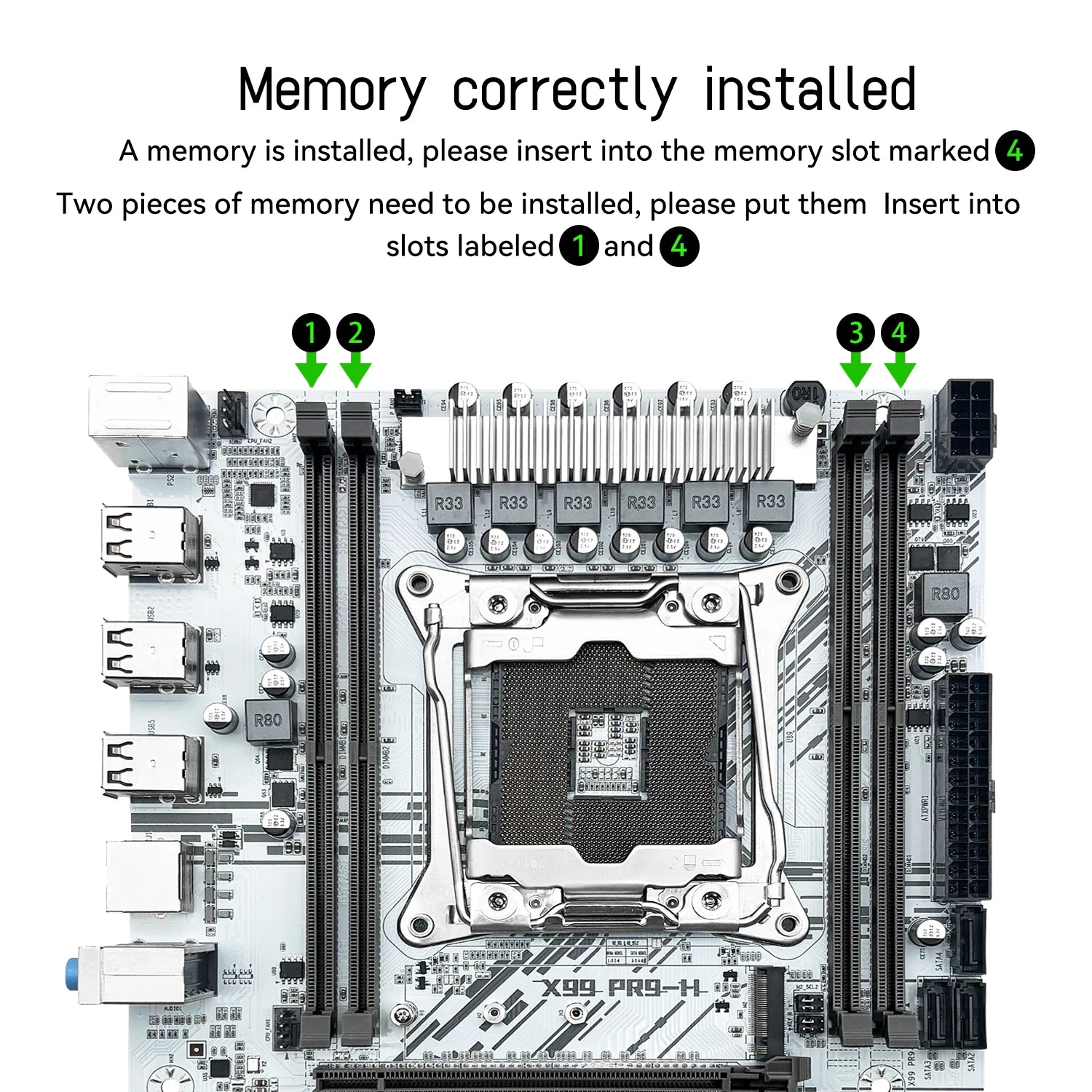

！！！ As shown in Figure 2. The memory needs to be installed according to the instructions. Failure to install it correctly will prevent the product from starting.

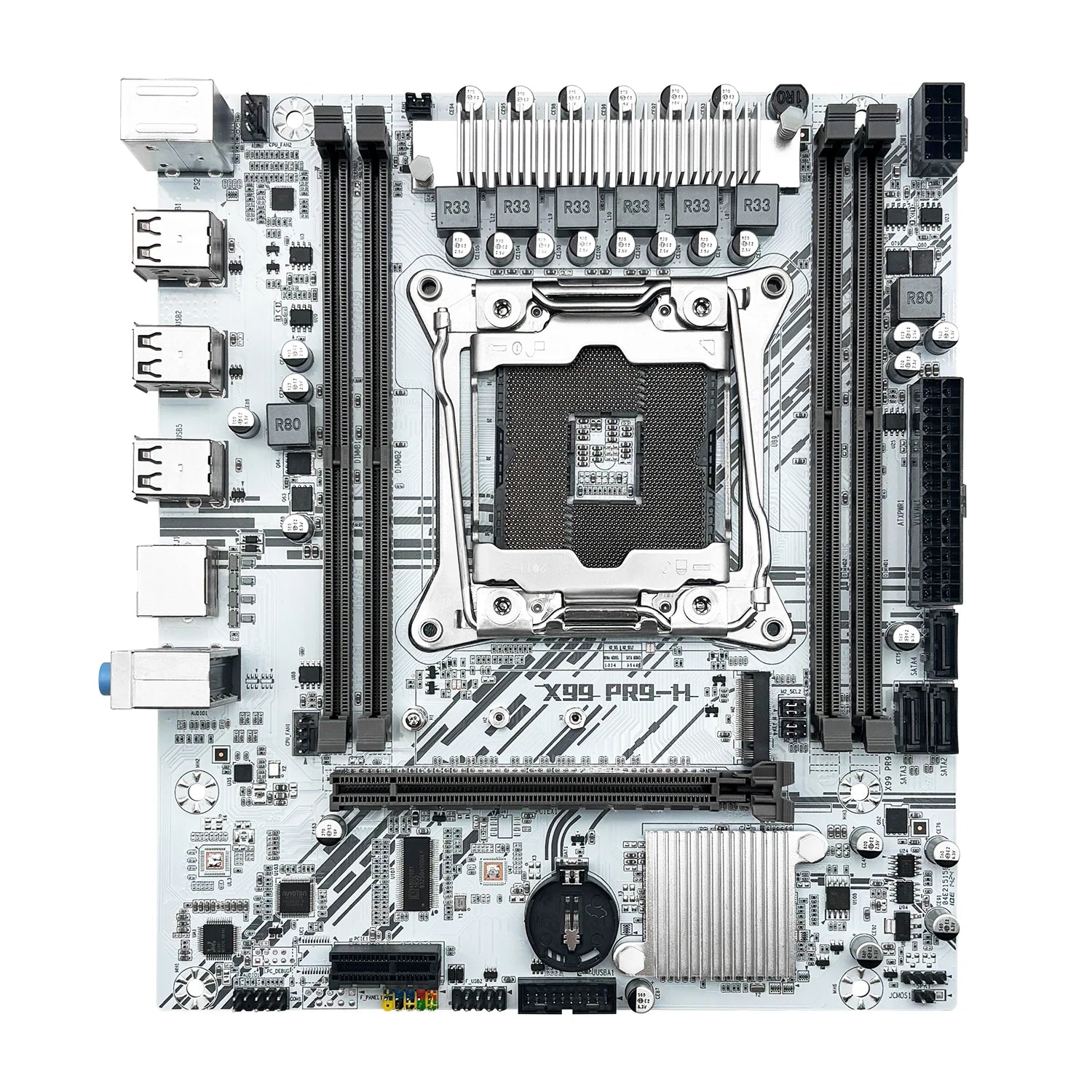

>> Motherboard Information:

Brand: MACHINIST.

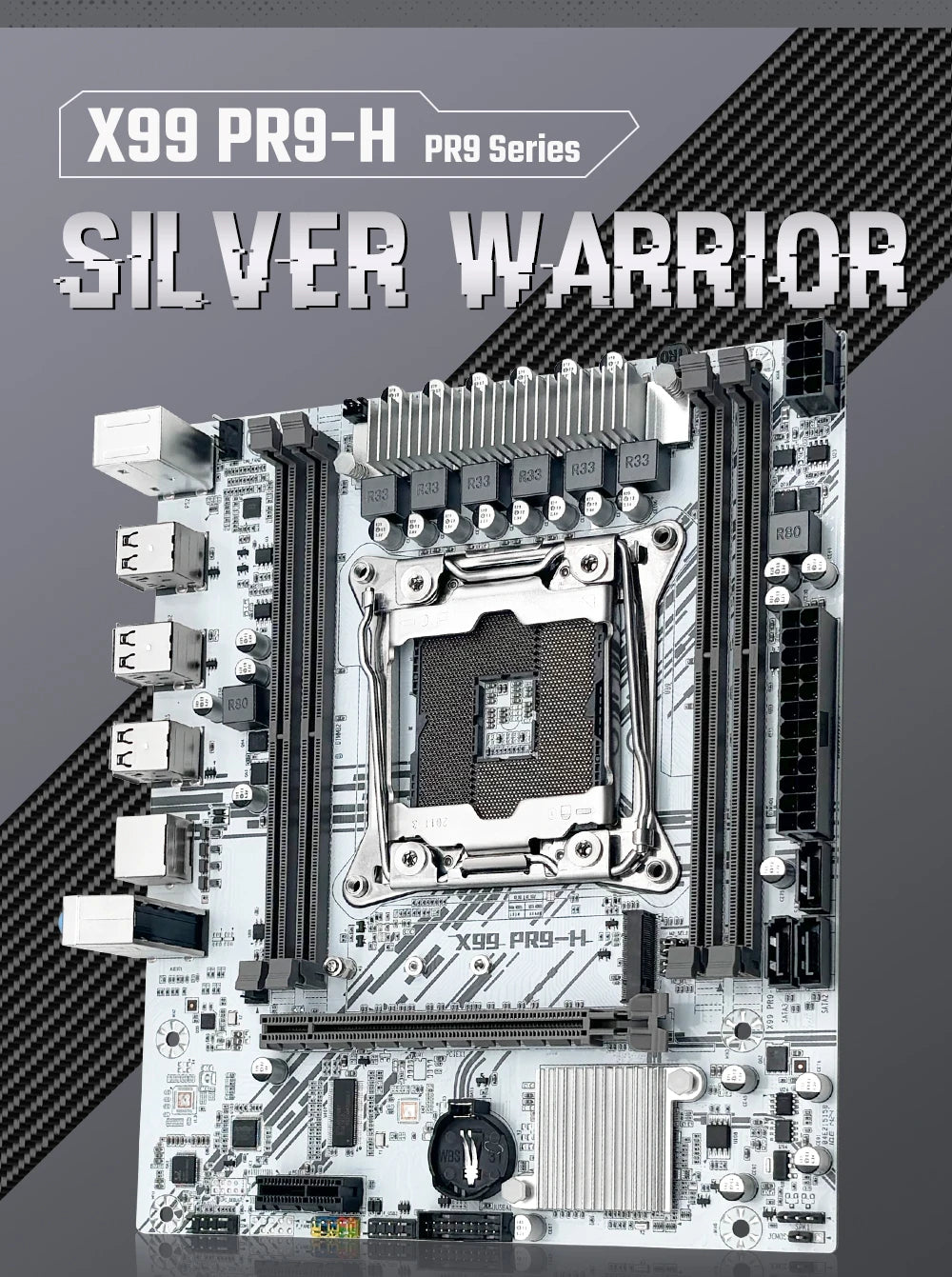

Motherboard Model: X99 PR9-H (White).

Processor: Supports LGA 2011-3 series.

Chipset: HM55 Chipset.

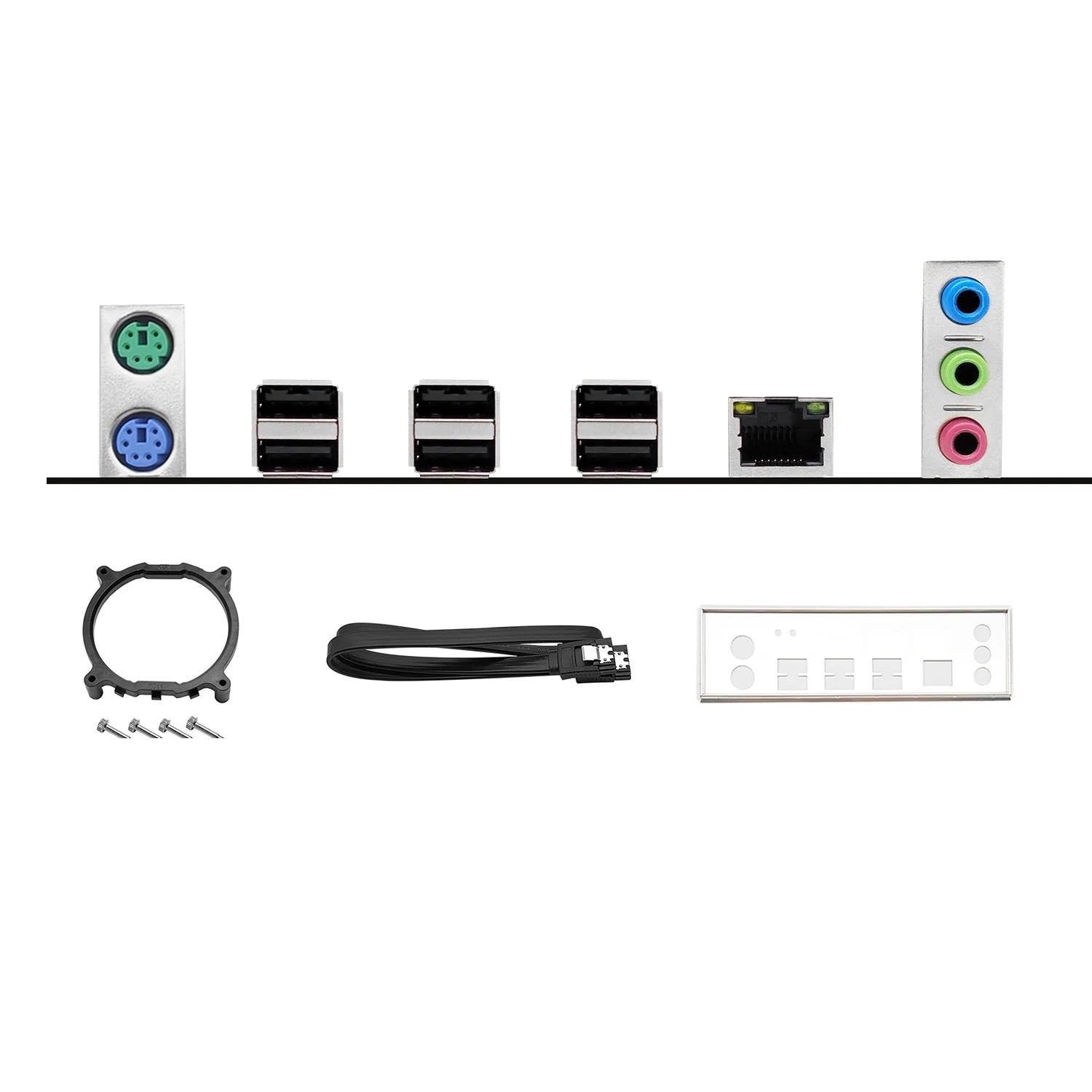

Included Accessories: I/O Shield *1, SATA Cable *1.

(>> All items are manually tested and packaged before shipment. If any gifts are missing, please understand!)

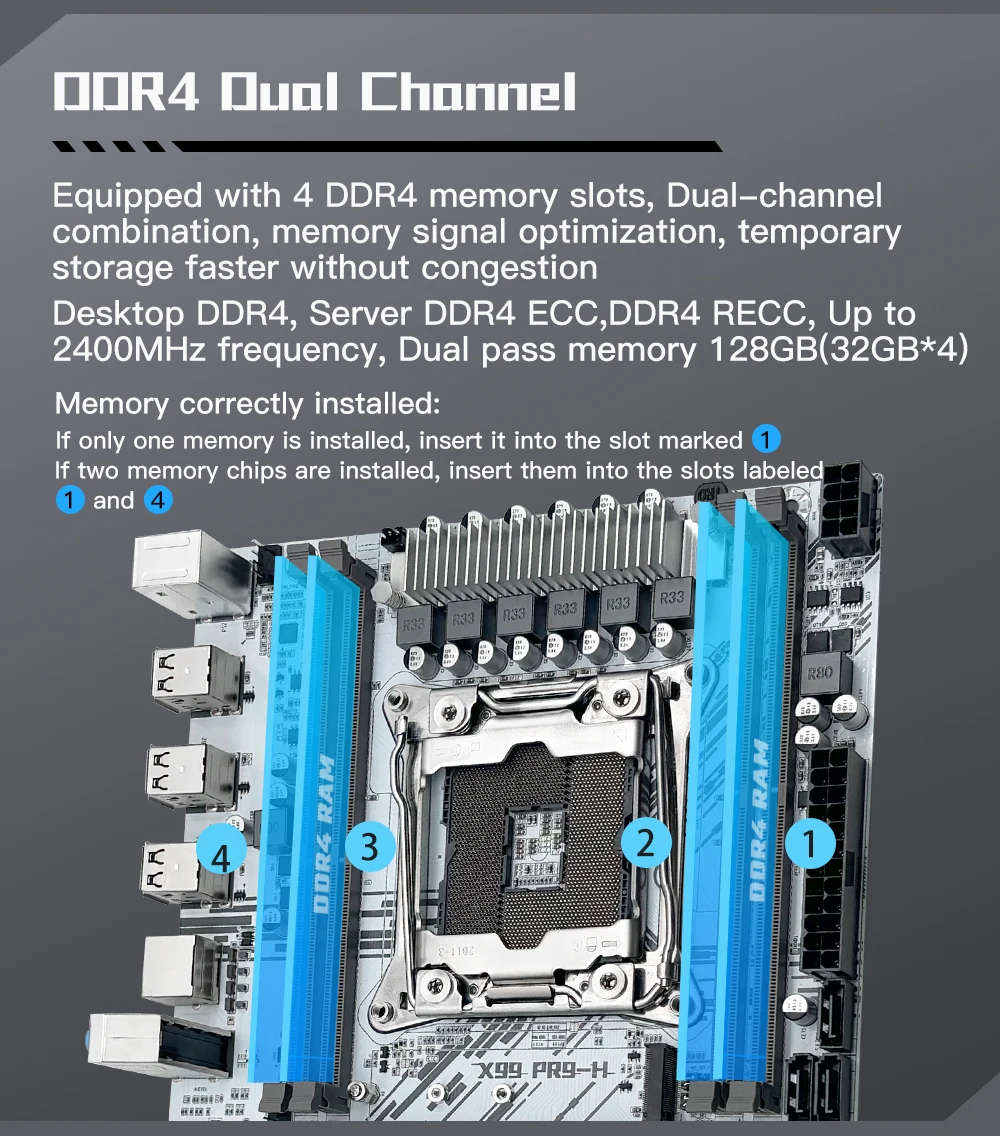

> > Memory:

Technology: Dual-channel DDR4. Supports 2133/2400/2666/3000/3200 MHz.

Maximum capacity: 128GB (32G x 4).

Memory slots: 4 * 288 PIN DDR4. (Please use international brands such as Samsung, Kingston, SanDisk, Micron, etc. Other brands may be incompatible.)

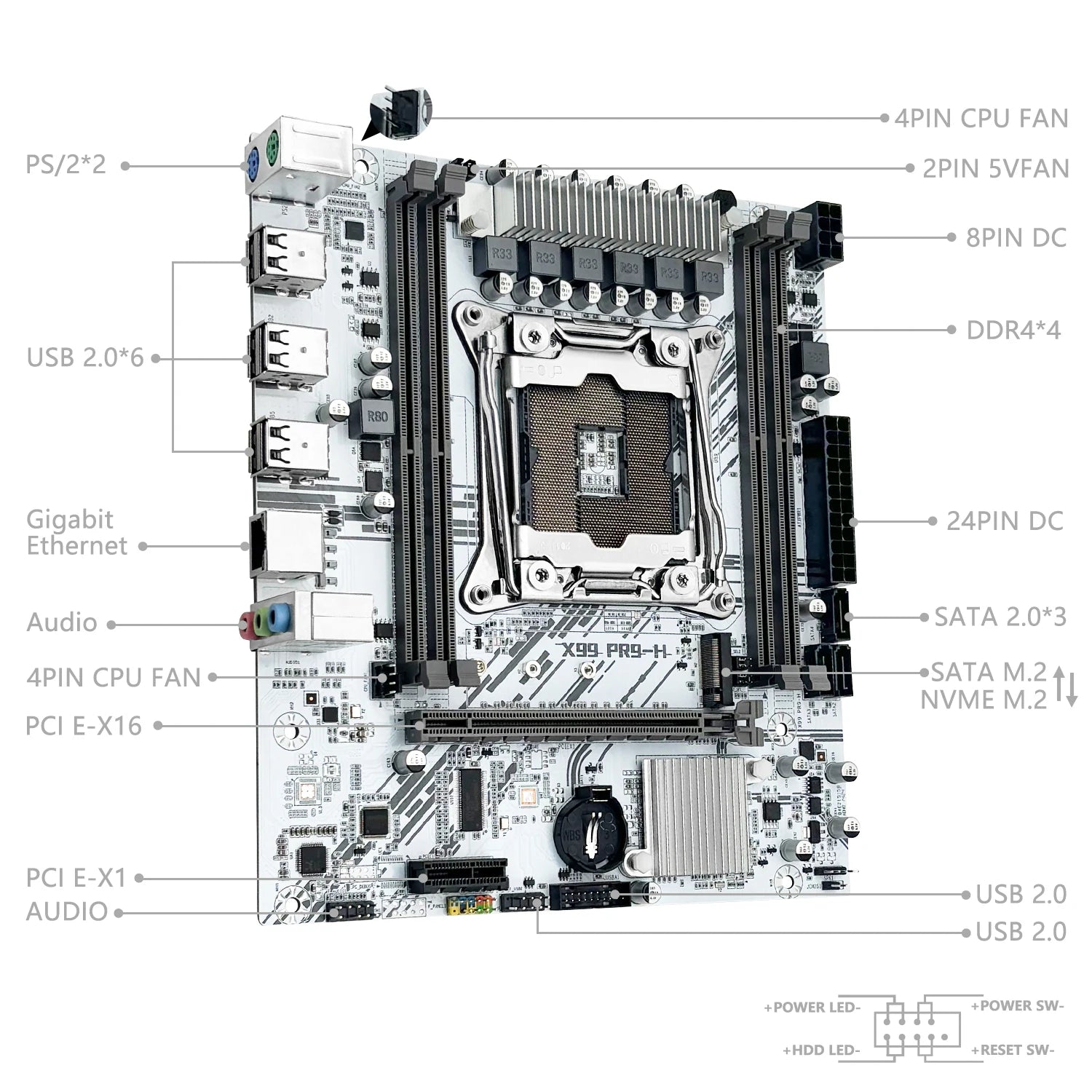

>> Post I/O:

PS/2: 1 KB interface + 1 MS interface.

USB interface: 6 USB 2.0 ports.

Ethernet: 1 Gigabit network card.

Audio: 1 (Mic-in, Line-out, Line-in).

SATA interface: 3 (SATA 2.0).

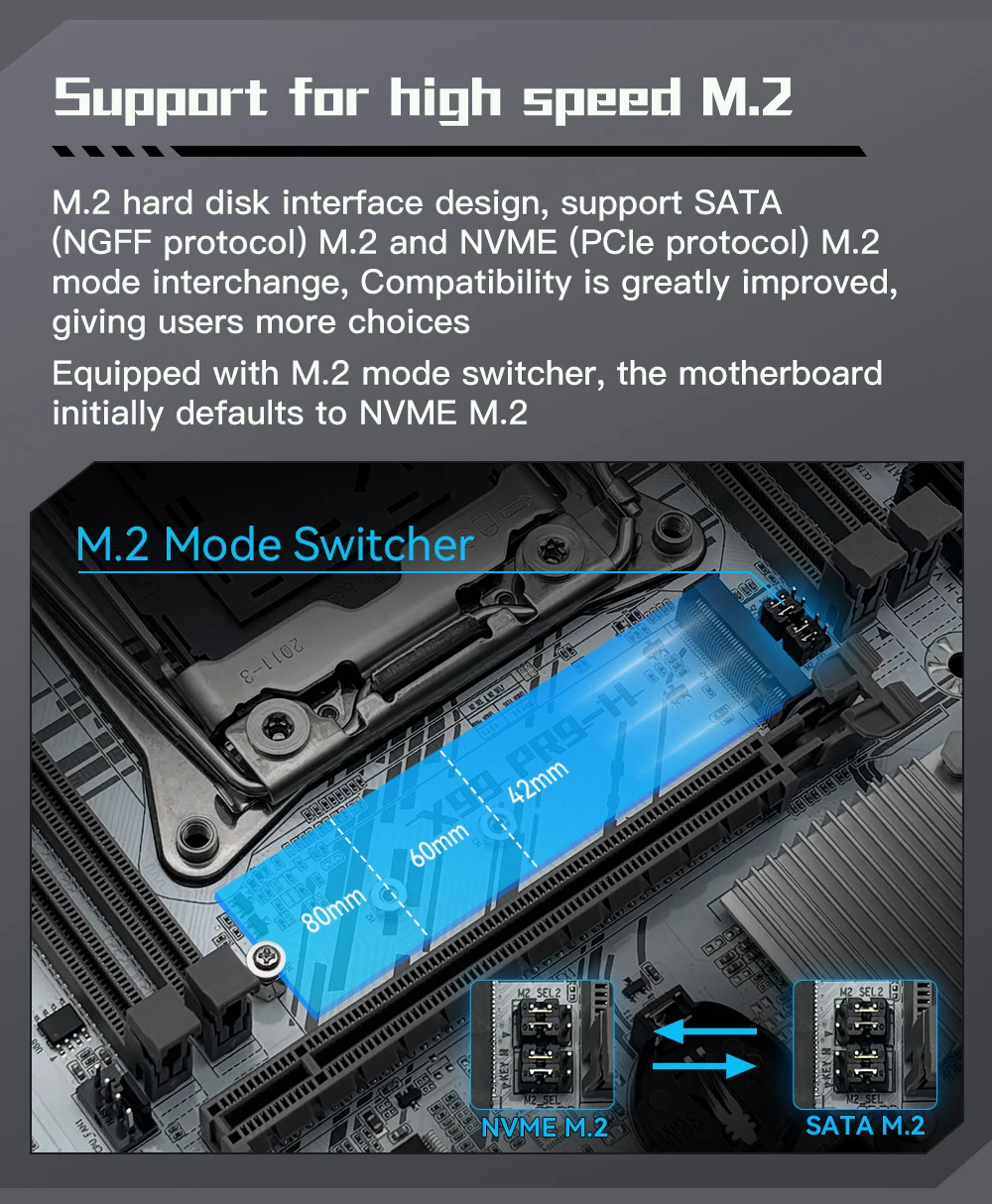

M.2: 1 (nvme/sata).

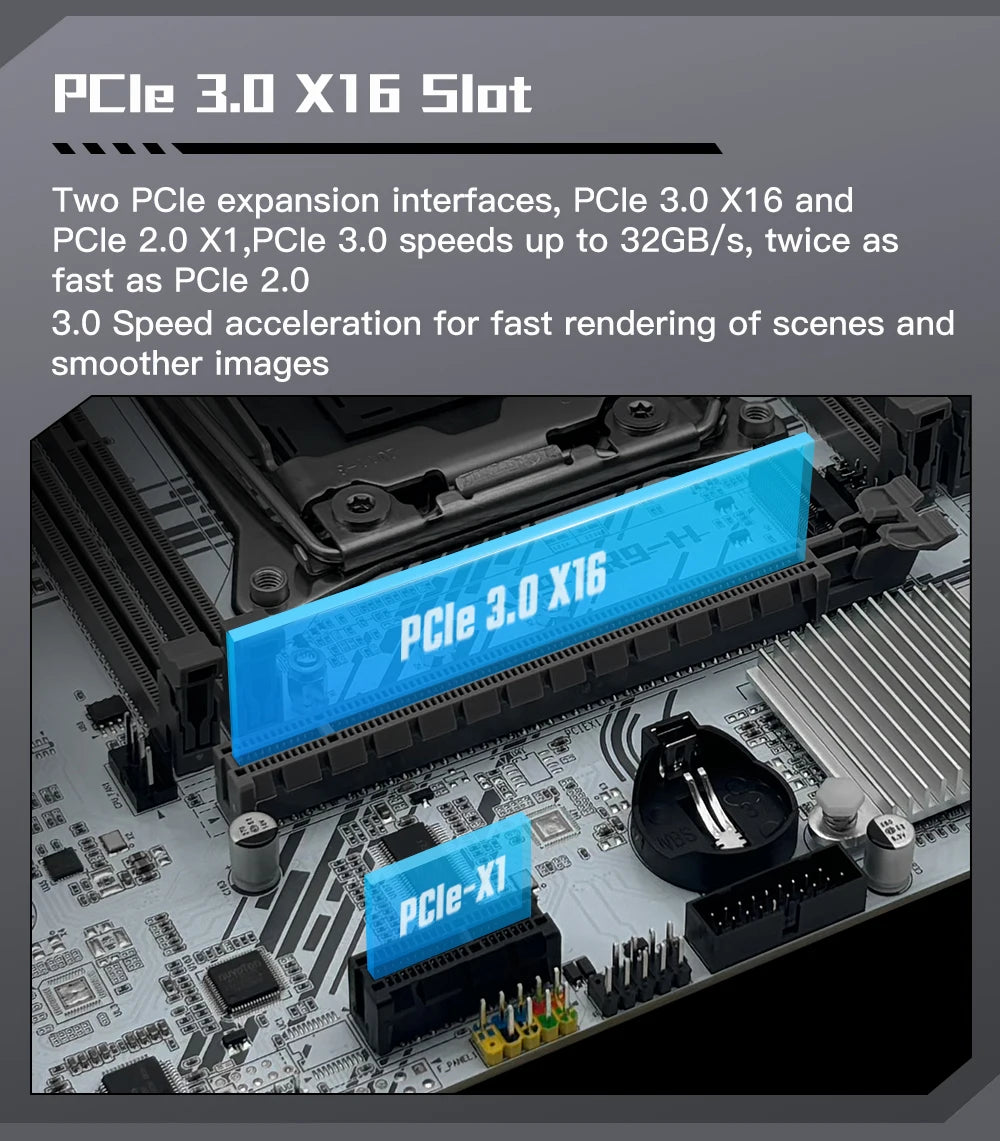

PCIe: 1 PCIe 16x, 1 PCIe 1x.

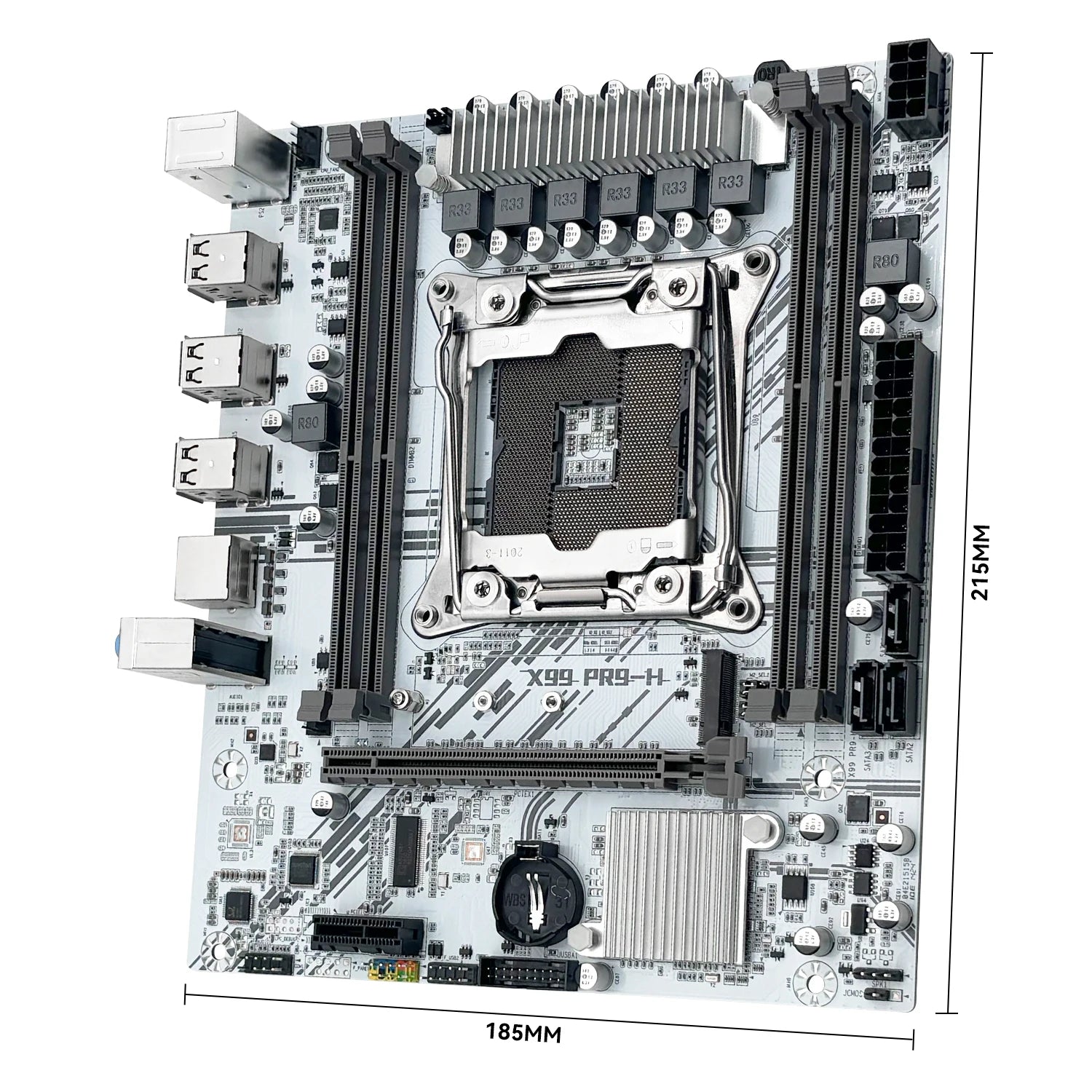

Dimensions: 215mm * 185mm.

>> Attention:

(1) The color of the bottom plate may vary by batch, but it will not affect the use of the product. The product is constantly being optimized and upgraded.

(2) Due to manual measurement, please allow for an error of 1-3mm.

(3) Due to different displays and different light conditions, the pictures may not accurately represent the actual color of the item. Thank you for your understanding.

(4) This platform requires a powerful power supply. Please ensure that your power supply is capable of supporting this platform. (At least a 500W brand power supply is required).

(5) The battery shown in the motherboard photo is not included. It will be removed before shipment as the logistics requirements prohibit the use of this battery.
