SPECIFICATIONS

Application: Desktop

Audio Channels: 5.1

Back I/O Ports: 1x RJ45

Battery Included: No

Brand Name: MACHINIST

Chipset: C612

Chipset Manufacturer: Intel

Form Factor: Micro-ATX

High-concerned chemical: None

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 128 GB

Memory channel: Four

Number Of Memory Slots: 4

Number of M.2: 3

Number of PCI: 0

Number of PCIe x 1: 0

Number of PCIe x 16: 1

Number of PCIe x 4: 1

Number of SATA Ports: 6

Onboard Connectors & Header: 24-pin Main Power Connector,AAFP Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Ports: USB 3.0

Processor compatibility: Intel Xeon

RAID Supported: Yes

Socket Type: LGA 2011-3

Special Features: NONE

Storage Interface Type: SATA 2

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280

Usage Scenario: Gaming,Audio & Video,Office,Video Production,others

With CPU: No

>> The TPM interfaces of the X99 V9S/X99 U9 models can only be installed using TPM 2.0 accessories that are compatible with ASUS 14PIN.

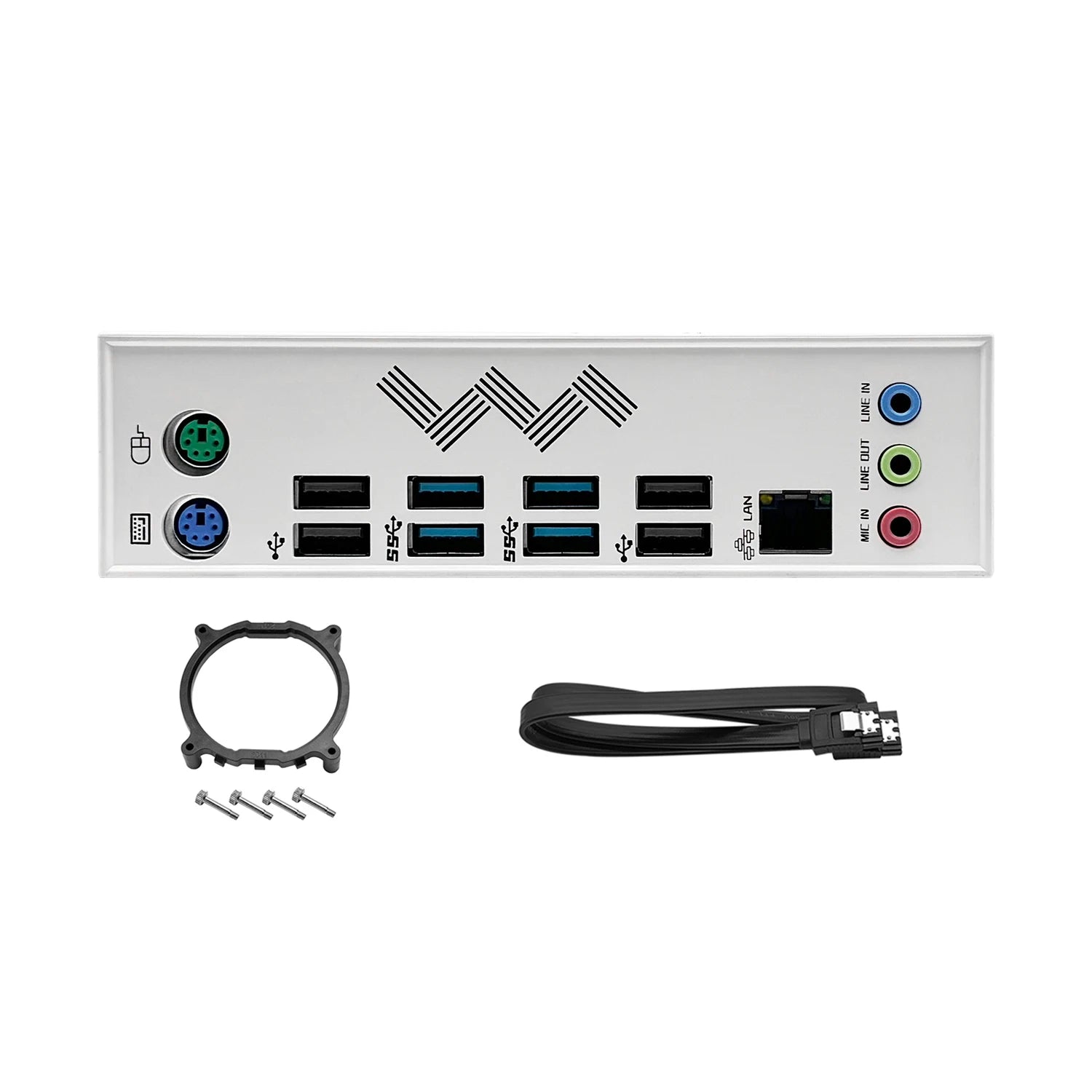

>> Included accessories: I/O shield *1, SATA cable *1, LGA 2011 heat sink *1. (!!! All items are tested manually before being packaged. If any gifts are missing, it cannot be used as a reason for a refund. Please understand!

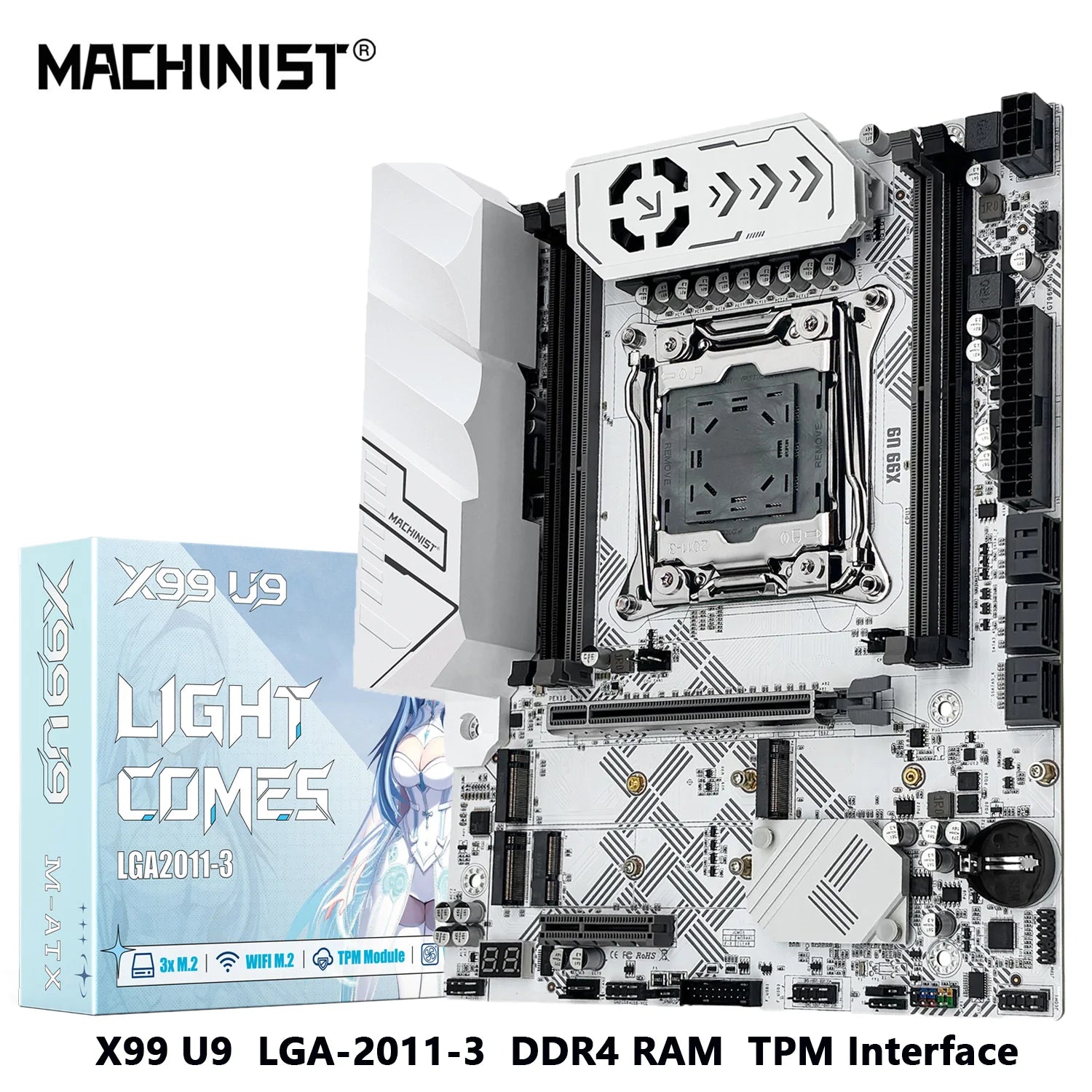

>> Motherboard Information:

Brand: MACHINIST.

Motherboard Model: X99 U9 White.

Processor: Intel LGA 2011-3 Pin Series Processor.

Chipset: X99/C612 Chipset.

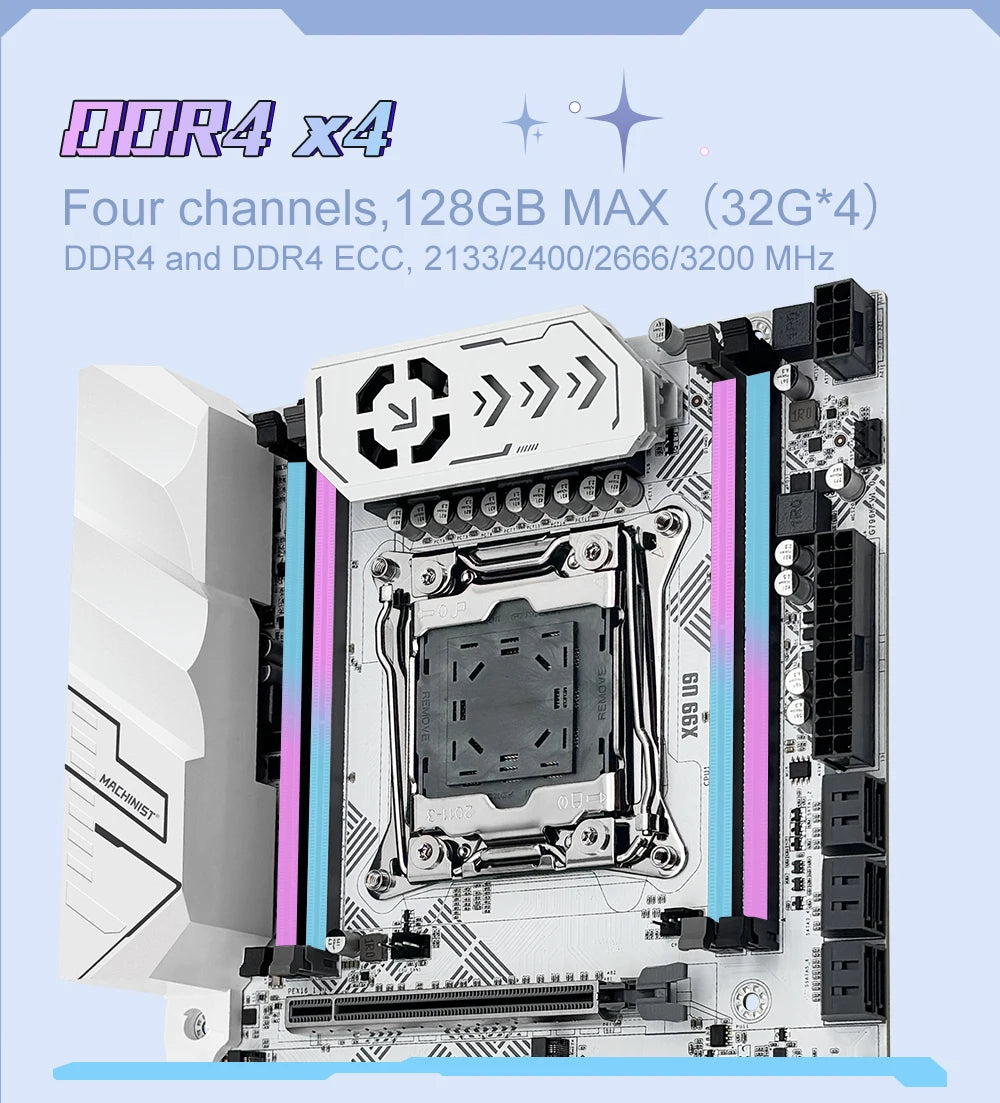

> > Memory:

Technology: Quad-channel DDR4.

Maximum capacity: 128GB (32G x 4).

Memory slots: 4*DDR4.

Supported memory types: Supports DDR4 desktop memory and server memory.

(Note: Please use international brands such as Samsung, Kingston, SanDisk, Micron, Hynix. Other brands may not be compatible.)

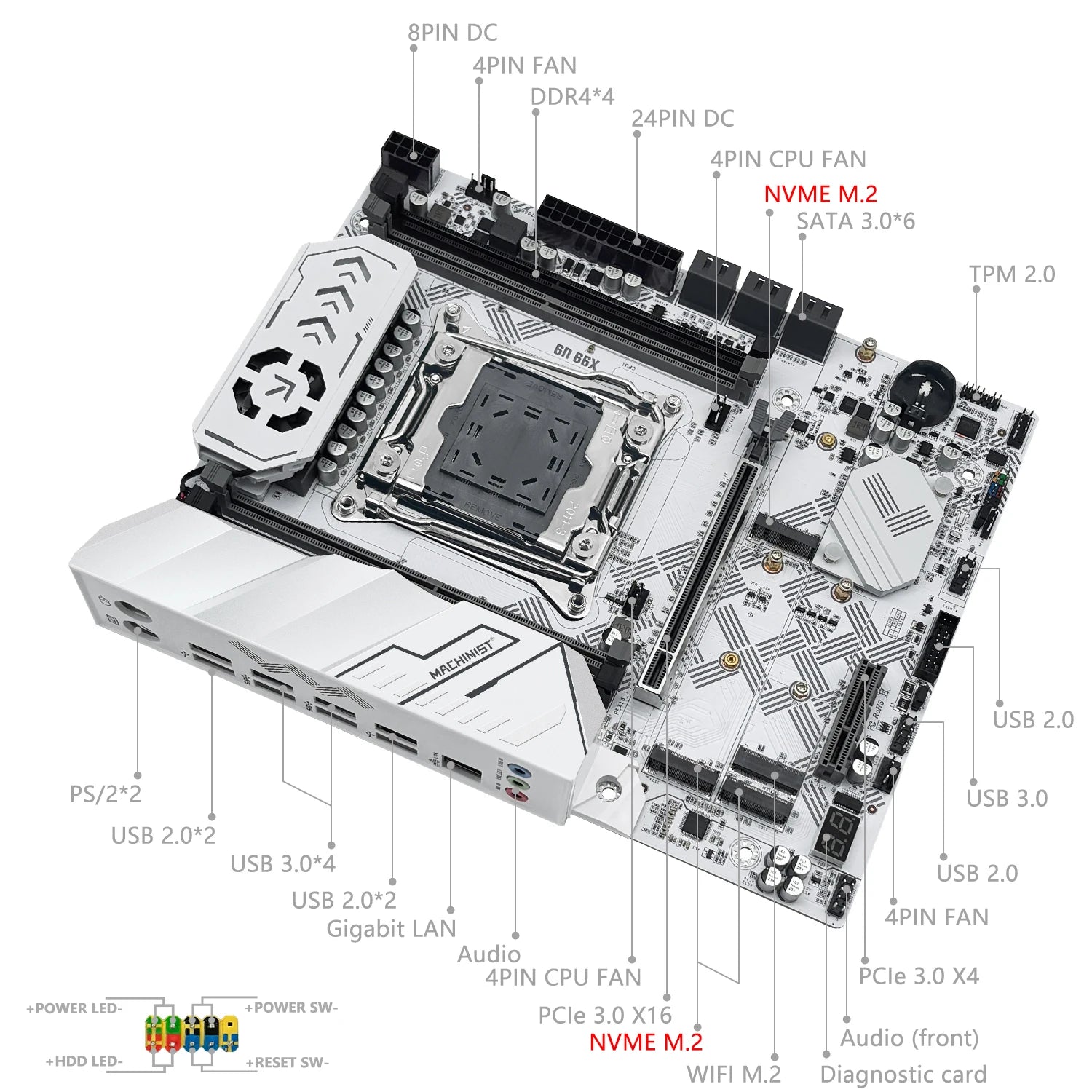

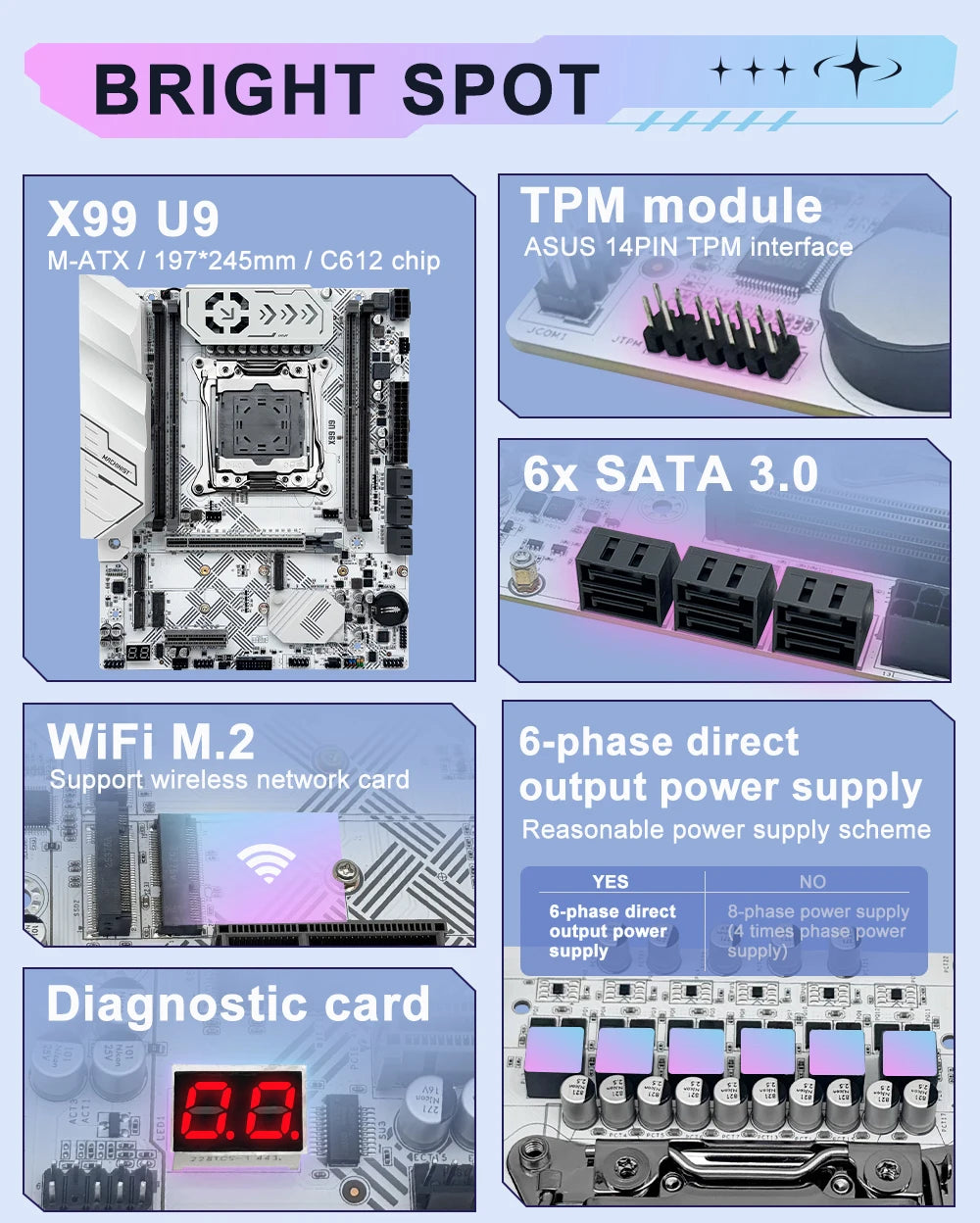

>> Other:

Diagnostic card: 1 unit;

TPM interface: Suitable for ASUS 14-pin TPM 2.0;

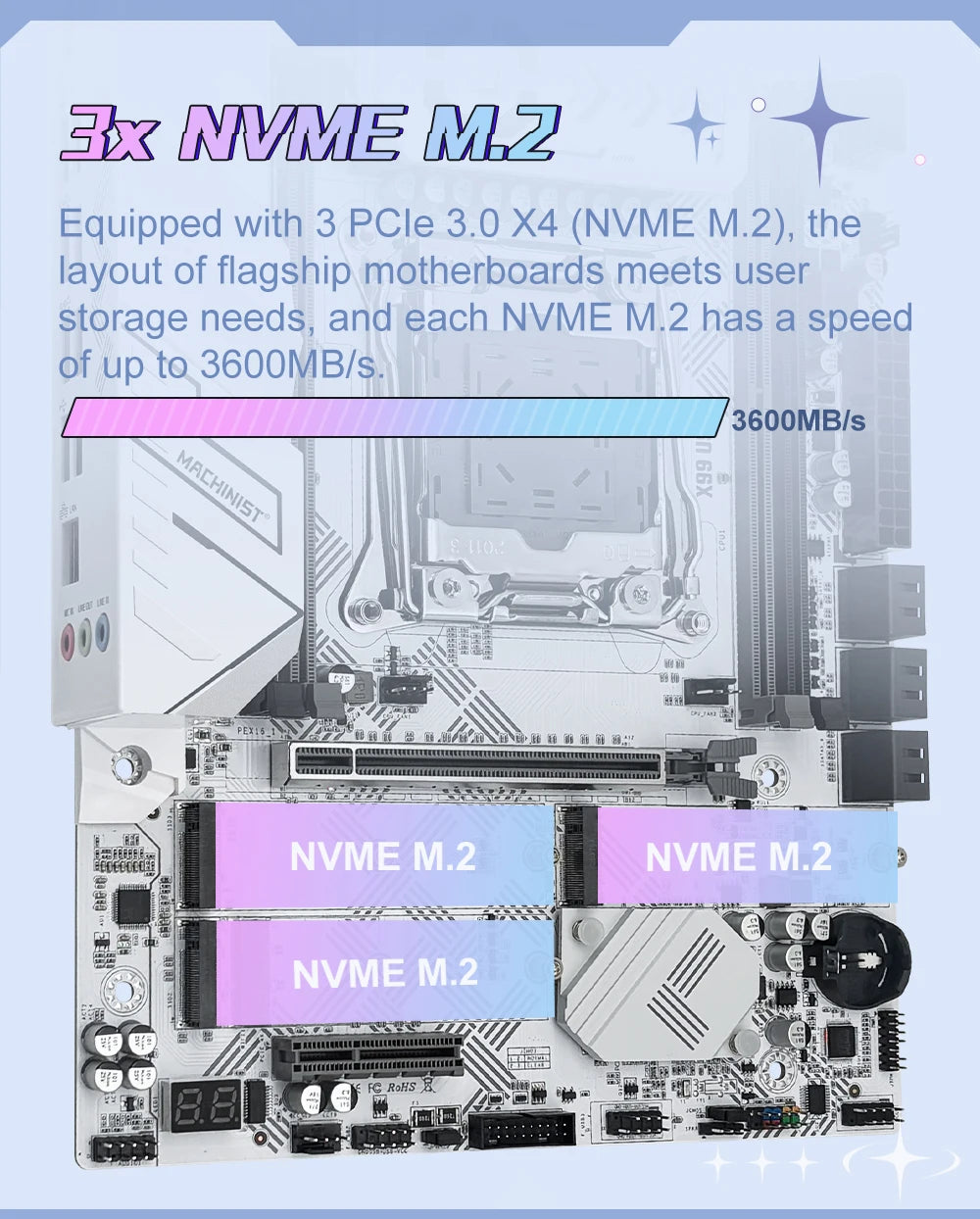

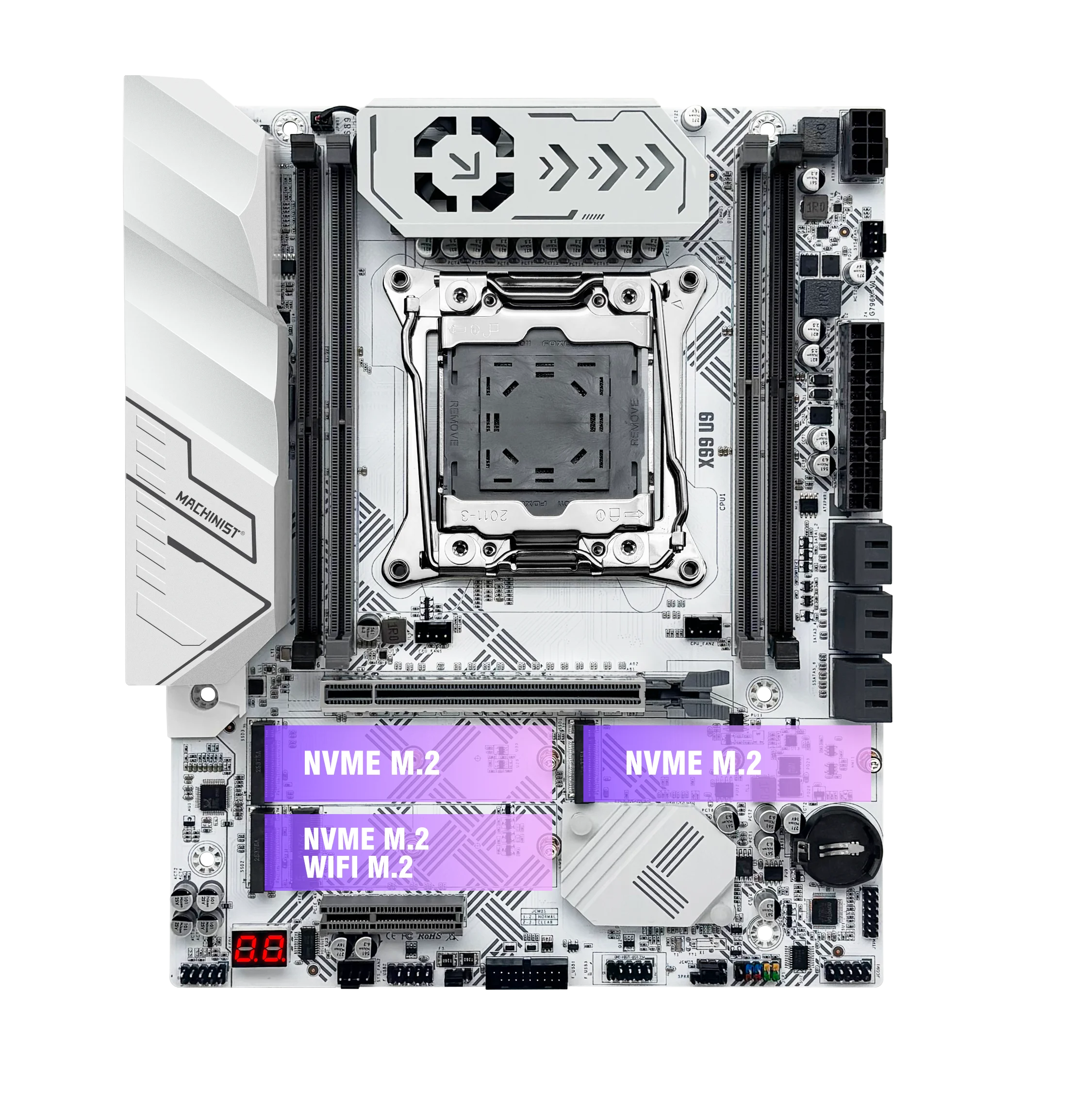

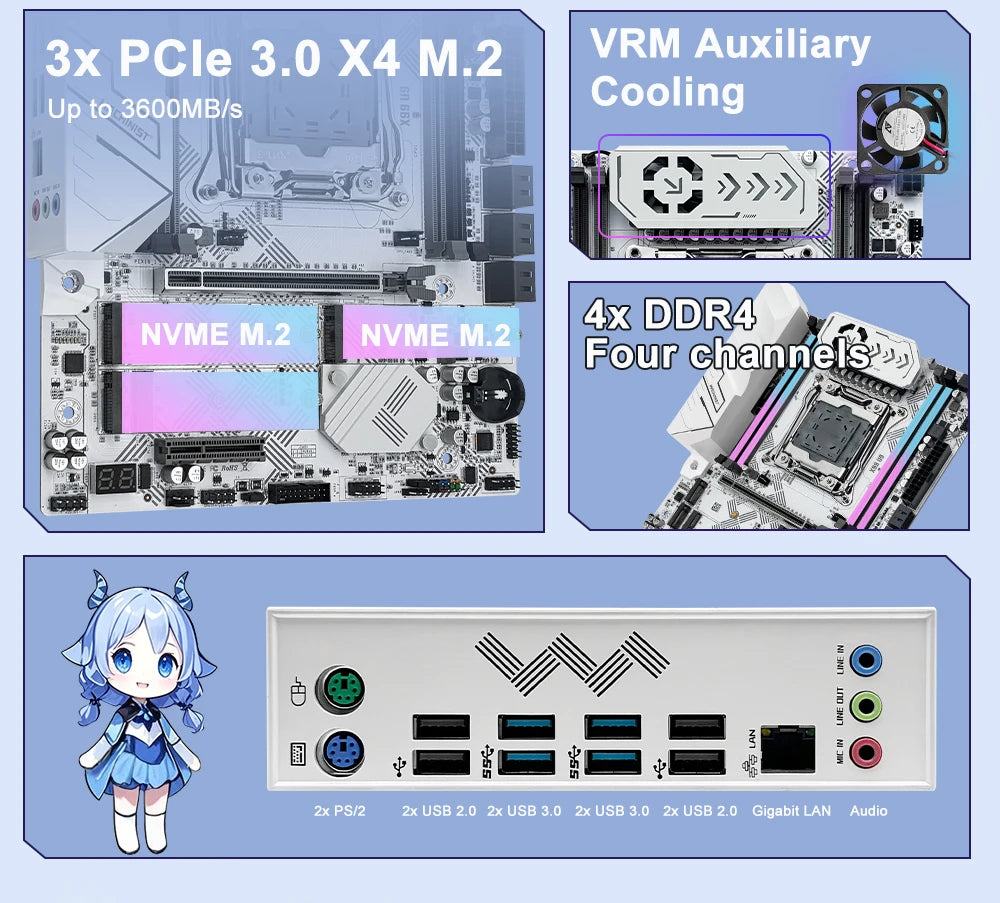

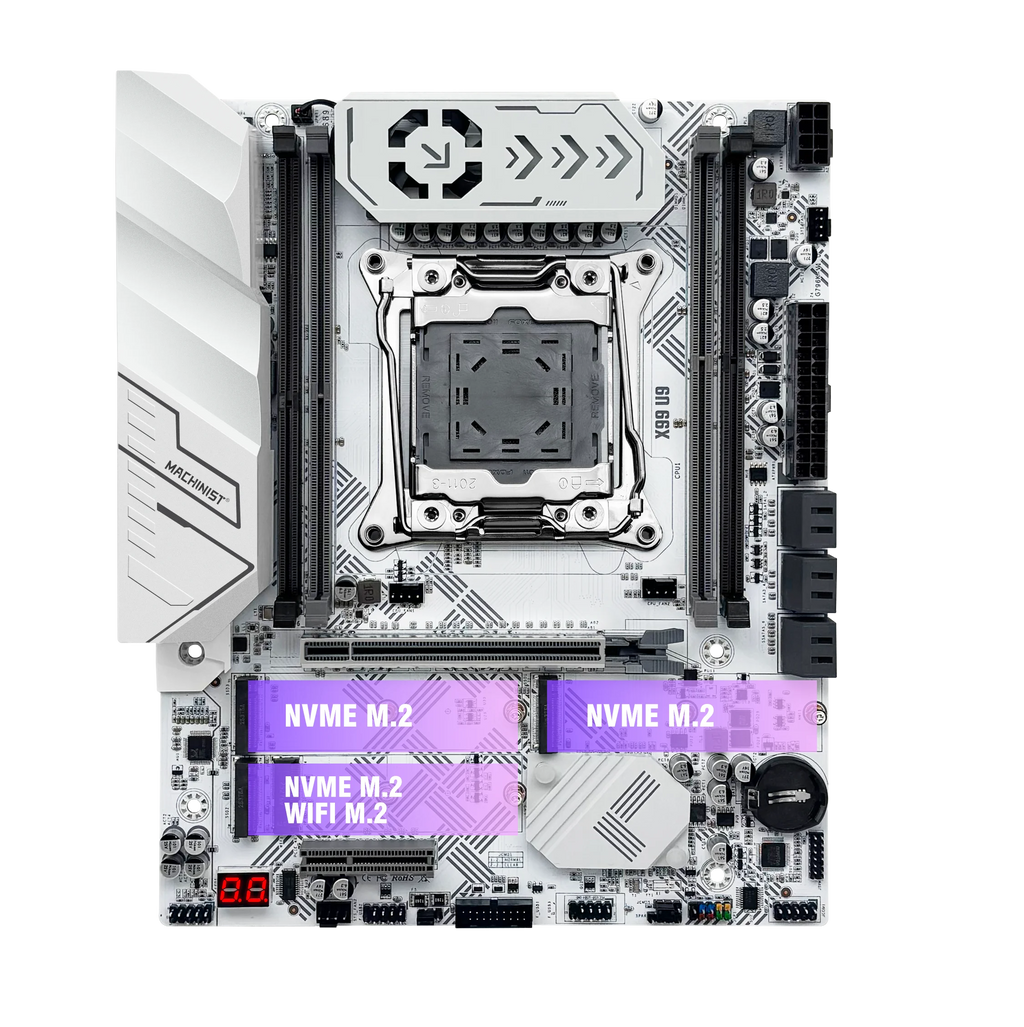

M.2 interface: NVME M.2 interface * 3;

WIFI: NGFF M.2 * 1 unit;

USB interface: 4 USB 2.0; 4 USB 3.0;

Ethernet: Gigabit network card;

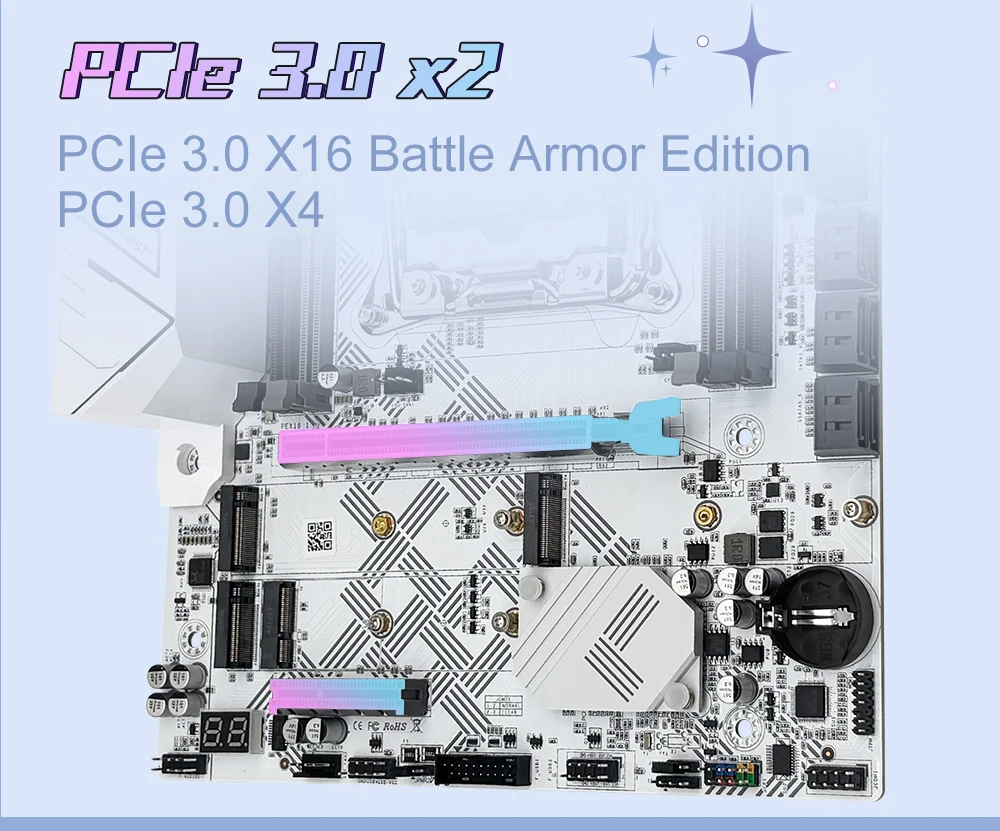

PCIe: 1 PCIe 16x, 1 PCIe 1x;

SATA interface: 6 (6 SATA 3.0);

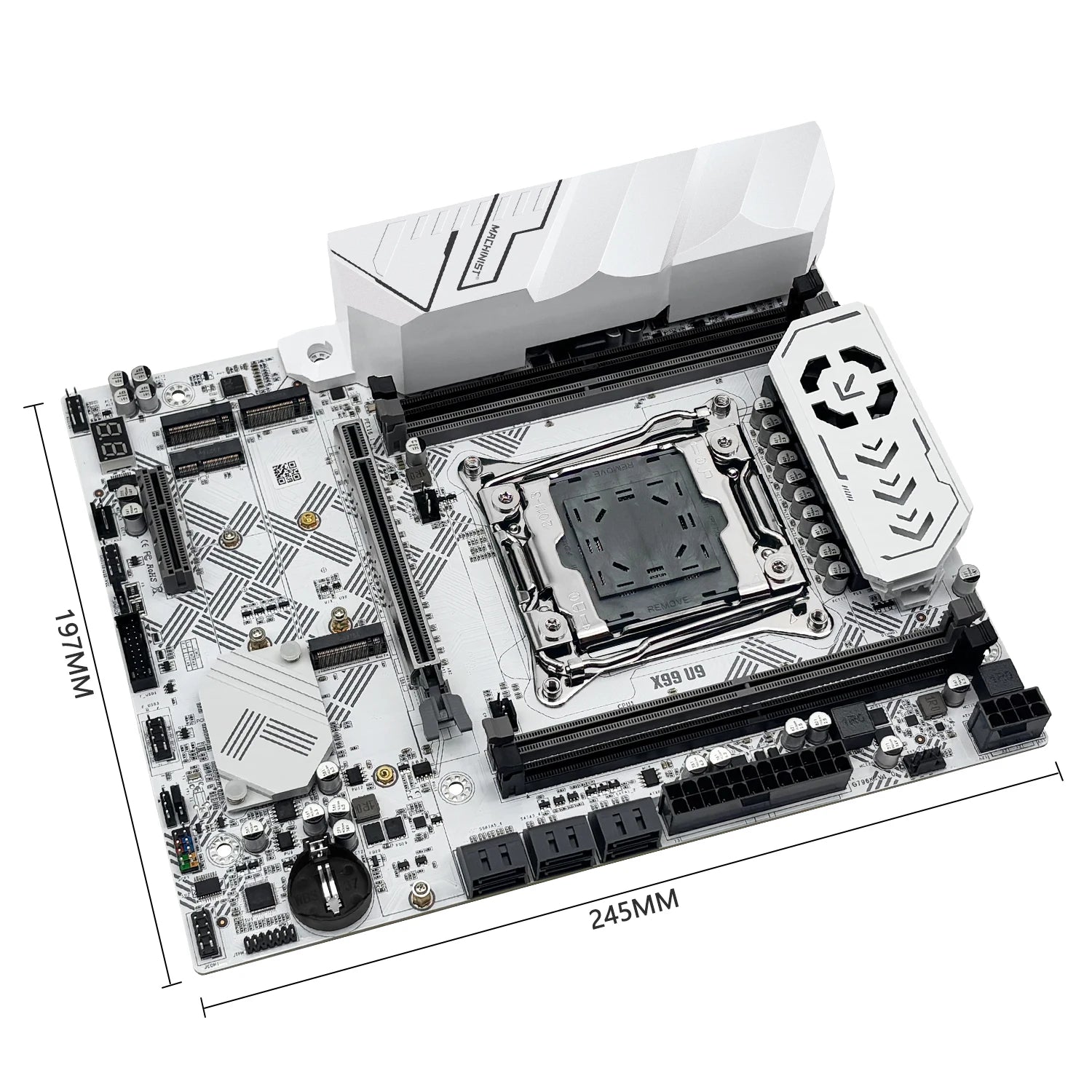

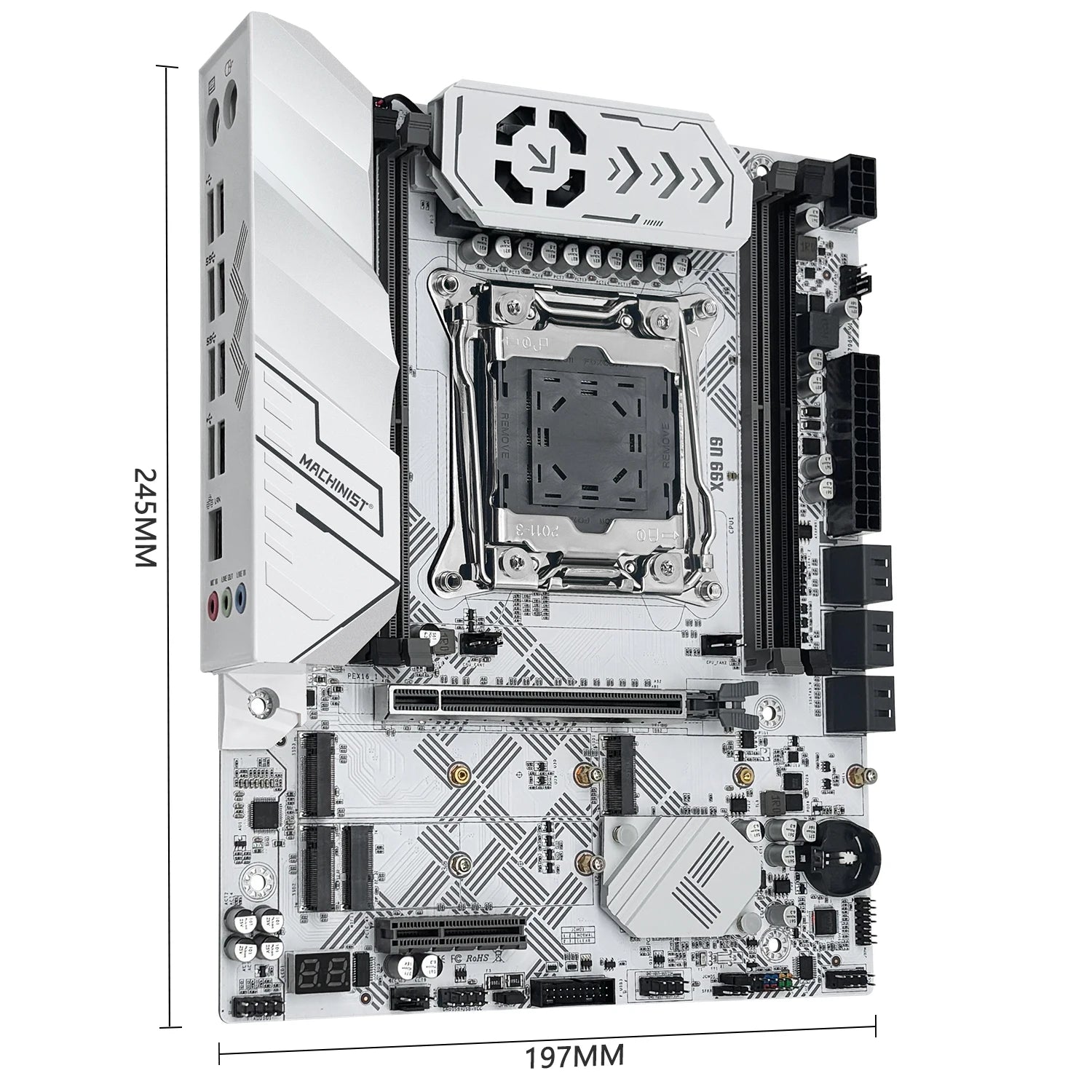

Overall dimensions: 245mm * 197mm.

>> Note:

(1) The color of the bottom plate may vary by batch, but it will not affect the use of the product. The product is constantly being optimized and upgraded.

(2) Due to manual measurement, please allow for an error of 1-3mm.

(3) Due to different displays and different light conditions, the pictures may not accurately represent the actual color of the item. Thank you for your understanding.

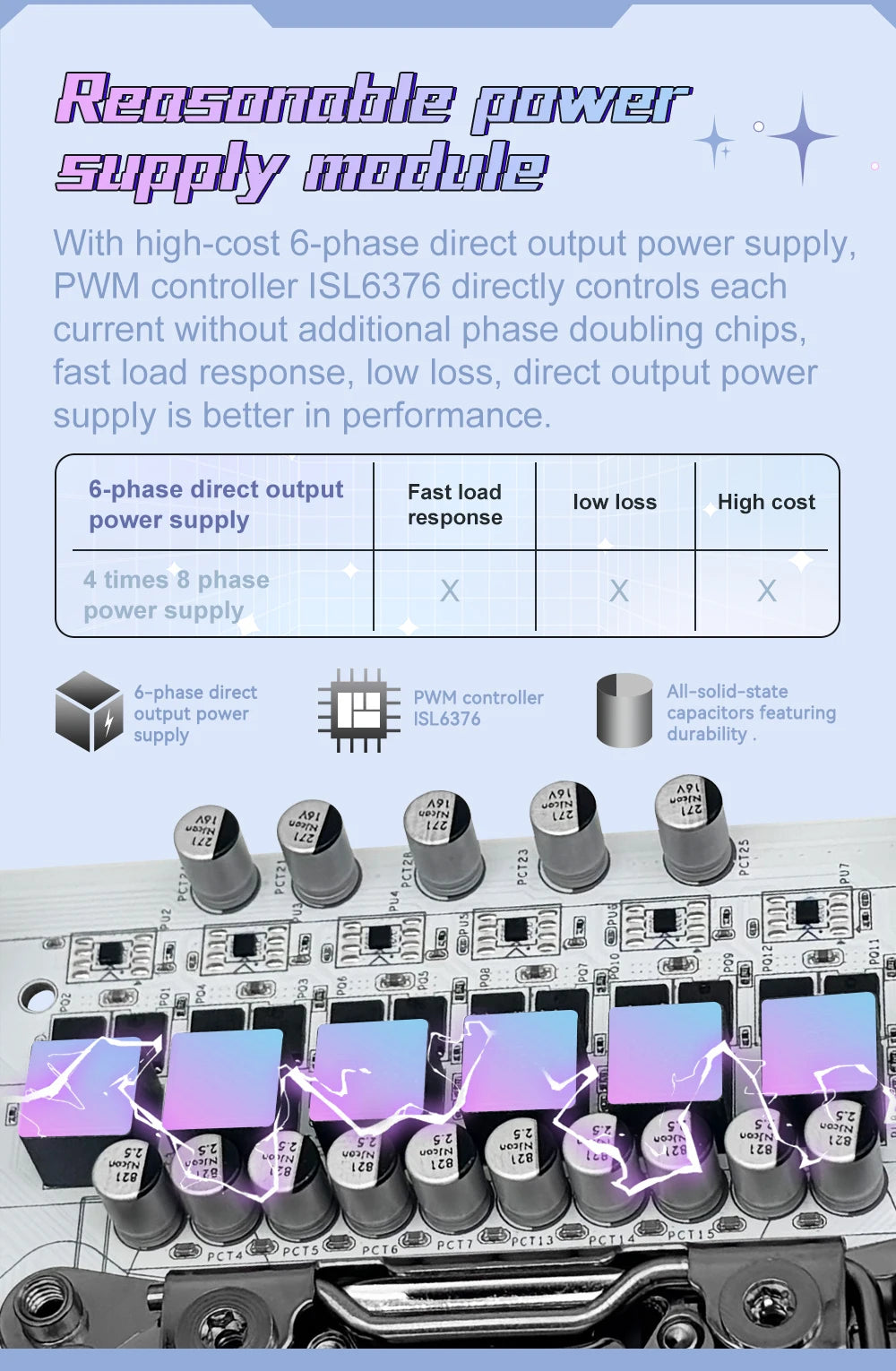

(4) This platform requires a strong power supply. Please ensure that your power supply is capable of supporting this platform. (At least a 500w brand power supply is required)

(5) The battery in the motherboard photo is not included. It will be removed before shipment as the logistics requirements prohibit the use of this battery.
