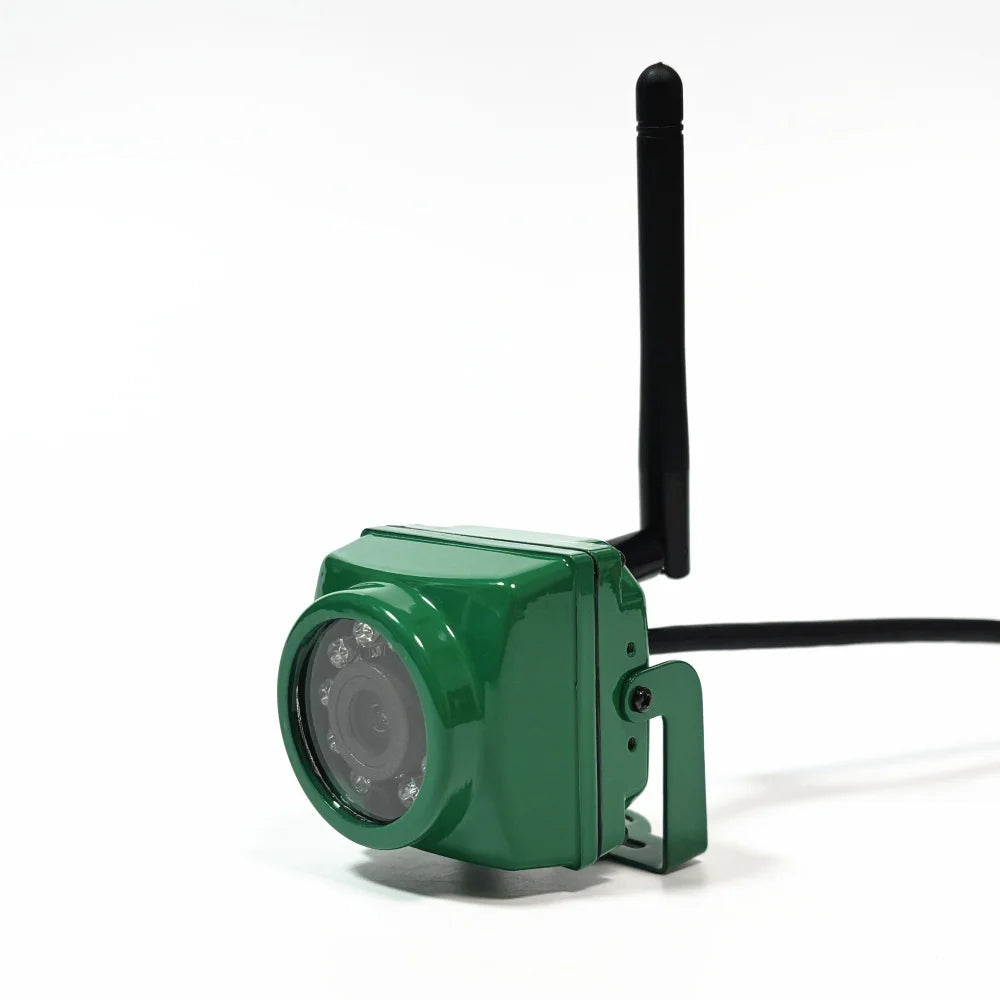

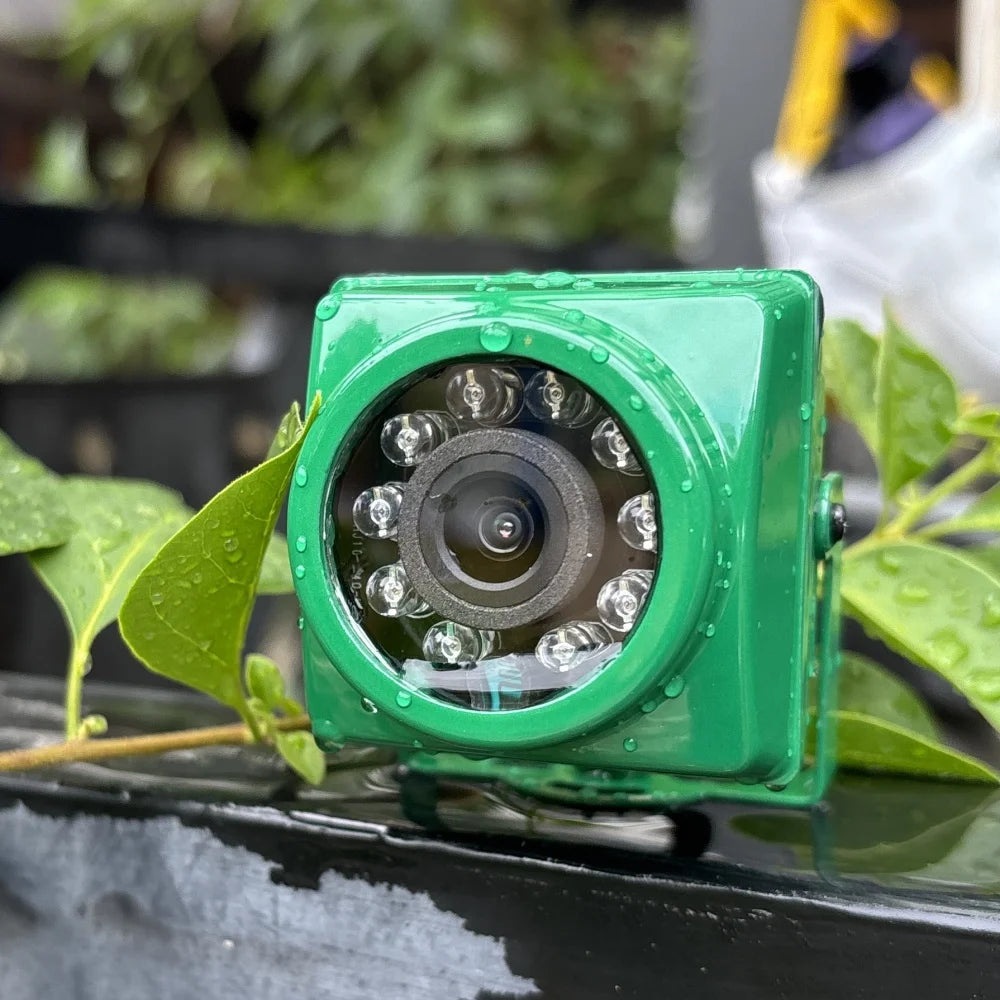

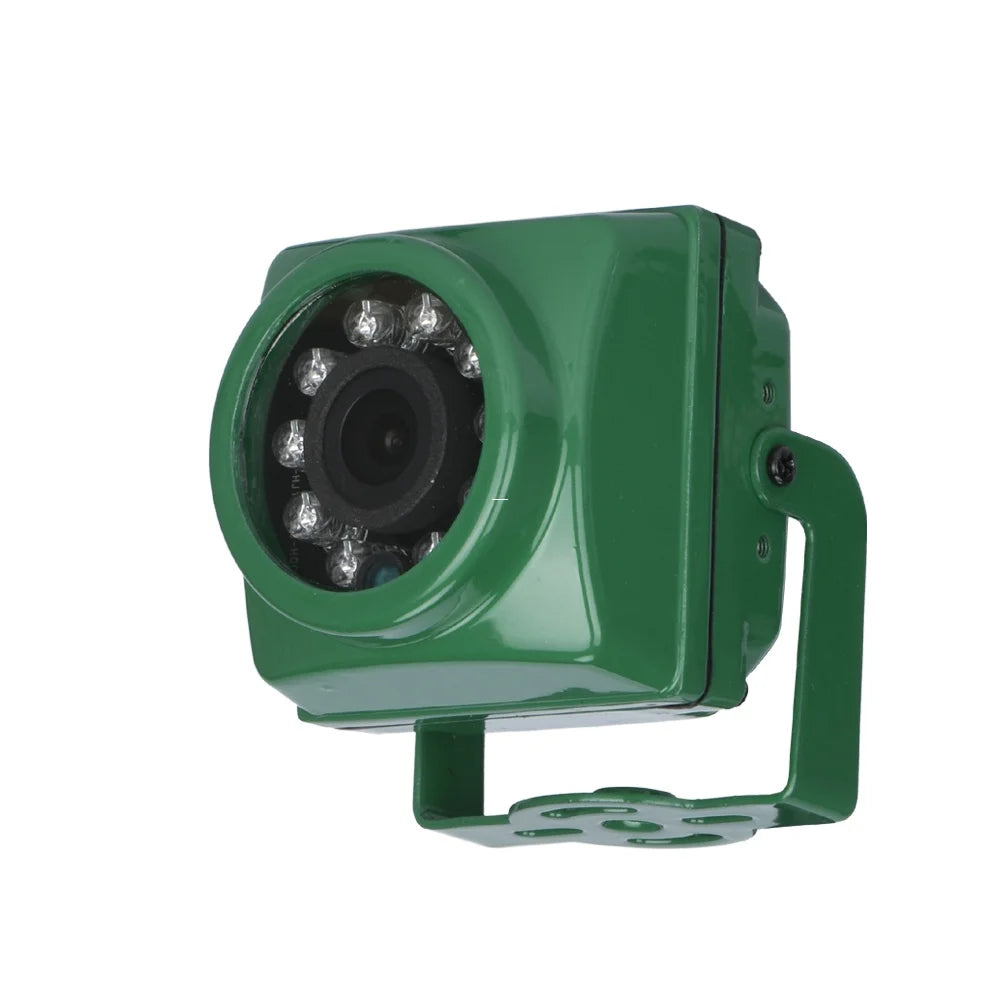

Mini 5MP Security Camera Wireless Outdoor IR CUT 940nm LED WiFi Human Detection IP65 Waterproof Birdcage pet room Wildlife Cam

5MP WIFI POE / 2.8mm

$62.63

$62.63 $0.00

Mini 5MP Security Camera Wireless Outdoor IR CUT 940nm LED WiFi Human Detection IP65 Waterproof Birdcage pet room Wildlife Cam

$62.63

$62.63 $0.00

Sensor Size 5MP WIFI POE 5MP WIFI POE 1 2MP WIFI POE 2MP WIFI POE 1 5MP WIFI 5MP WIFI 1 2MP WIFI 2MP WIFI 1

Focus2.8mm

SPECIFICATIONS

AI Functions: Motion Detection

Alarm Type: Email Photo

Brand Name: HQCAM

Camera Stabilization: NONE

Certification: CE

Choice: yes

Color: green

Color Night Vision: No

Connectivity: Closed System/CCTV Wireless

High Definition: 5.0 Megapixels

High-concerned chemical: None

IP Rating: IP66

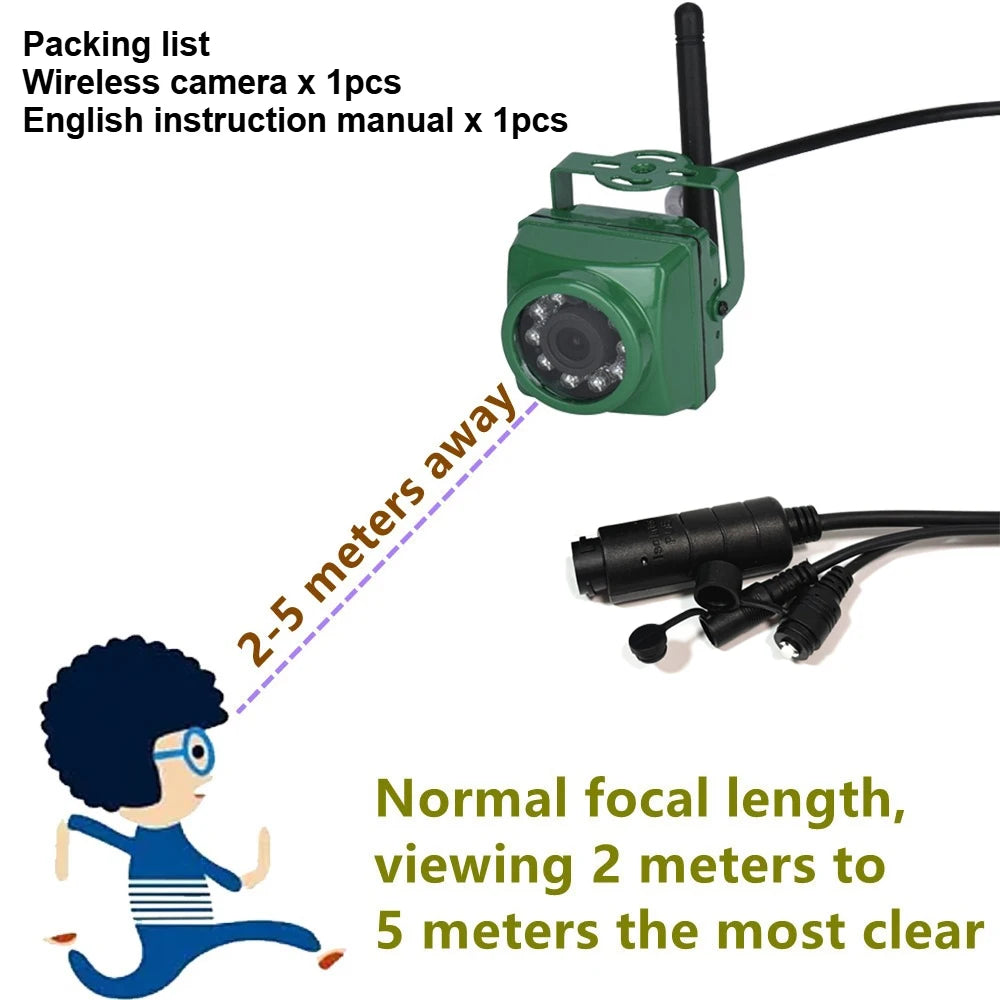

IR Distance(m): 1-5

Installation: Normal

Internal Storage: None

Lens (mm): 2.8mm

Lens Quantity: Single Lens

Megapixels: 5 MP

Operating Temperature: -10°-60°

Optical Zoom: NONE

Origin: Mainland China

Power Mode: Mains Electricity

Power Source: Normal

Power Supply: Normal

Scene: Indoor and outdoor

Shell Material: Metal

Smart home platform: NONE

Special Features: Waterproof / Weatherproof

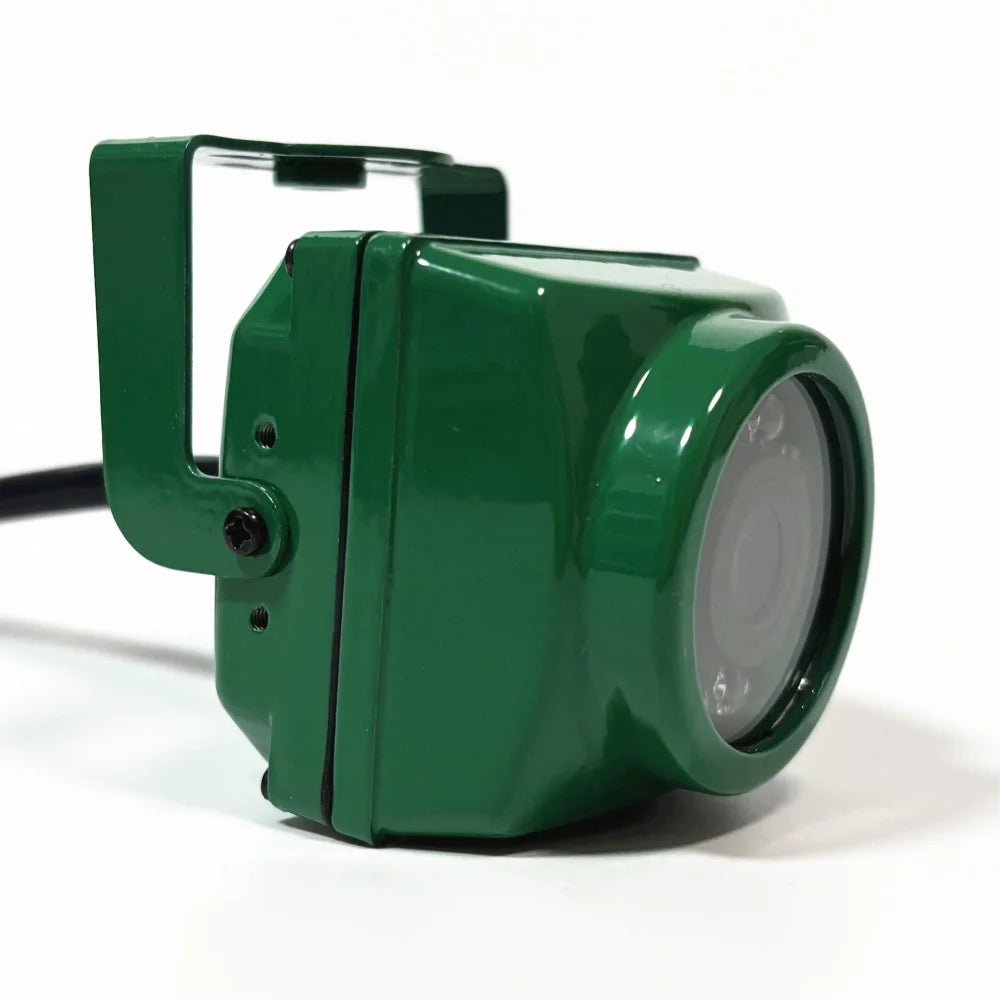

Style: Mini Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: Windows 7,Windows 8,Windows 10

TF Card: None

Video Compression Format: H.264,H.265

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: NONE

Zoom type: None

is_customized: No

NOTICE:

Our IP Camera DO NOT Included The Power Adapter,
If You Need It, Please Kindly Click The Photo As Below, Add It In Your Order List, Thanks !

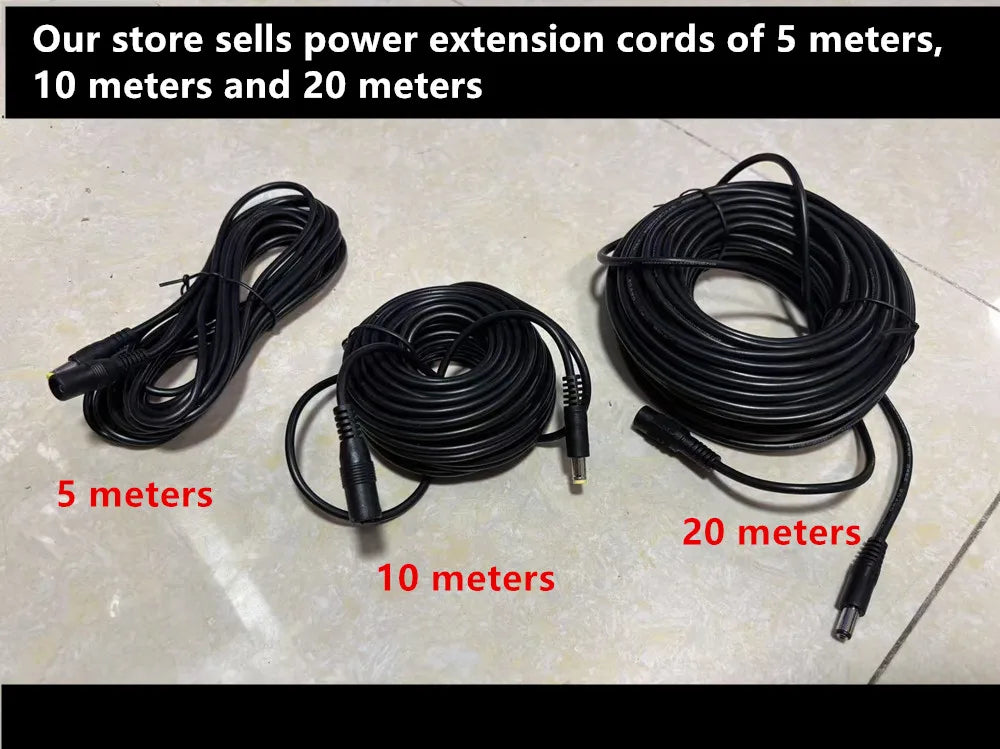

Purchase link address for DC power supply extension cables

https://www.aliexpress.us/item/3256809967490699.html?gatewayAdapt=glo2usa4itemAdapt

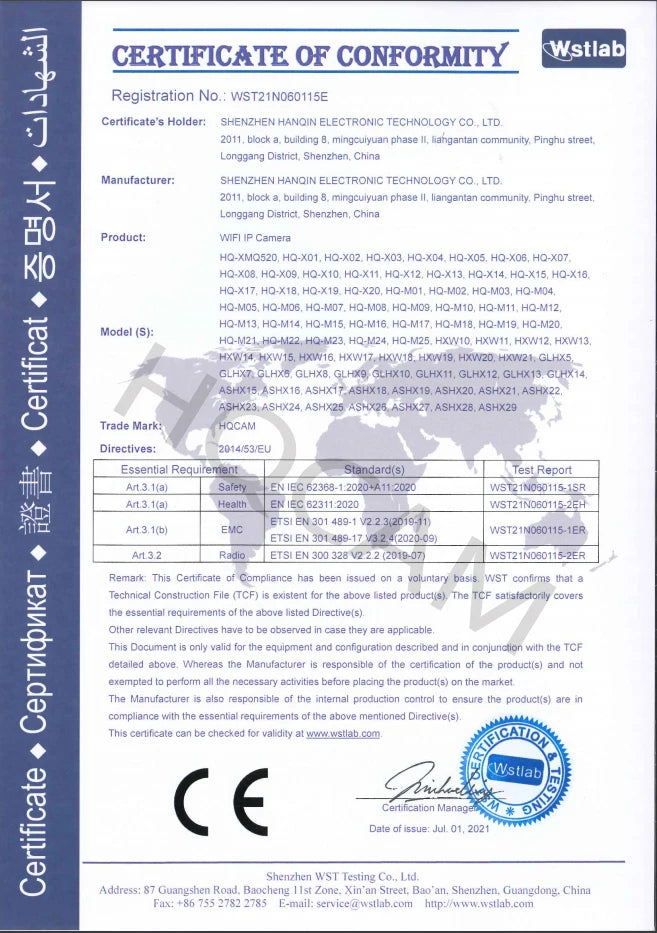

CE Certificate

RED Report-2.4G Wifi WST21N060115-2ER

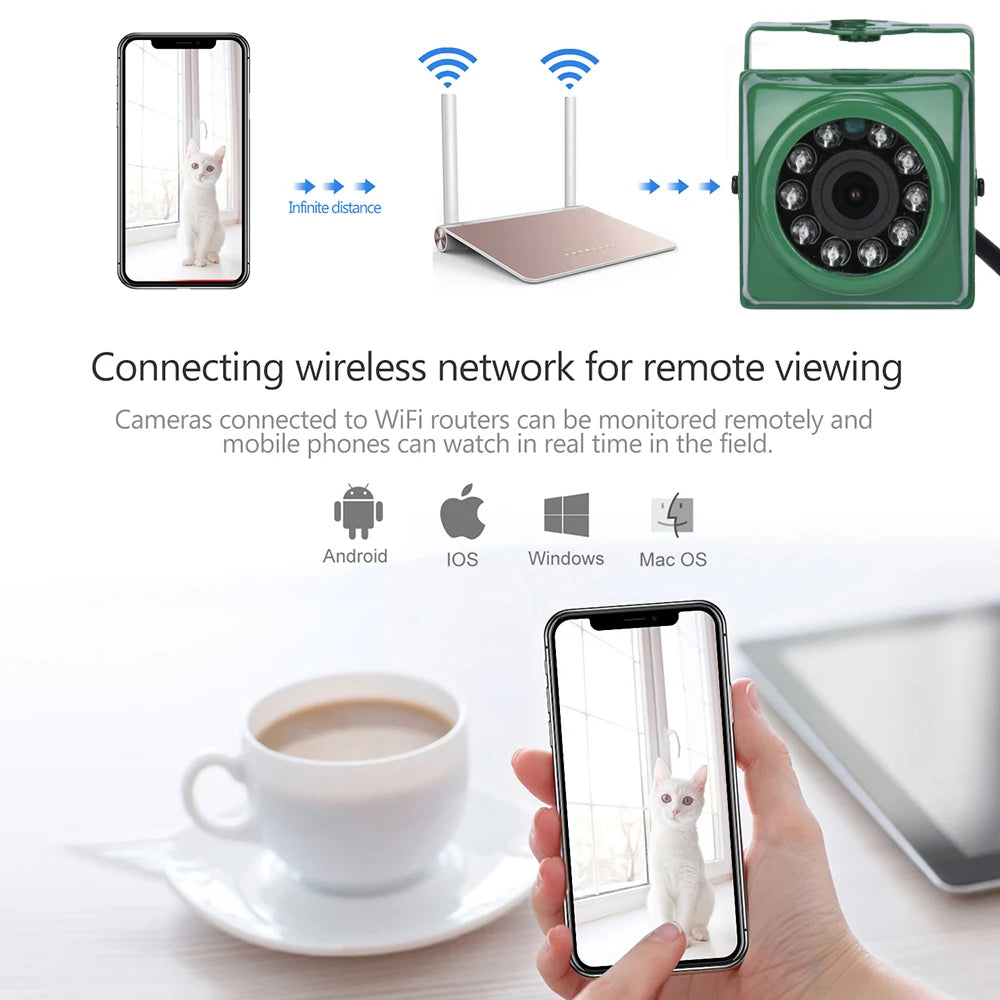

Our bird box camera with WiFi connection is our most popular camera for bringing nature indoors. Using the camhi or camhipro app you can watch nesting birds on your smartphone or tablet in HD.

It’s straightforward to set up: simply connect up the power, mount the camera in your bird box and connect to your WiFi network. You can stream the camera live on your device, watch pre-recorded footage, and share the best bits with friends and family.

The camera supports outdoor use and has a water and dust resistance rating of IP65.

Features:

Support both WiFi connection and wired cable connection

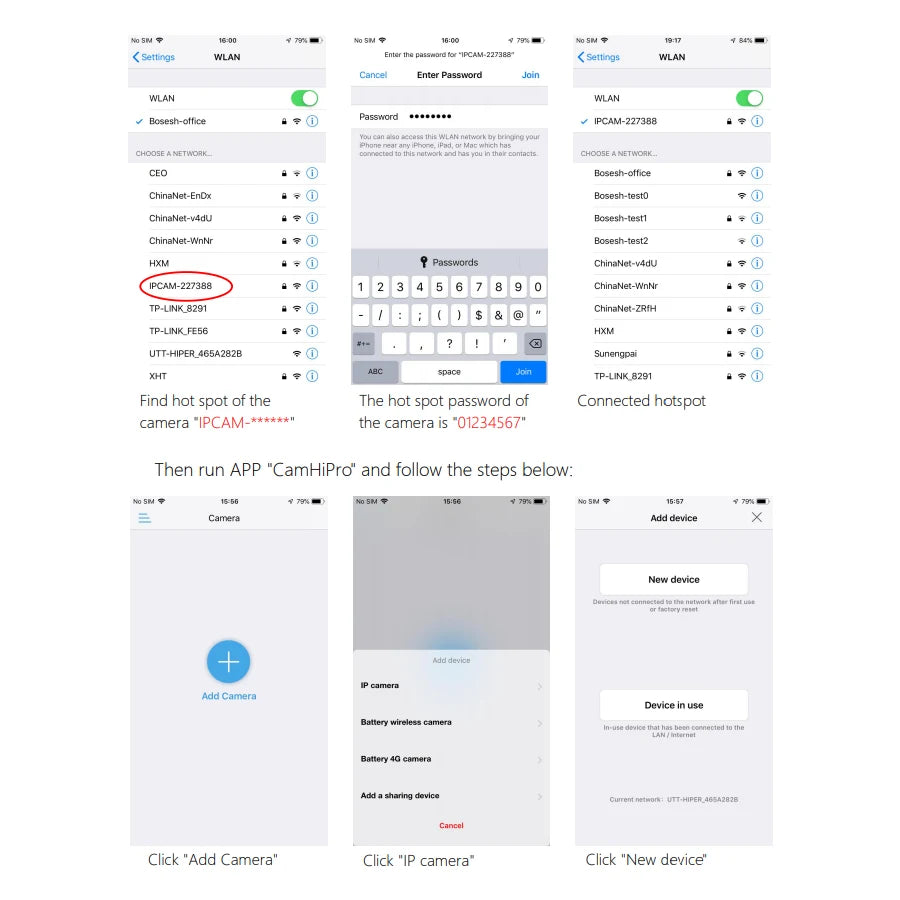

Support Acess Point (AP WiFi) connection, you can connect camera by AP mode and live view / playback/ control pan tilt zoom even without internet

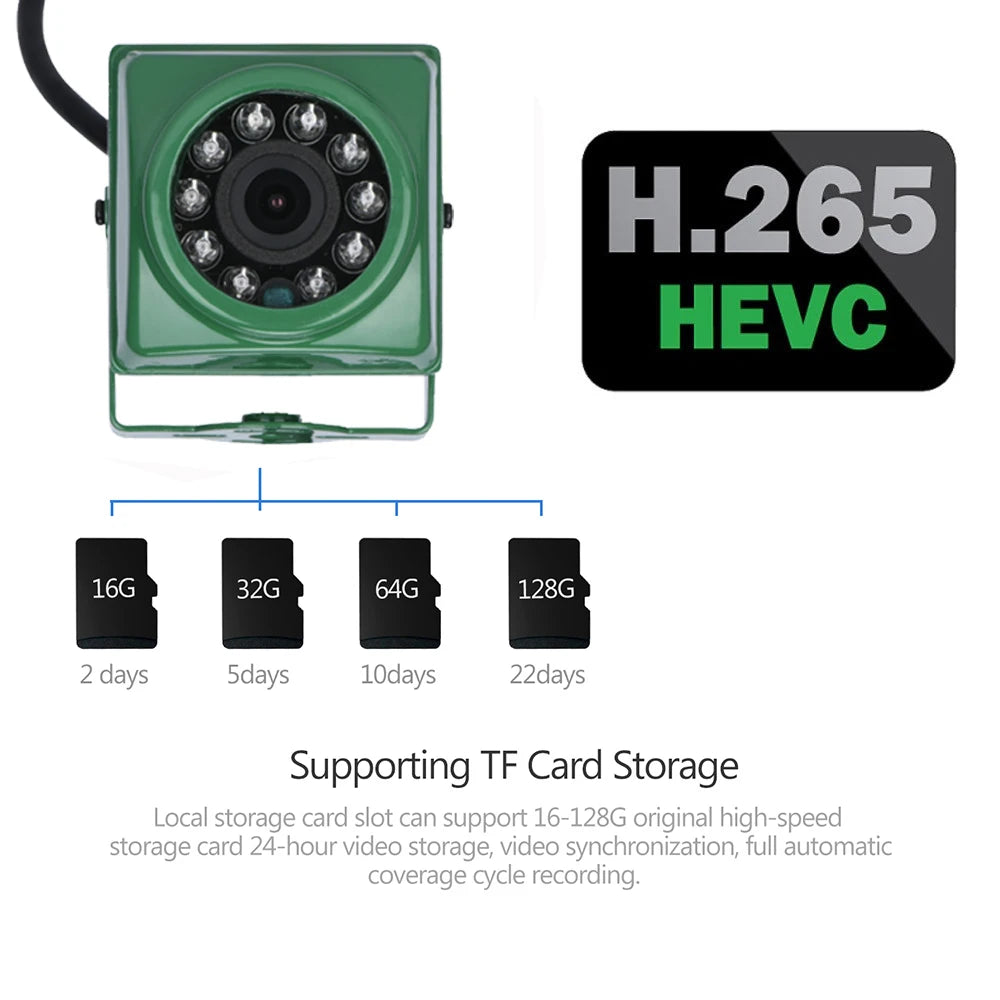

Camera built in memory card slot, Support TF card / micro SD card up to 128G

Support Motion detection Recording and email alarm.

Support send alarm pictures to the e-mail address,

Support upload alarm pictures and videos to the FTP server,

Support record alarm pictures and videos to Micro SD card,

Support alarm mobile phone message push

Support remote view and remote control pan tilt zoom from phone app /PC client at any time and any place

Support playback memory card records from phone app

Built in IR-CUT, Support both day and night vision,

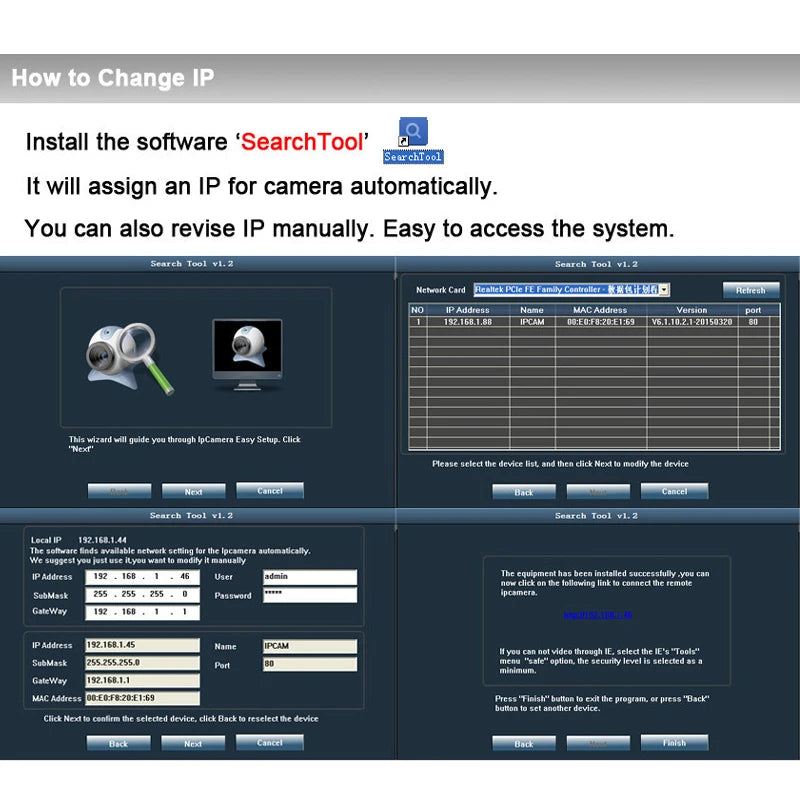

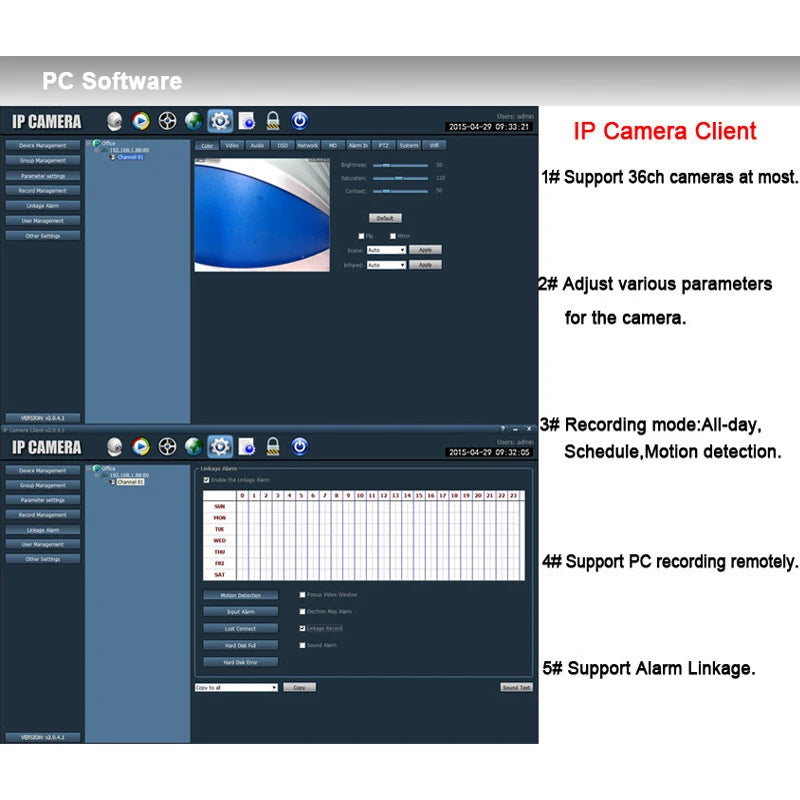

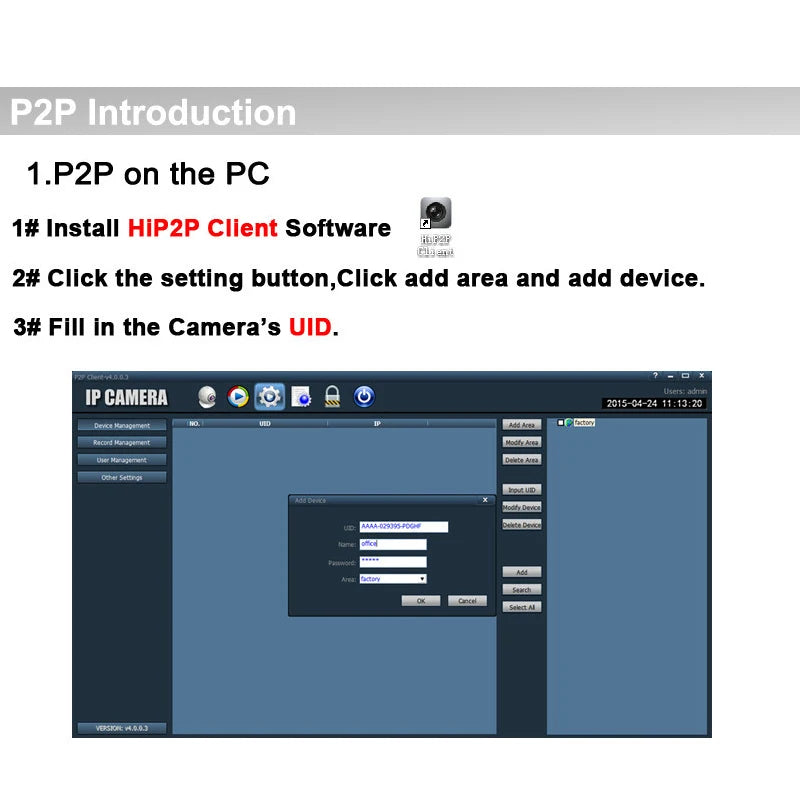

Provide android & ios APP and multi-channel CMS PC client software.

Elegant outline and easy installation.

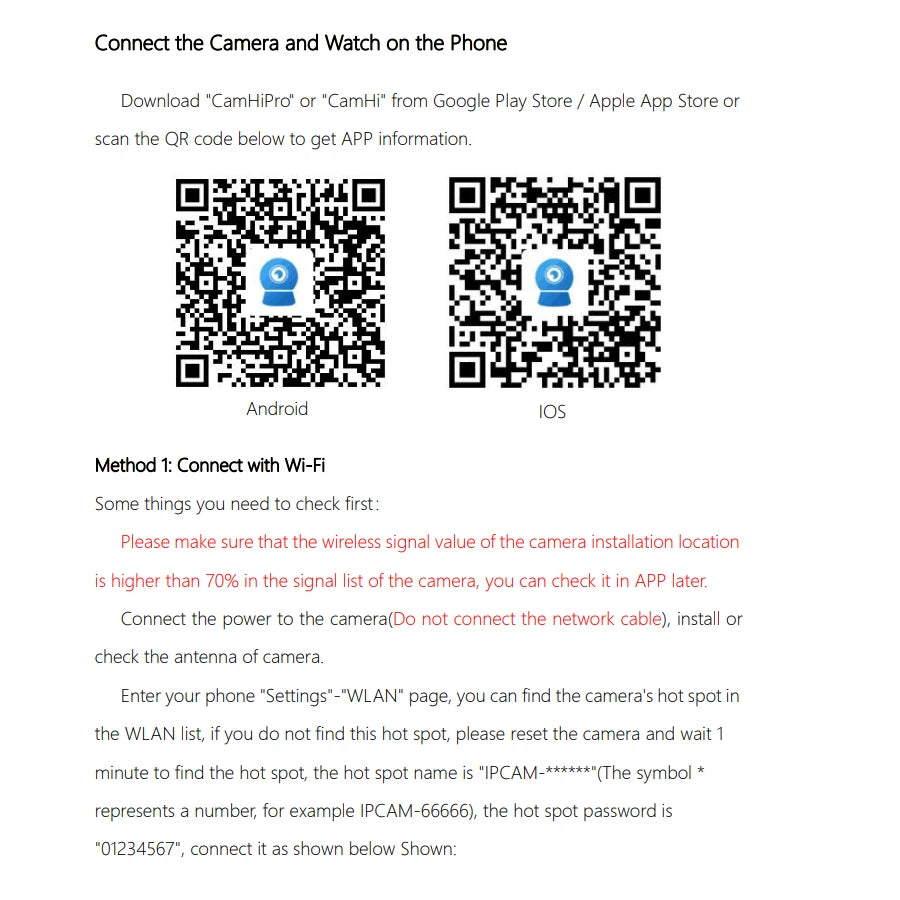

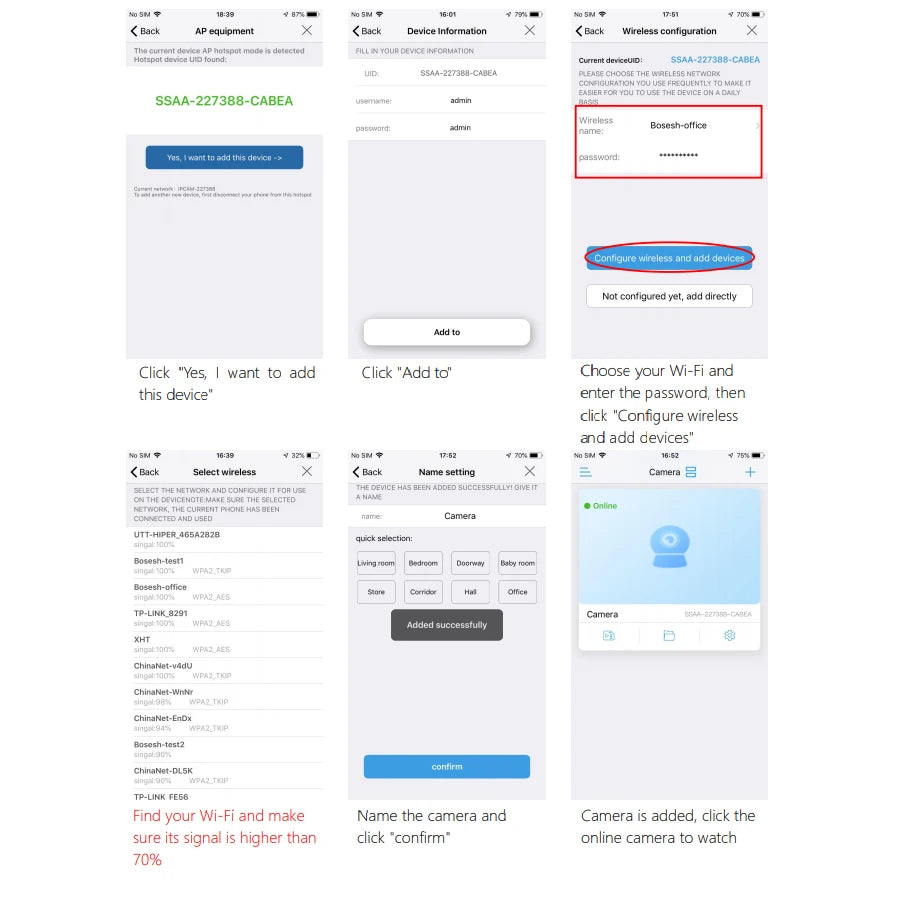

Phone app :CamHi camhipro

Support QR code login.

Support Plug n Play P2P

Support On,vif , camera can work with On,vif NVR recorder!

Different angle lens available

100 degree lens is 2.8mm,

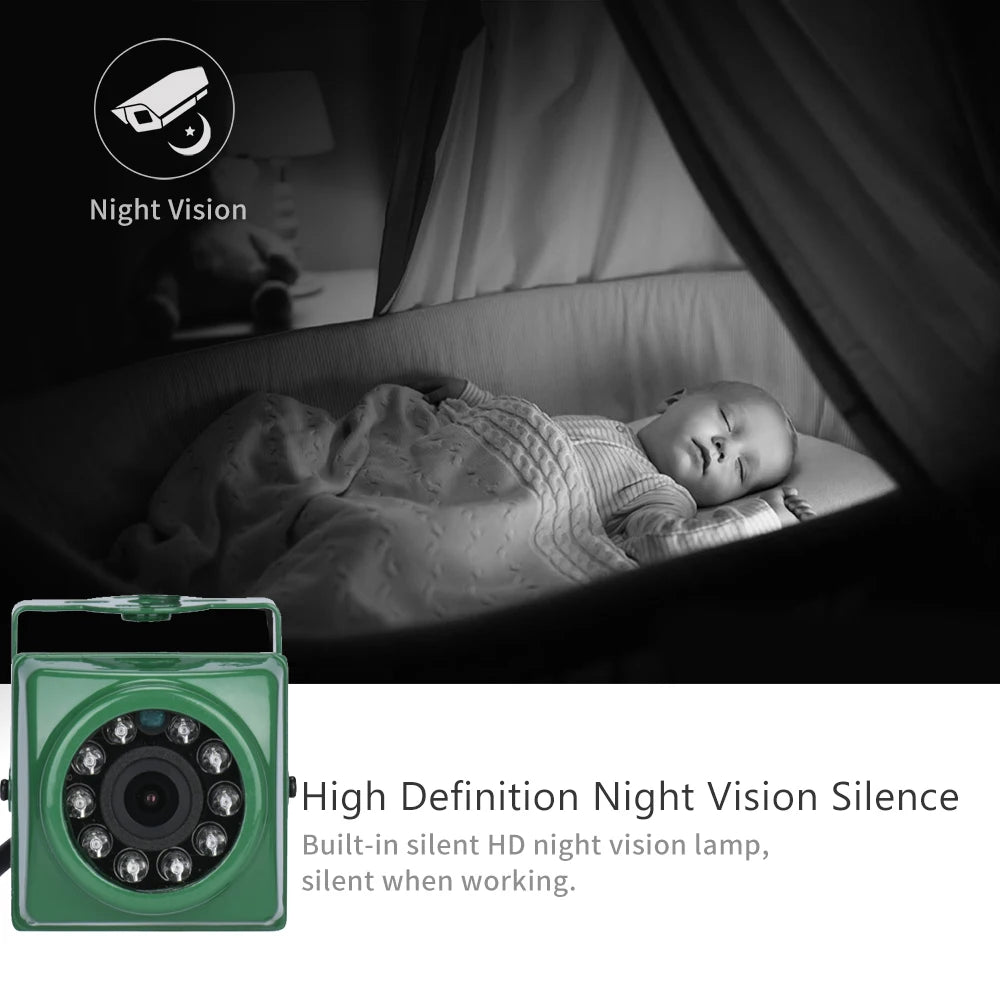

Hid-den infrared lamp

940nm infrared lamp, invisible light source to human eyes, no harm to birds and animals, very hid den

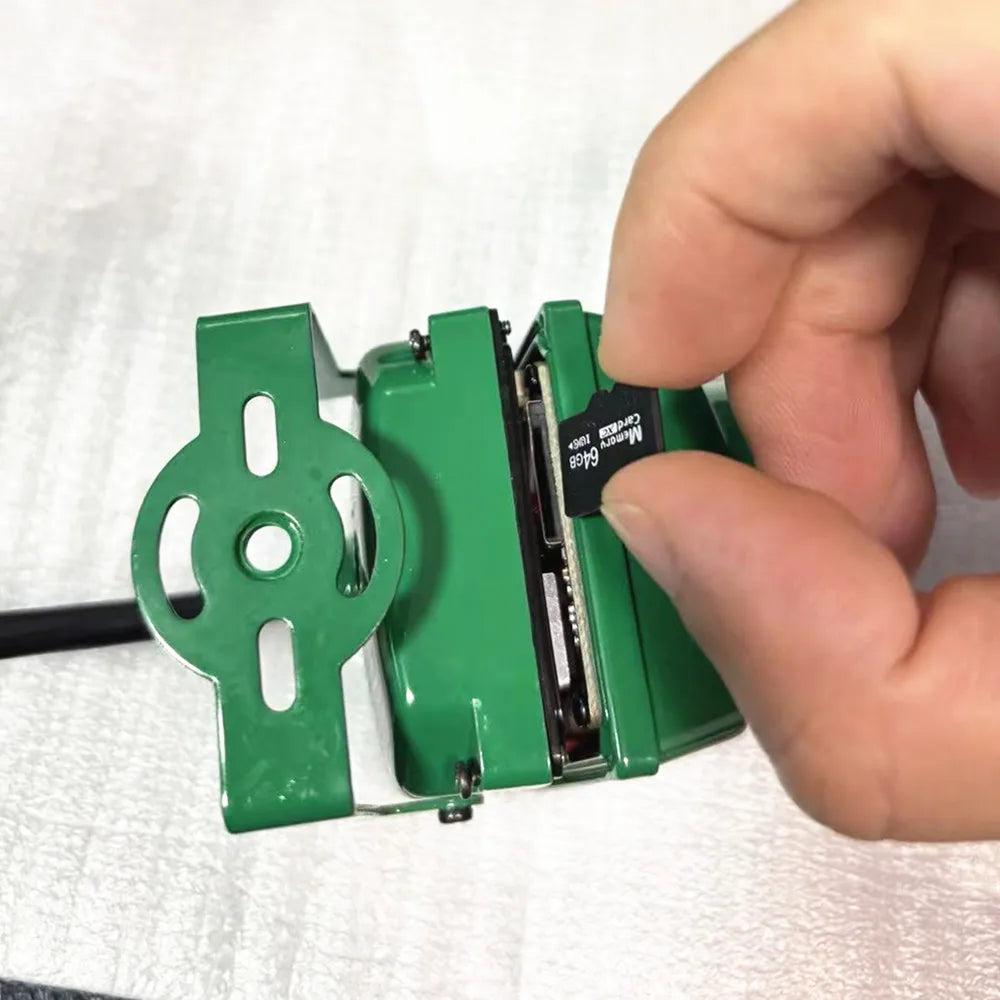

Installation method of SD card ( card)

1. Open the screws at the bottom of the shell

2. Locate the SD card slot

Supports up to 128 GB memory card

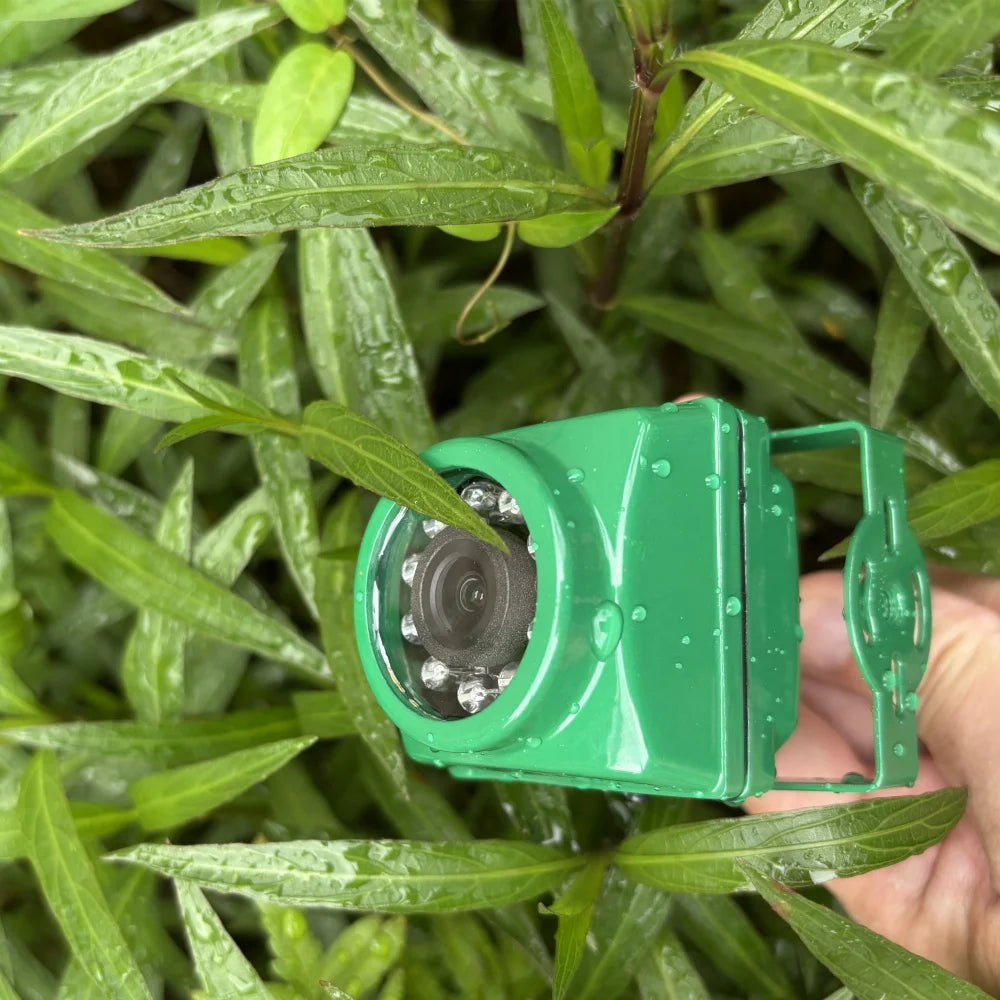

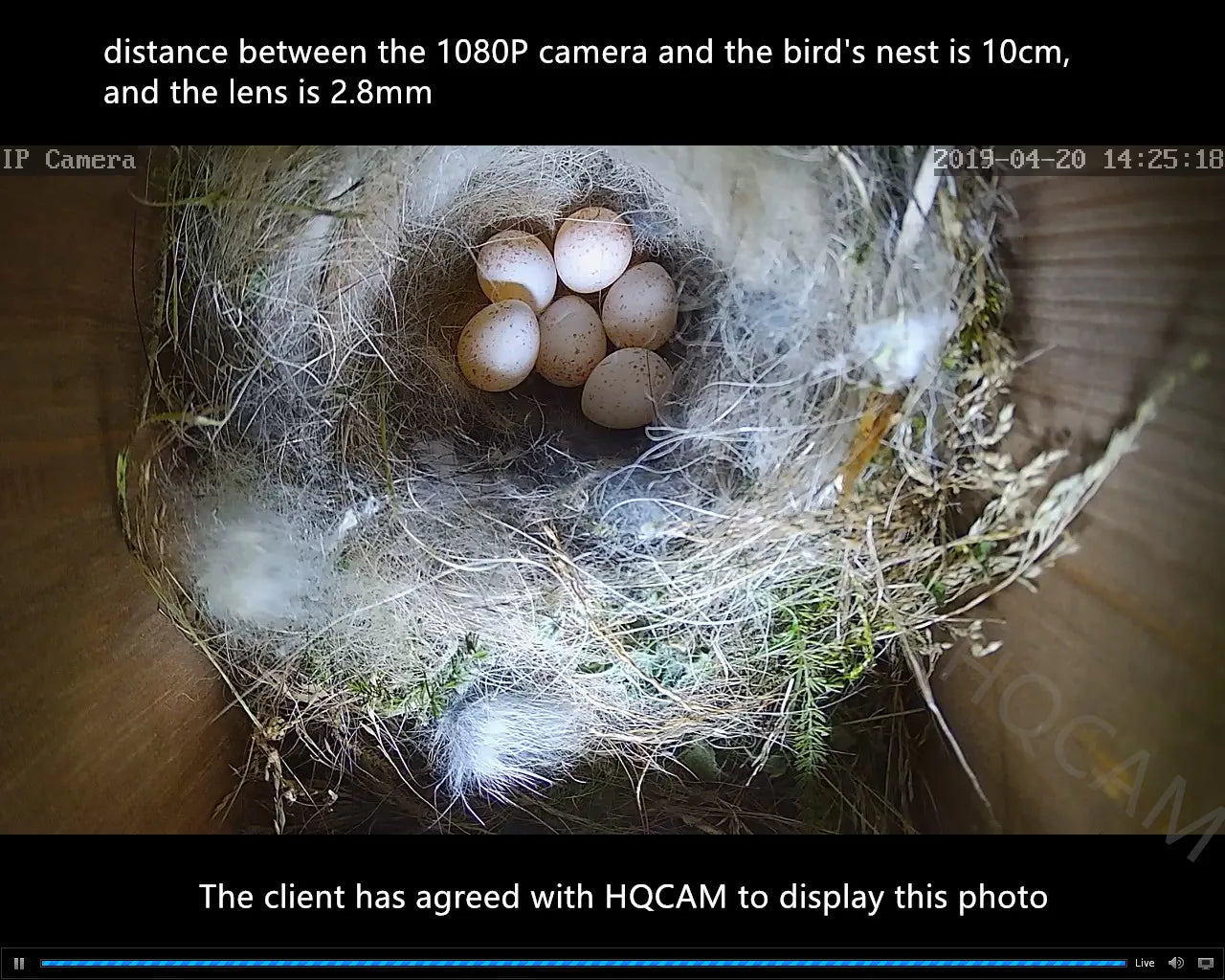

Customer real case presentation:

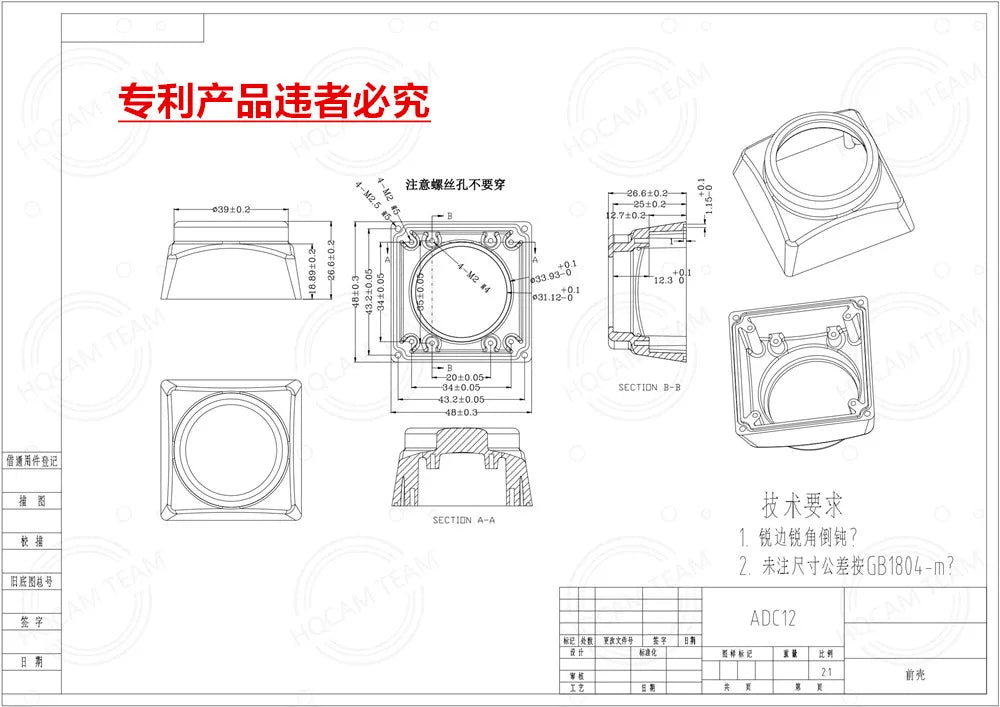

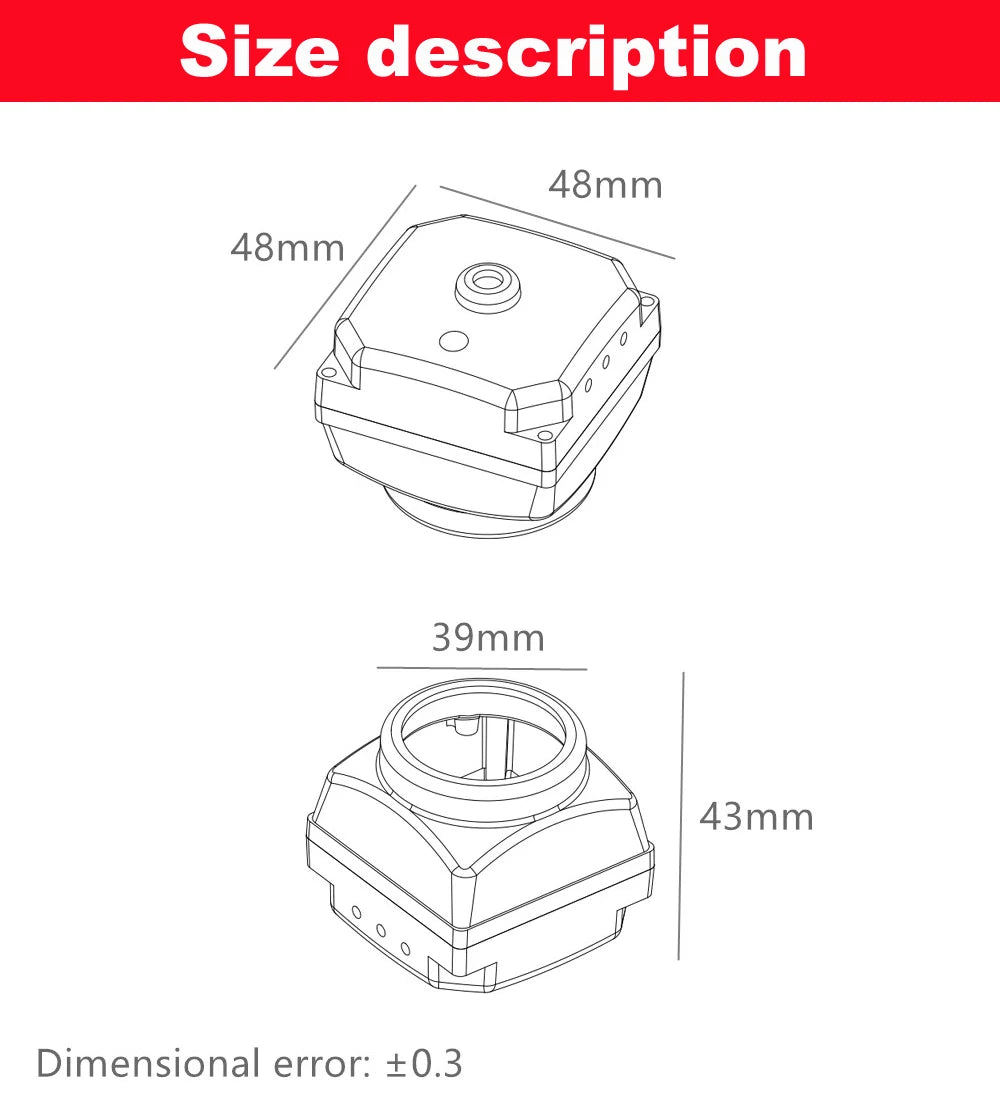

Size

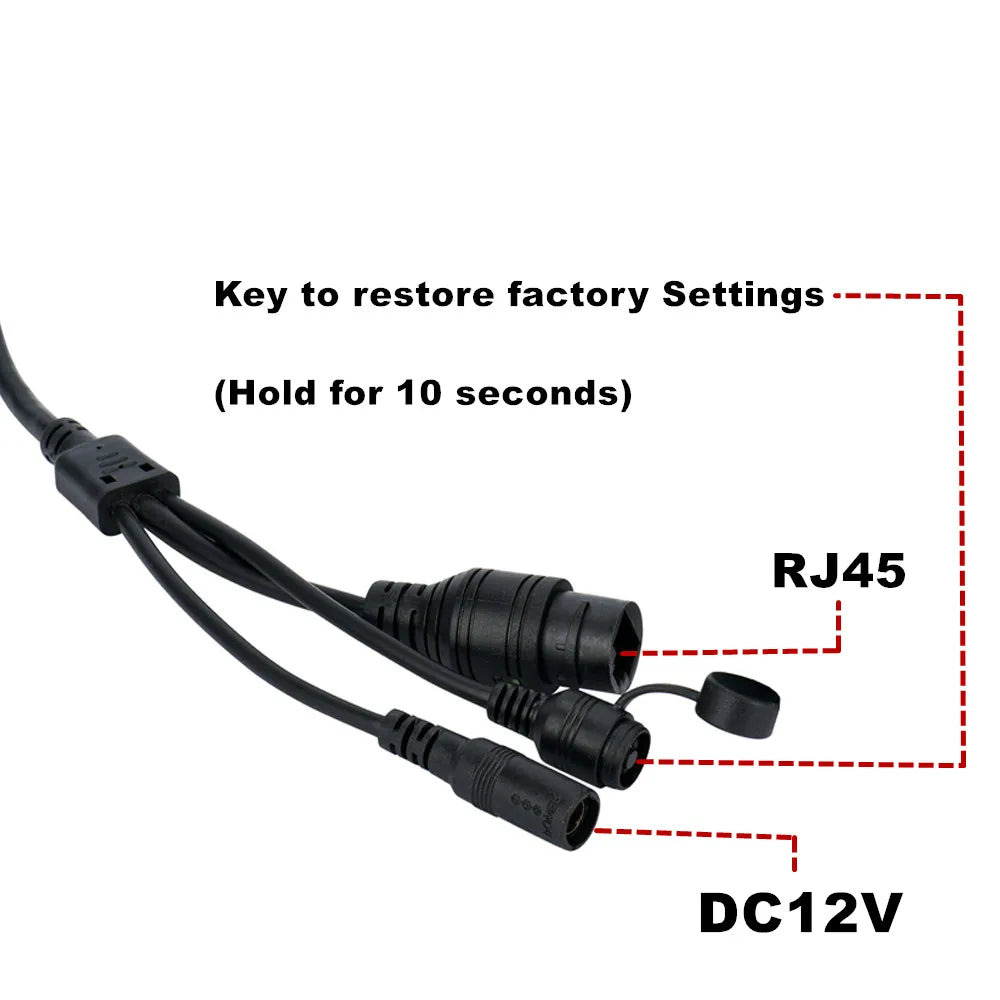

Common wire interface：

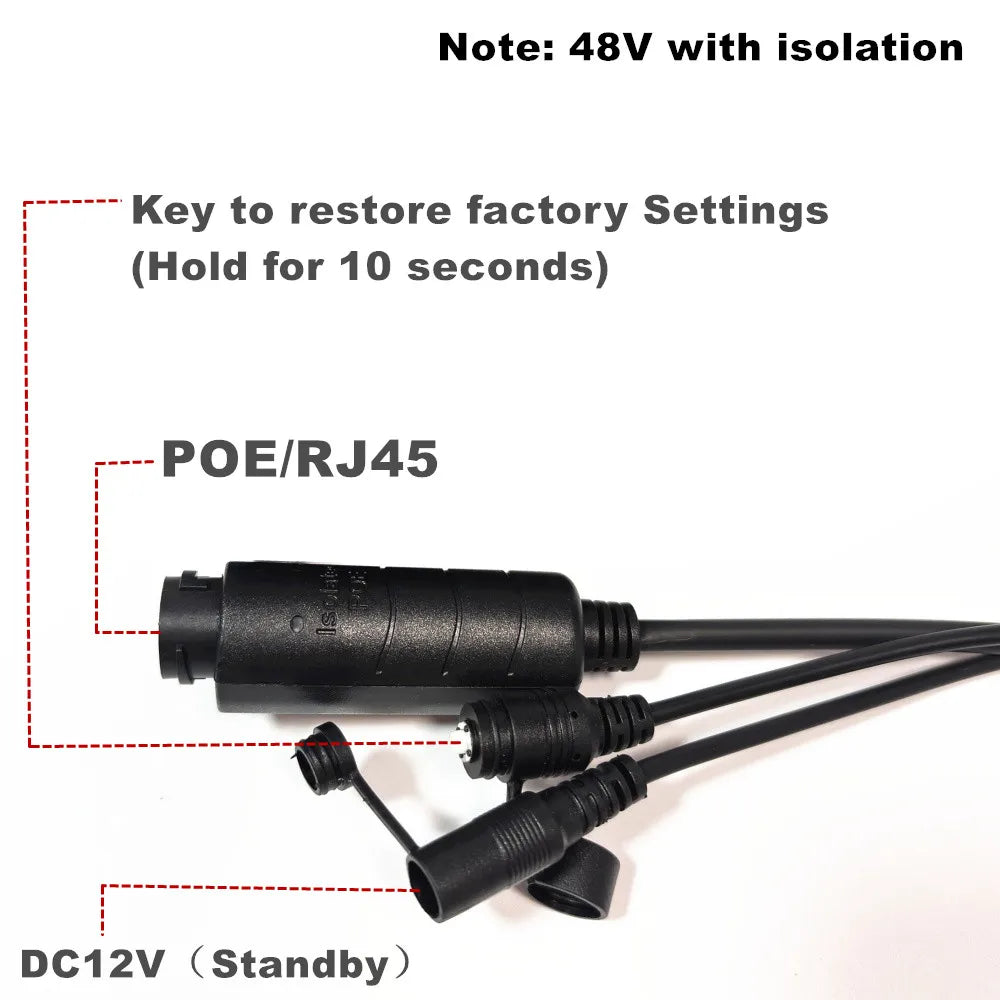

POE wire interface：

If you use a 10-meter extension cord, it may cause insufficient power supply to the camera, please replace the DC12V3A or higher power adapter,

Q1: Is it wifi camera?

Re: Yes, it is wireless ip camera with wifi antenna.

Q2: Does it support sd card?

Re: YES, it bulits a sd card slot,you can install a micro SD card to save records.

Q3 Can i watch the camera video from another place remotely? What is the app for phone?

Re: Yes, you can. The phone app named" CamHi". (User ID: admin; Password: admin)

Q4: Can i record the video into SD card or my computer hard disk or i have to use this camera with a recorder NVR?

Re: Yes, you can record video to your Micro sd card / PC hard disk, and you can also use it with a recorder NVR and record it into NVR hard disk. Both are OK!

Q5: Does it support ON VIF?

Re: Yes.

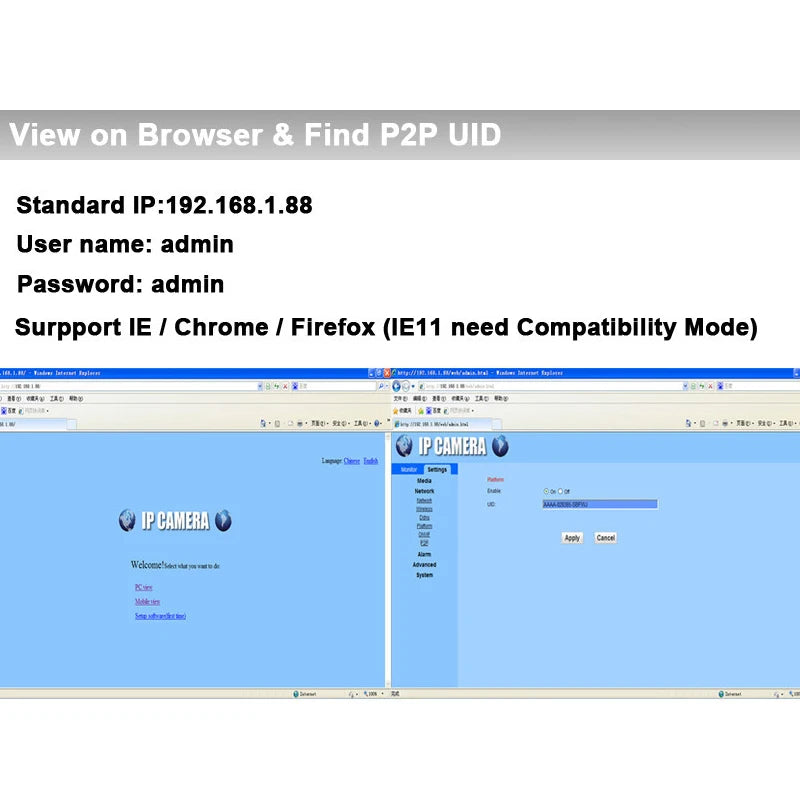

Q6: What browser access is supported?

Re：Support for Internet Explorer, other browsers can switch to IE compatibility mode can also be accessed, may remind you to download the plugin

Q7: Not a clear picture?

Re：Check whether it is the first stream. The first stream is the clearest

To check whether the focal length of the lens is correct, you can try to slowly rotate the lens, pay attention to loosen the small screws near the lens

Q8: How long is the power extension cord appropriate?

Re：The power extension cable used should not exceed 6 meters, and the extension cable of more than 6 meters is recommended to buy a power adapter above DC12V3A for power supply, otherwise it will lead to frequent restart of the power supply camera or no picture

Q9: The PC client software displays a message indicating that the password is incorrect or unavailable

Re: Please contact us for the latest version of the PC client software

Q10:The camera keeps rebooting or going offline

May be lower deficiency, is the wire used very long?

2MP Parameter(Disclaimer: This camera is real pixels, real frame rate! We reject fake interpolated pixels, fake frame rates!!)

2MP
operating system		Embedded LINUX
main processor		GK7201V200
image sensor		1/3”CMOS sensor
IRCUT		support
Compression standard
Video compression algorithm					Support H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline
Audio compression algorithm					G.726/G.711
Compressed transmission stream					32Kbps-6144bps, can self-defining, default 1280Kbps
Maximum image size			2MP(1920x1080)
definition			First stream: 2MP（1920x1080）
			Second stream:640x352
Video frame rate			10-25fps(60HZ)
Character overlay			Support OSD name, time and date information overlay
Image Settings			Brightness, contrast, saturation, exposure, up and down reversal, left and right mirror adjustable
Network function
Storage function	Support Maximum 128GB Micro SD card storage, support timed recording and alarm recording storage(Alarm recording duration of 15 seconds), support alarm upload cloud storage function (requires purchase of cloud storage package)
Motion detection	4 independent detection areas can be set (sensitivity 1-100 can be set)
Alarm linkage	Send pictures of the alarm to the designated email address; Upload alarm pictures and alarm recordings to the FTP server
Network Protocol	Support TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP
Access Protocol	Support ONVIF 2.4 protocol
Interface
Audio input	1CHinput, support MIC input
Audio output
network interface	10Base-T/100Base-TX Ethernet interface
	WiFi 802.11b/g/nWireless network interface
General specifications
Size
Temperature and humidity				0℃～+50℃10%～95%RH
Power Supply				DC12V 2A
Power consumption				1.5W

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

5MP Parameter(Disclaimer: This camera is real pixels, real frame rate! We reject fake interpolated pixels, fake frame rates!!)

5MP
operating system		Embedded LINUX
main processor		Ingenic T41NQ
image sensor		1/2.7”CMOS sensor
IRCUT		support
Compression standard
Video compression algorithm						Support H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline
Audio compression algorithm						G.711
Compressed transmission stream						32Kbps-6144bps, can self-defining, default 960Kbps
Maximum image size				5MP(2880x1620)
definition				First stream: 5MP(2880x1620)，4MP（2560x1440）
				Second stream: 800x600，640x480，800x480、640x352
Video frame rate				10-20fps
Character overlay				Support OSD name, time and date information overlay
Image Settings				Brightness, contrast, saturation, exposure, up and down reversal, left and right mirror adjustable
Network function
Storage function	Support Maximum 128GB Micro SD card storage, support timed recording and alarm recording storage(Alarm recording duration of 15 seconds), support alarm upload cloud server (requires purchase of cloud storage package)
Motion detection	4 independent detection areas can be set (sensitivity 1-100 can be set)
Alarm linkage	Send pictures of the alarm to the designated mailbox; Upload alarm pictures and alarm recordings to the FTP server; support alarm pictures and videos to TF card
Network Protocol	Support TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP
Access Protocol	Support ONVIF 2.4 protocol
Interface
Audio input			1CH input, support MIC input
Audio output			1CH output, support connecting headphones or amplifiers
network interface			10Base-T/100Base-TX Ethernet interface
			WiFi 802.11b/g/n Wireless network interface
General specifications
Size					(length, width）38x38
Temperature and humidity					0℃～+50℃10%～95%RH
Power Supply					DC12V 2A
Power consumption					1.5W
