Please check our Bundle carefully before purchasing.Purchase a single motherboard. We don't send CPU and memory. Please check carefully.

Differences between packages

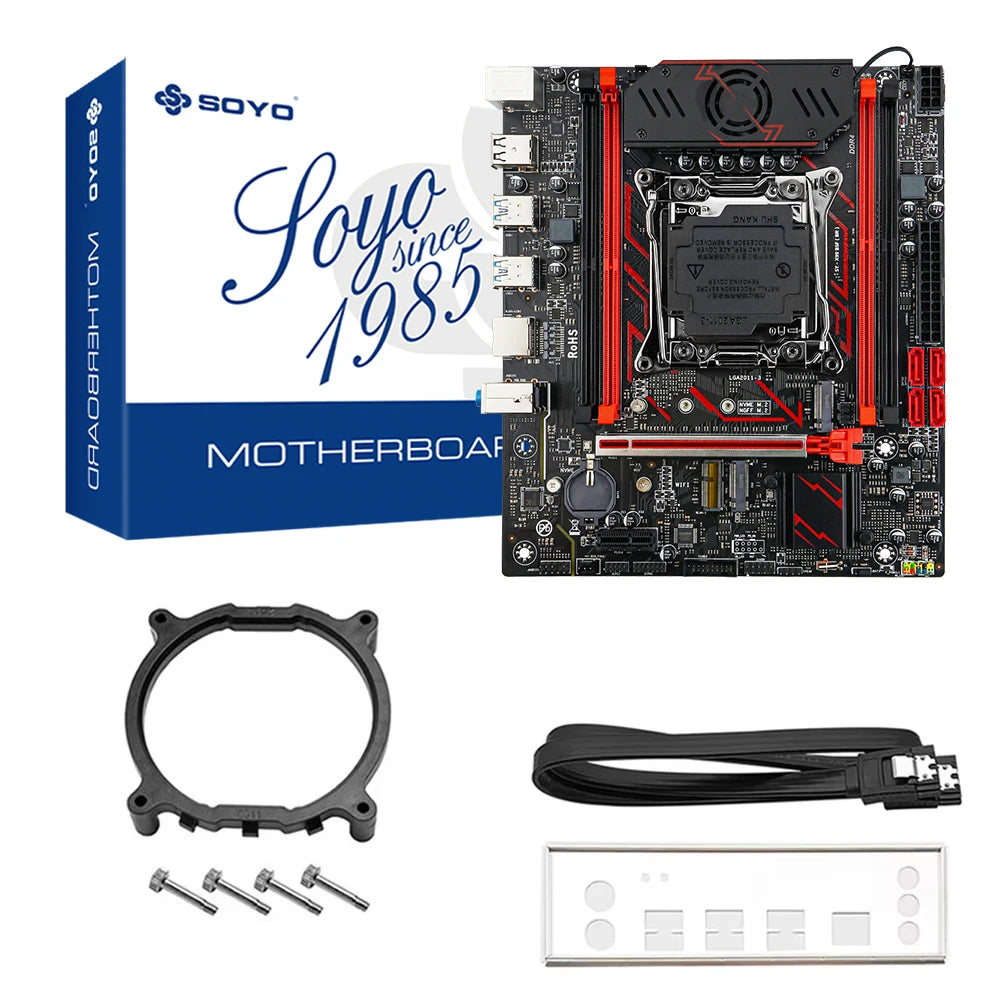

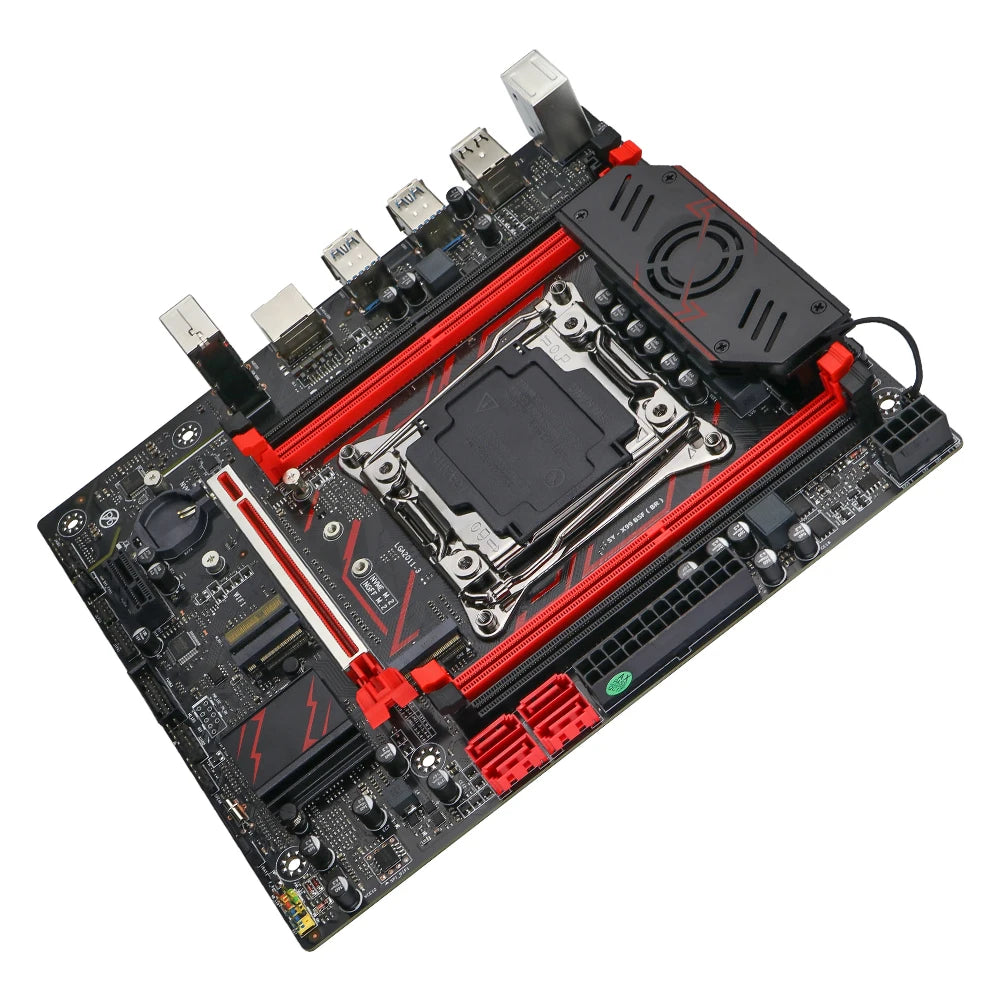

Motherboards: 1*SY-X99 C612 otherboard
Motherboard+CPU: 1*SY-X99 C612+1*E5 2682 V4 CPU

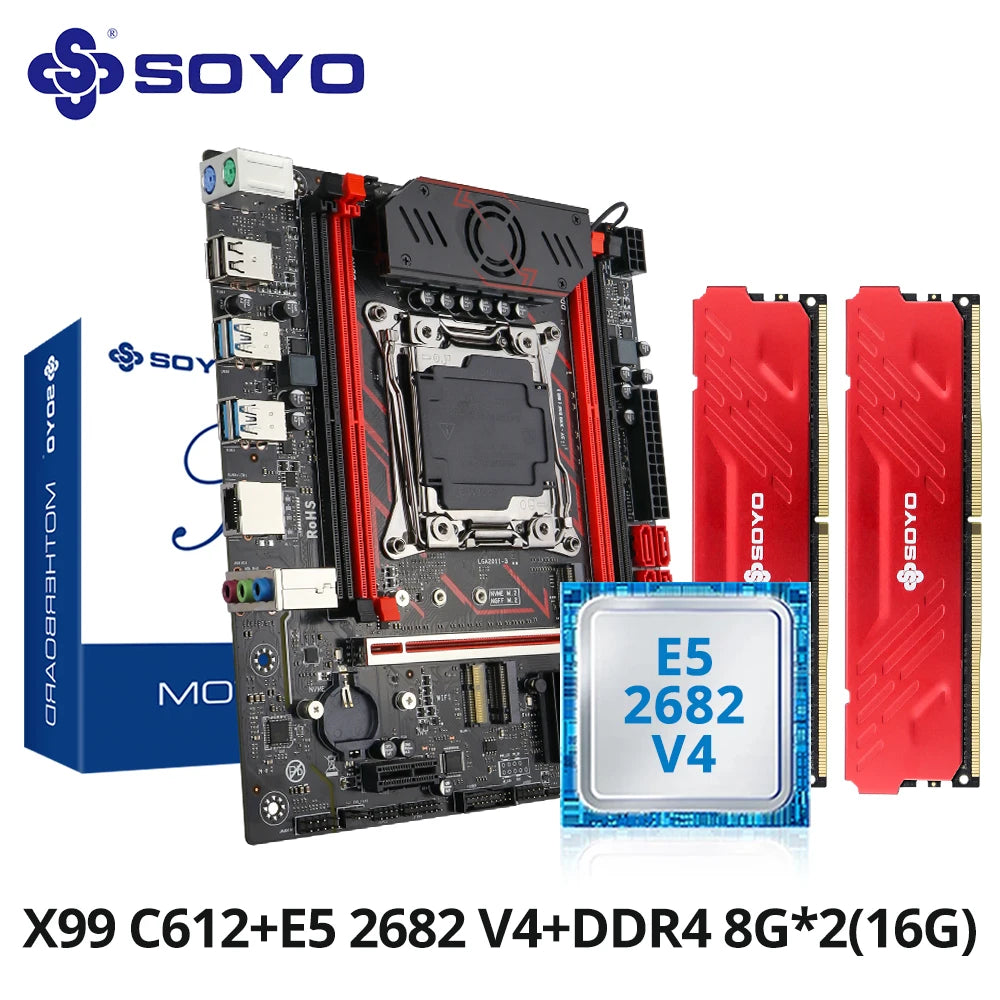

Motherboard+CPU+RAM: 1*SY-X99 C612+1*E5 2682 V4 CPU+2*DDR4 8G
Please confirm the differences between the packages before purchasing. If you mind, please do not place an order

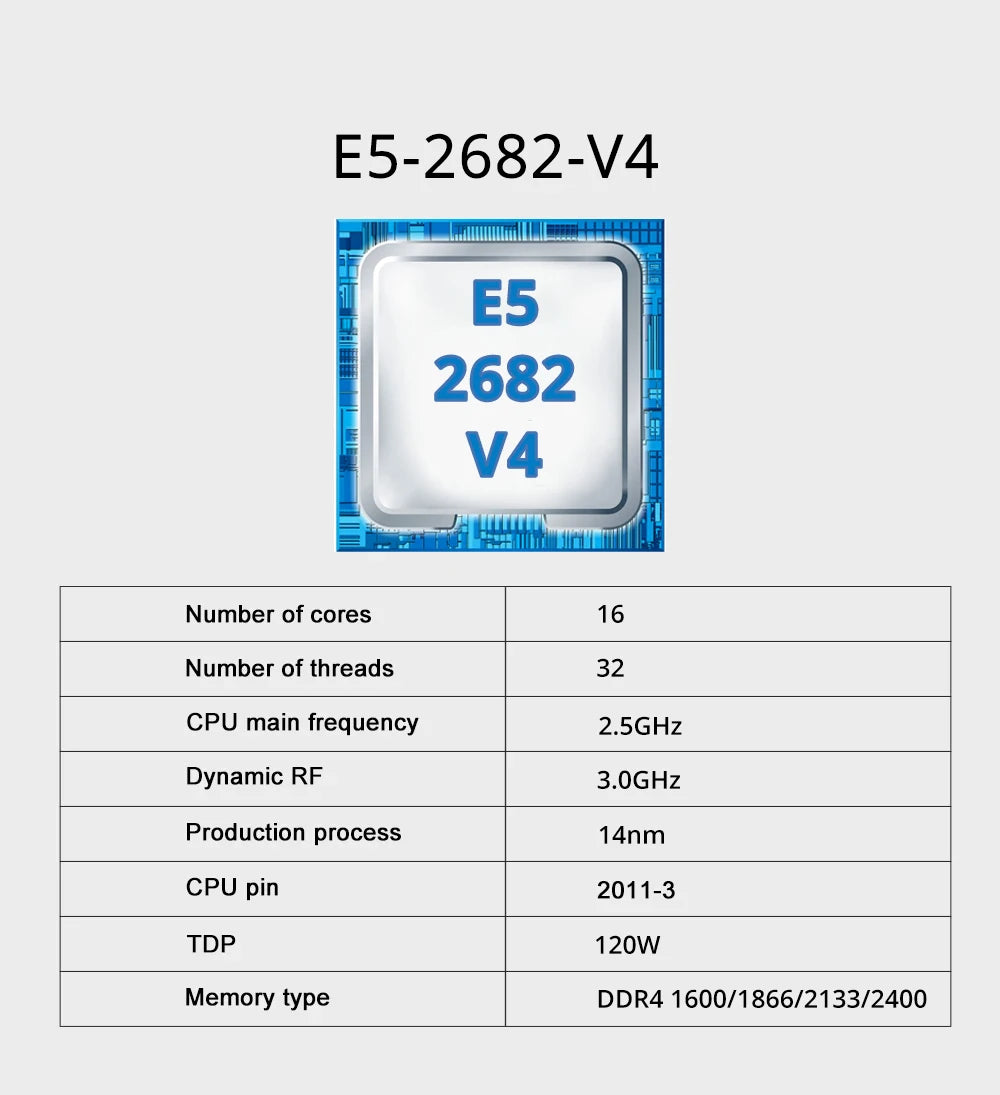

CPU:

Model: Intel Xeon
Model Number: E5 2682 V4
CPU Frequency: 2.5 GHz
Maximum Core Frequency: 3.0 GHz
Socket Type: LGA2011-3
Manufacturing Process: 14nm
Memory Type: DDR4 1600/1866/2133/2400
Number of CPU Cores: 16
Number of Threads: 32
L3 Cache (MB): 40MB
Power Consumption: 120W
The cpu will be final double tested before shipping
In this kit (motherboard+CPU+RAM), motherboard is brand new, CPU and RAM is used(not new). We fully combos testing before delivery. and make sure the whole set can works perfectly. Since CPU and RAM have used marks on it, please don't place order if you mind. (The old and new level of RAM+CPU cannot be controlled, and it is sent randomly.)

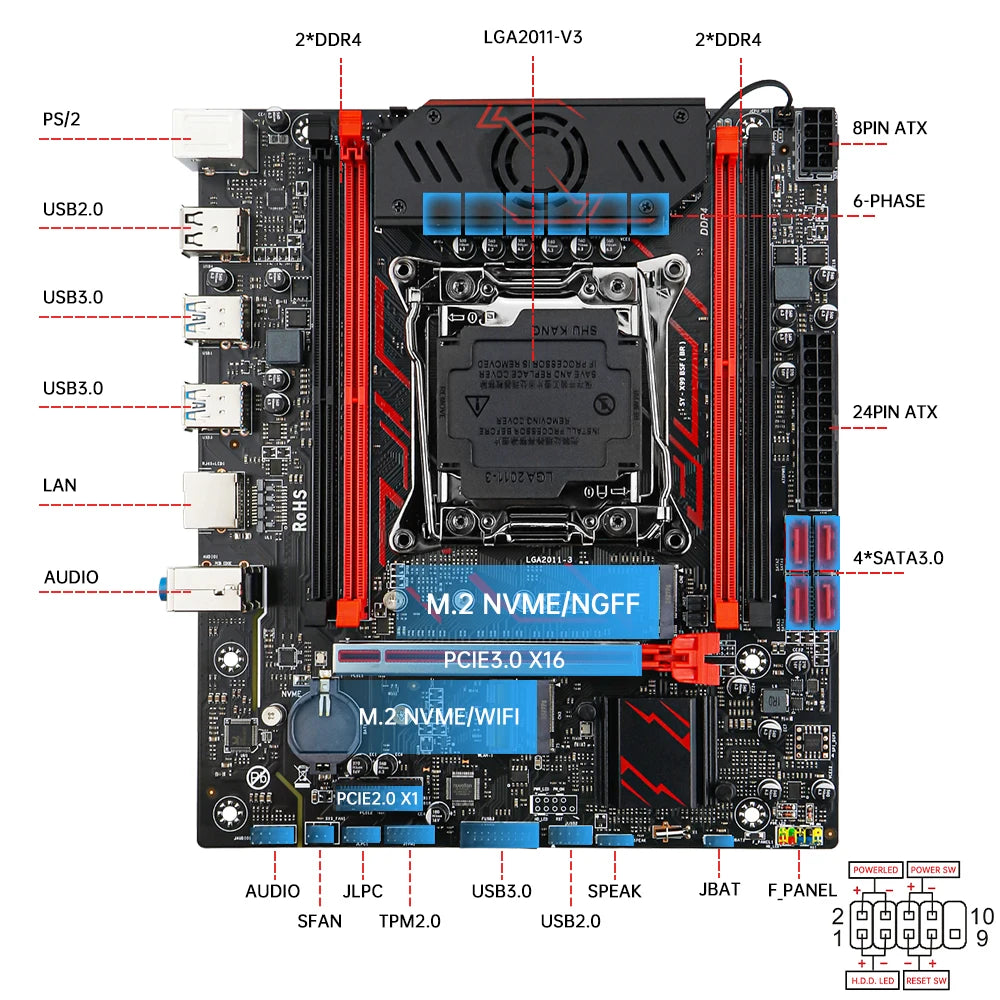

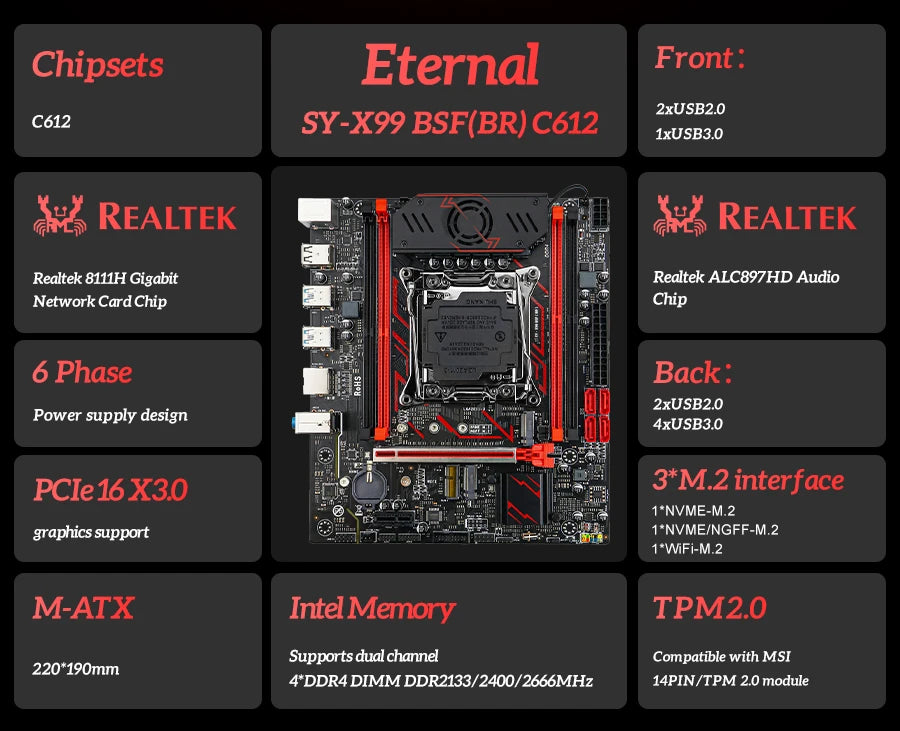

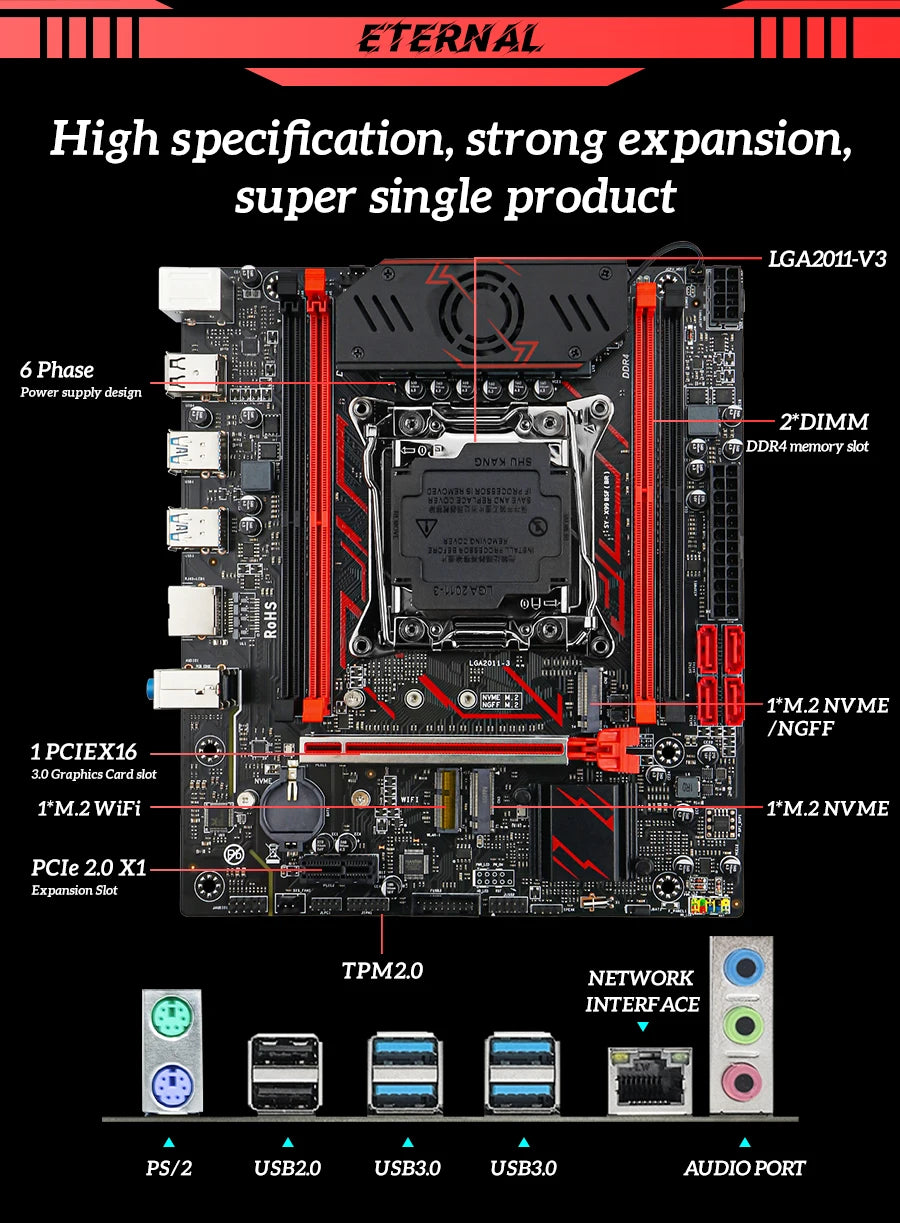

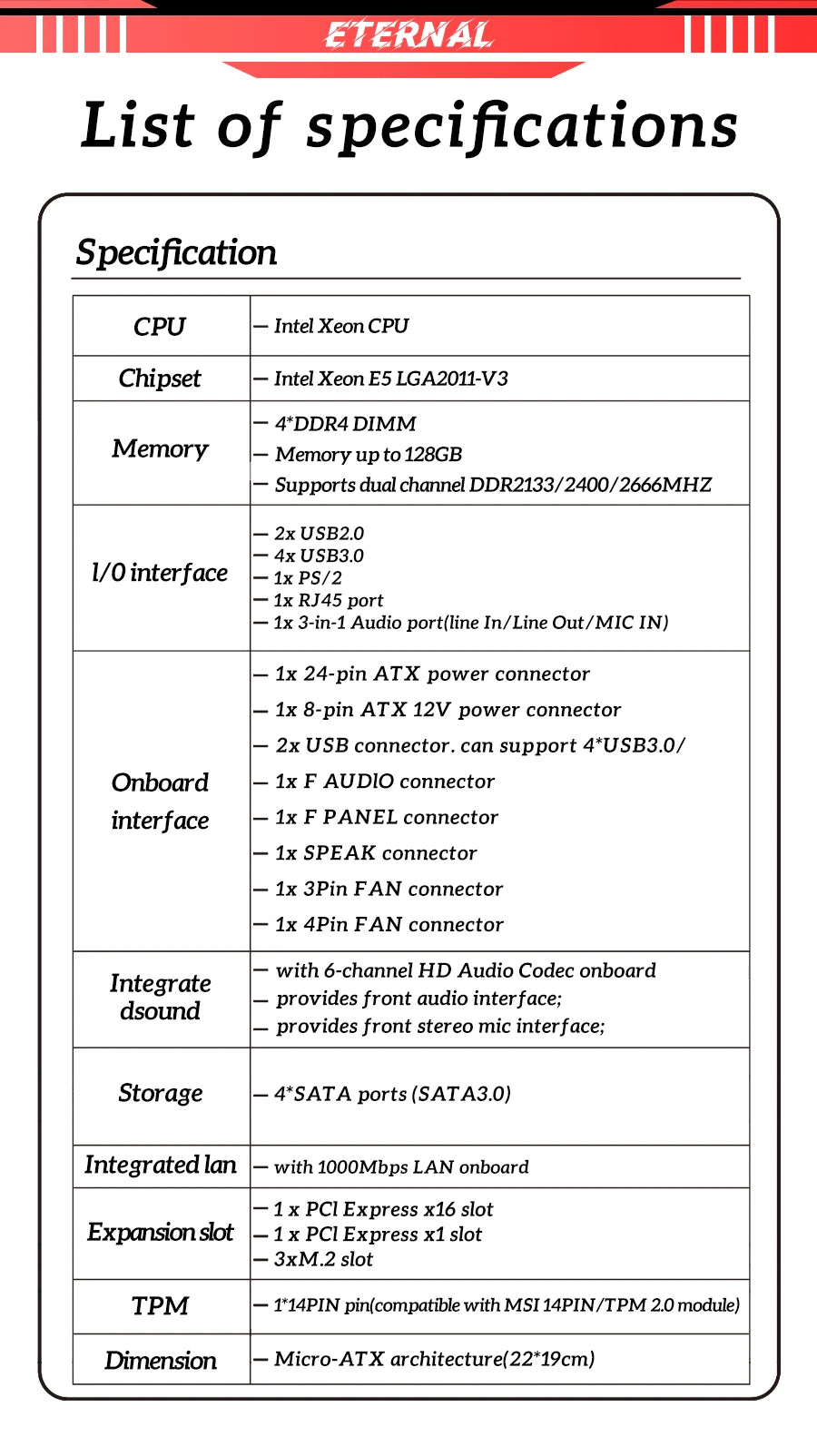

Specification:

Chipset:

Intel C612

CPU:

Intel Xeon E5 LGA 2011-3 socket processors

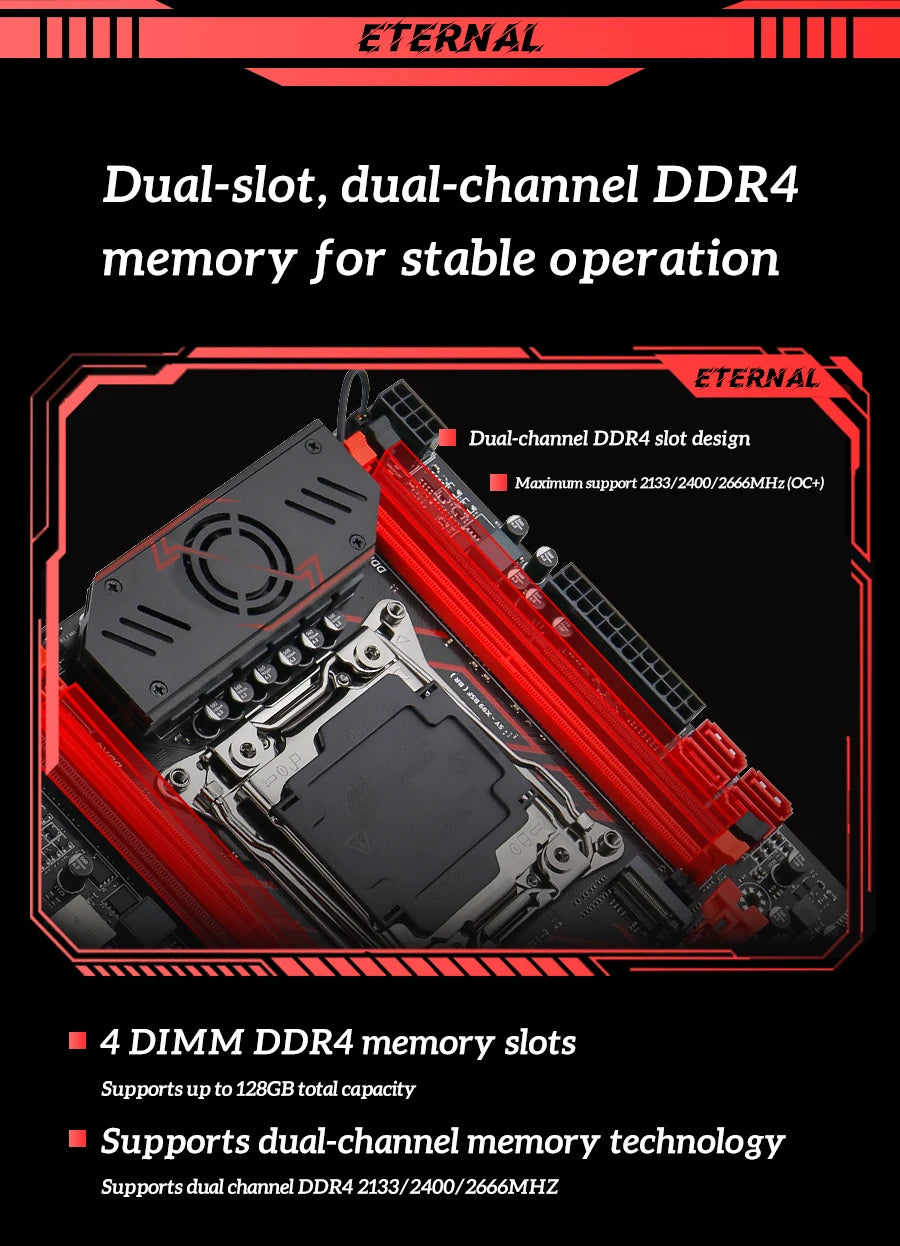

Memory:

4 x DDR4 DIMM slots
Supports 2133/2400MHz (Max), up to 128GB (32GB x 4)
Gray slots indicate primary channels

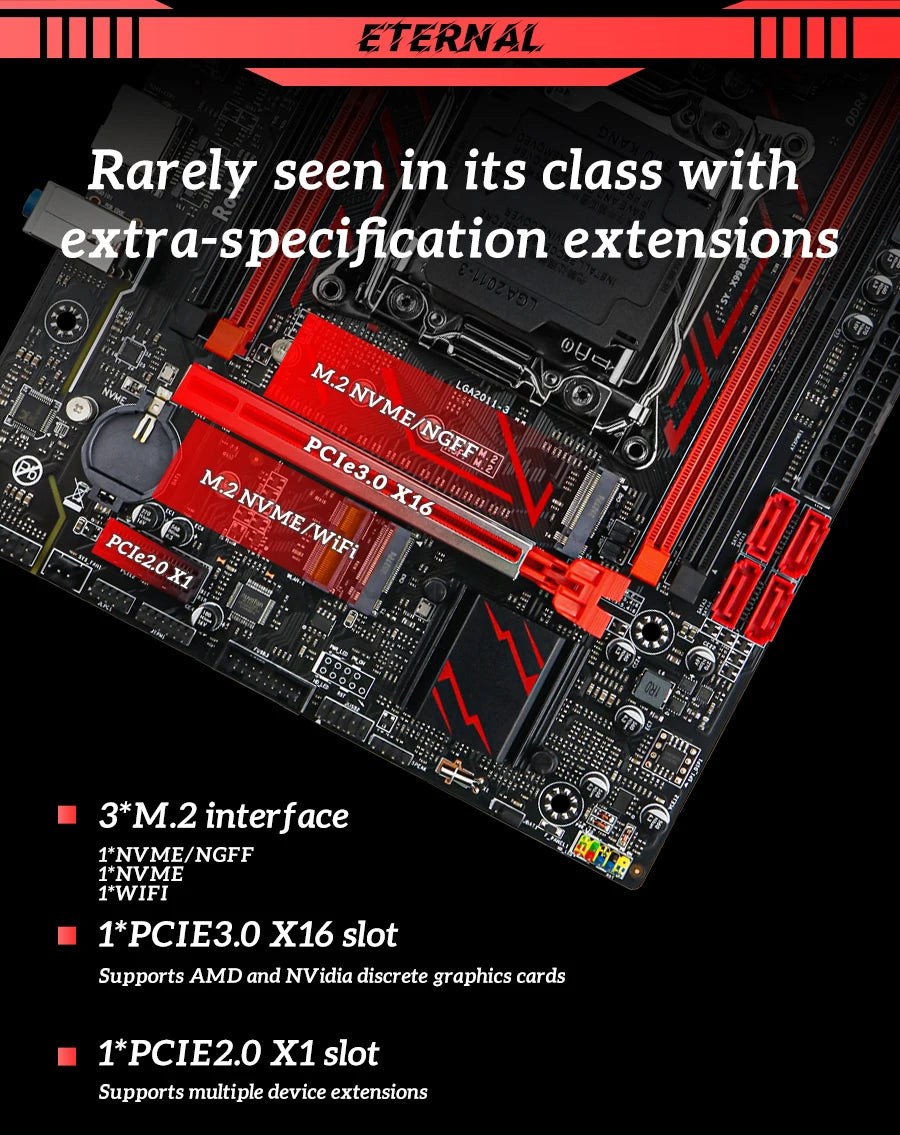

Storage:

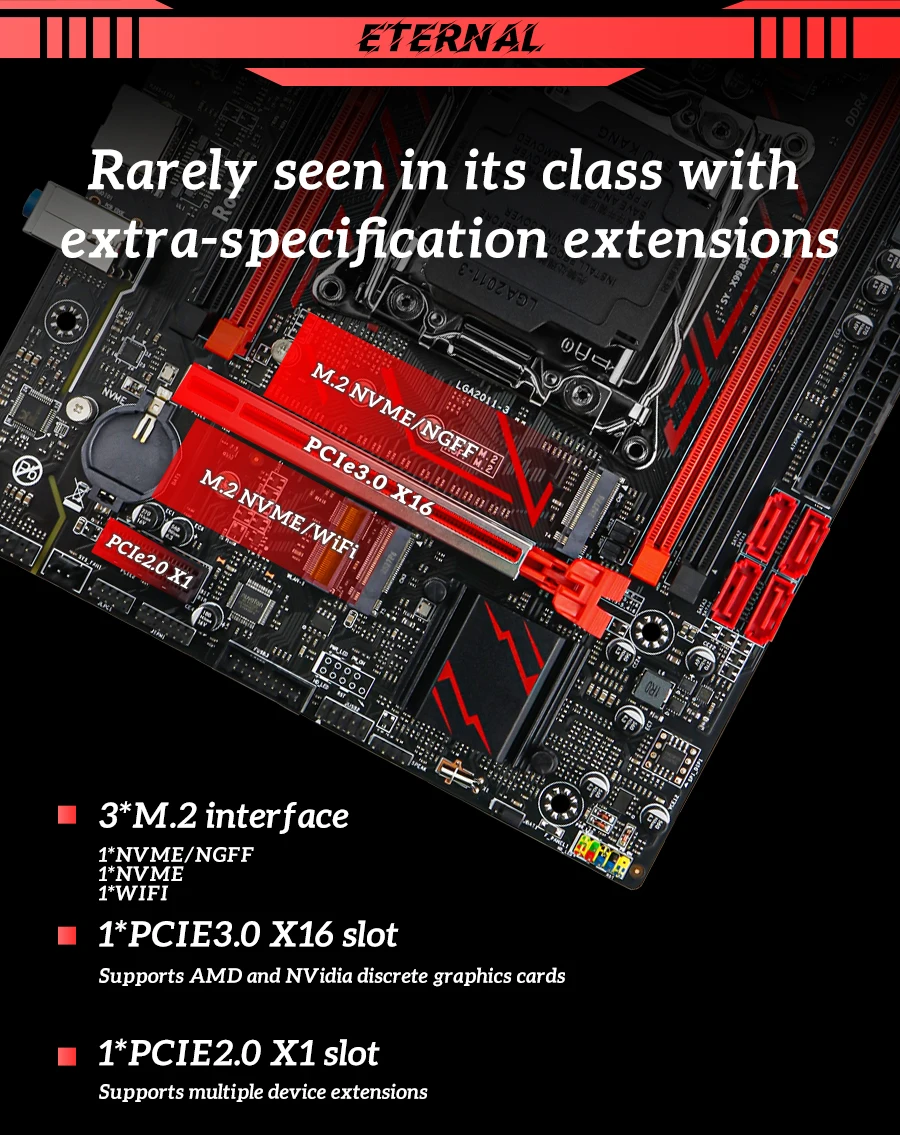

2 x M.2 slots:
Upper slot: NVMe protocol (PCIe 3.0 x4/SATA3.0)
Lower slot: NVMe protocol (PCIe 3.0 x4)
4 x SATA3.0 interfaces

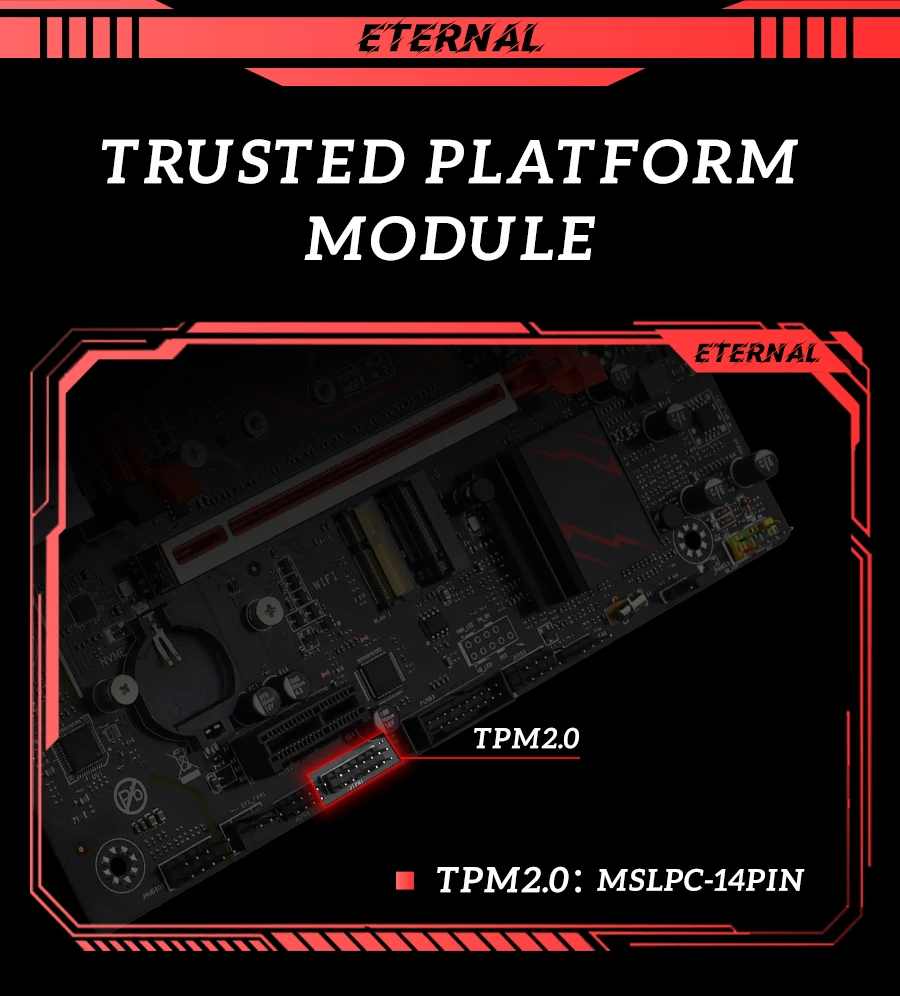

TPM

1*14PIN header (compatible with MSI 14PIN/TPM2.0 module)

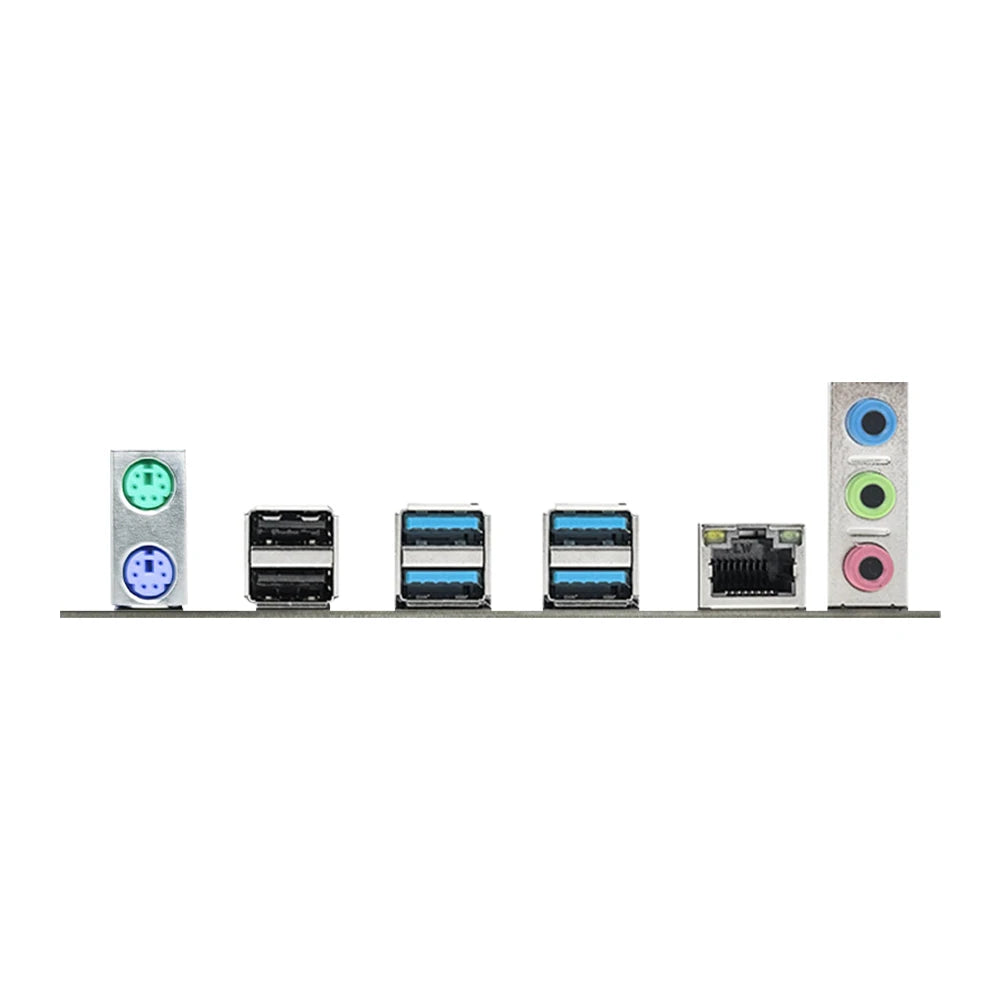

Networking:

1 x RJ45 port
LAN chip: Realtek RTL8111H Gigabit Ethernet

PS/2 Ports:

1 x PS/2 Keyboard port
1 x PS/2 Mouse port

Audio:

Rear I/O: 1 x Line Out, 1 x MIC In, 1 x Line In
Internal header: 1 x Front Audio header
Audio chip: Realtek ALC897 HD Audio

USB Ports:

Rear I/O: 2 x USB 2.0, 4 x USB 3.0
Internal headers:
1 x USB 2.0 header (expandable to 2 ports)
1 x USB 3.0 header (expandable to 2 ports)

PCIe Slots:

PCIe1: PCIe x16 3.0 slot (from CPU)
PCIe2: PCIe x1 2.0 slot (from PCH)

Functional Headers:

1 x FPANEL (front panel)
1 x 4-pin CPU fan
1 x 3-pin system fan
1 x JBAT (CMOS clear)
1 x JLPC (LPC debug)
1 x SPEAK (system speaker)

Power Input:

24-pin ATX + 8-pin EPS connectors

Dimensions:

220 x 190mm (4-layer PCB)

Note:

(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).

(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.

(3)For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can't, we don't recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.

(4) Install the memory. All RAM needs to be installed in slot #1 and slot #2 (Black slots) first. The motherboard's Red RAM slots (#3/#4) will not work alone. The memory needs to be inserted into the same color slots

(5) For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110°-120°)This is normal. The actual temperature can be tested with a body thermometer.

# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!
